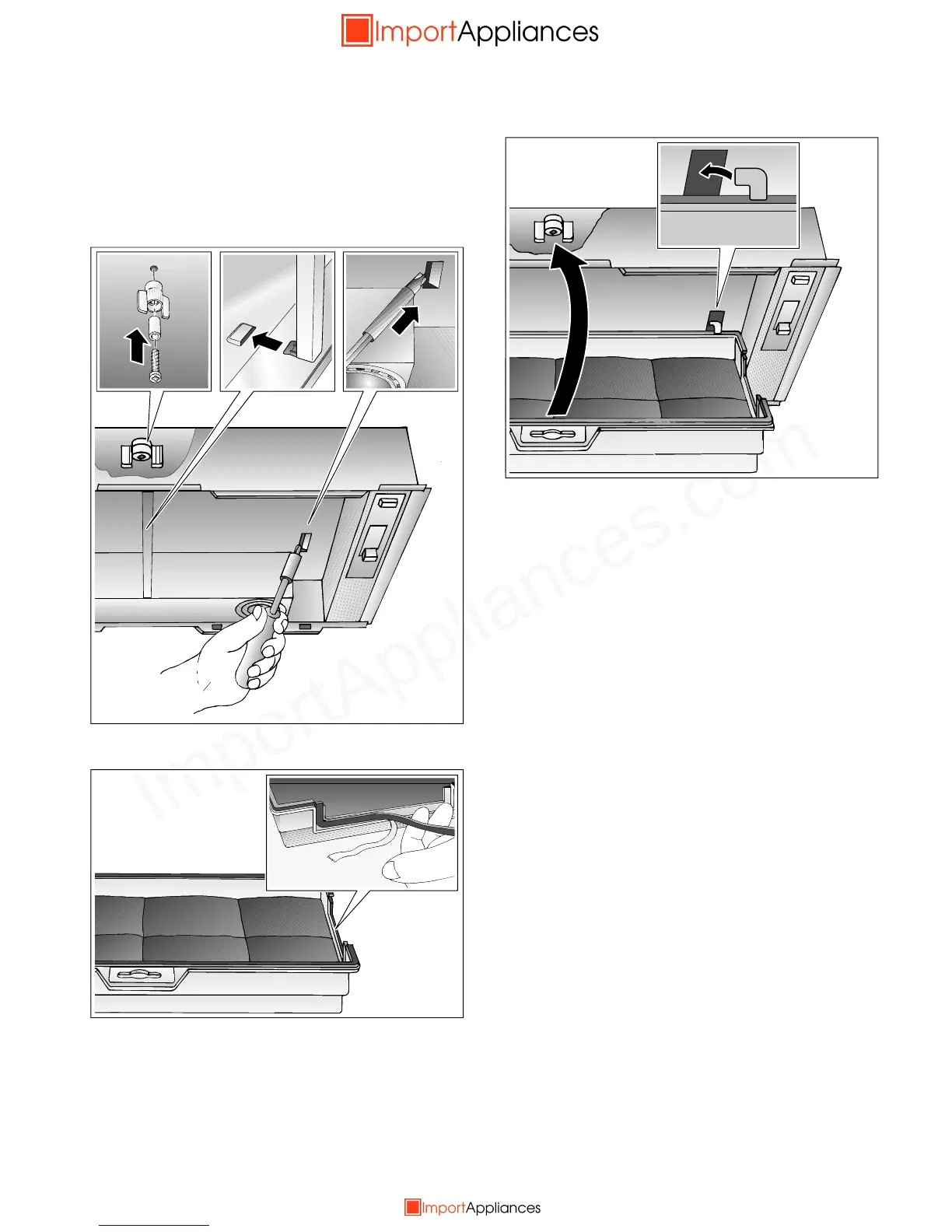

Fitting the activated charcoal filter
1. Remove the metal grease filter.
2. Insert the screw through the wing nut and the sleeve.
Screw it into the centre of the intermediate floor.
Note: The screw, wing nut and sleeve are included
with the activated charcoal filter.
3. If the appliance has a spacer rail, remove this. Use a
screwdriver to push the two tabs on the intermediate
floor inwards.
4. Mask the activated charcoal filter using the enclosed
sealing strips.
5. Insert the activated charcoal filter at the rear, fold it
up and lock it in the centre using the wing nut. If the
appliance has a spacer rail, reinsert this.
6. Reinsert the metal grease filter.
Removing the activated charcoal filter
1. Remove the metal grease filter.
2. If the appliance has a spacer rail, remove this.
Unlock the activated charcoal filter with the wing nut
in the centre and remove it.
3. Replace the activated carbon filter and lock it in
place using the wing nut.
4. If the appliance has a spacer rail, reinsert this.
Reinsert the metal grease filter.
