en Installation instructions
18

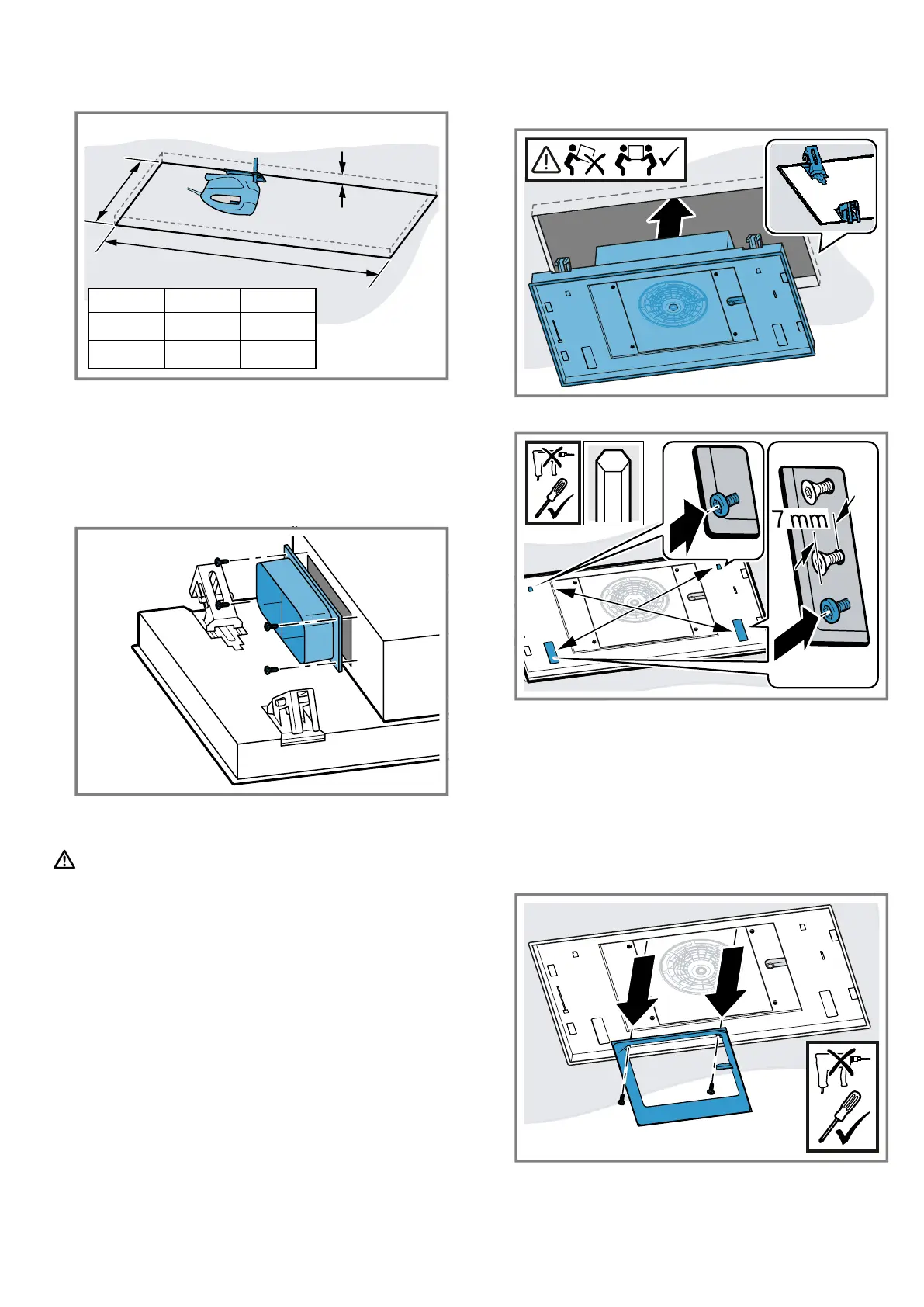

3. Saw a cut-out into the ceiling.
x
y
z
x y z
487
±1
888
±1
16 – 50
487
±1
1188
±1
16 – 50
4. Remove any shavings.
Preparing the appliance
1. Remove the grease filters.
To avoid causing damage, do not bend the grease
filters.
2. Screw the flat duct connection onto the fan group.
Installing the appliance
WARNING‒Risk of injury!
¡ Components inside the appliance may have sharp
edges.
▶
Wear protective gloves.
¡ The appliance is heavy.
▶
To move the appliance, twopeople are required.
▶
Use only suitable tools and equipment.
1. Insert the appliance into the cut-out until you hear
the mounting brackets engage.
2. Carefully screw in diagonally opposite screws.
Tighten the screws one at a time so that the appli-
ance is not wedged in the cut-out.
3. Note:To ensure that the appliance is not damaged,
do not overtighten the screws.
Carefully tighten screws in succession until the ap-
pliance is flush-mounted on the ceiling.
Connecting the appliance
1. Undo the screws on the top frame assembly using a
screwdriver and remove the top frame assembly.
