en Installation instructions
20

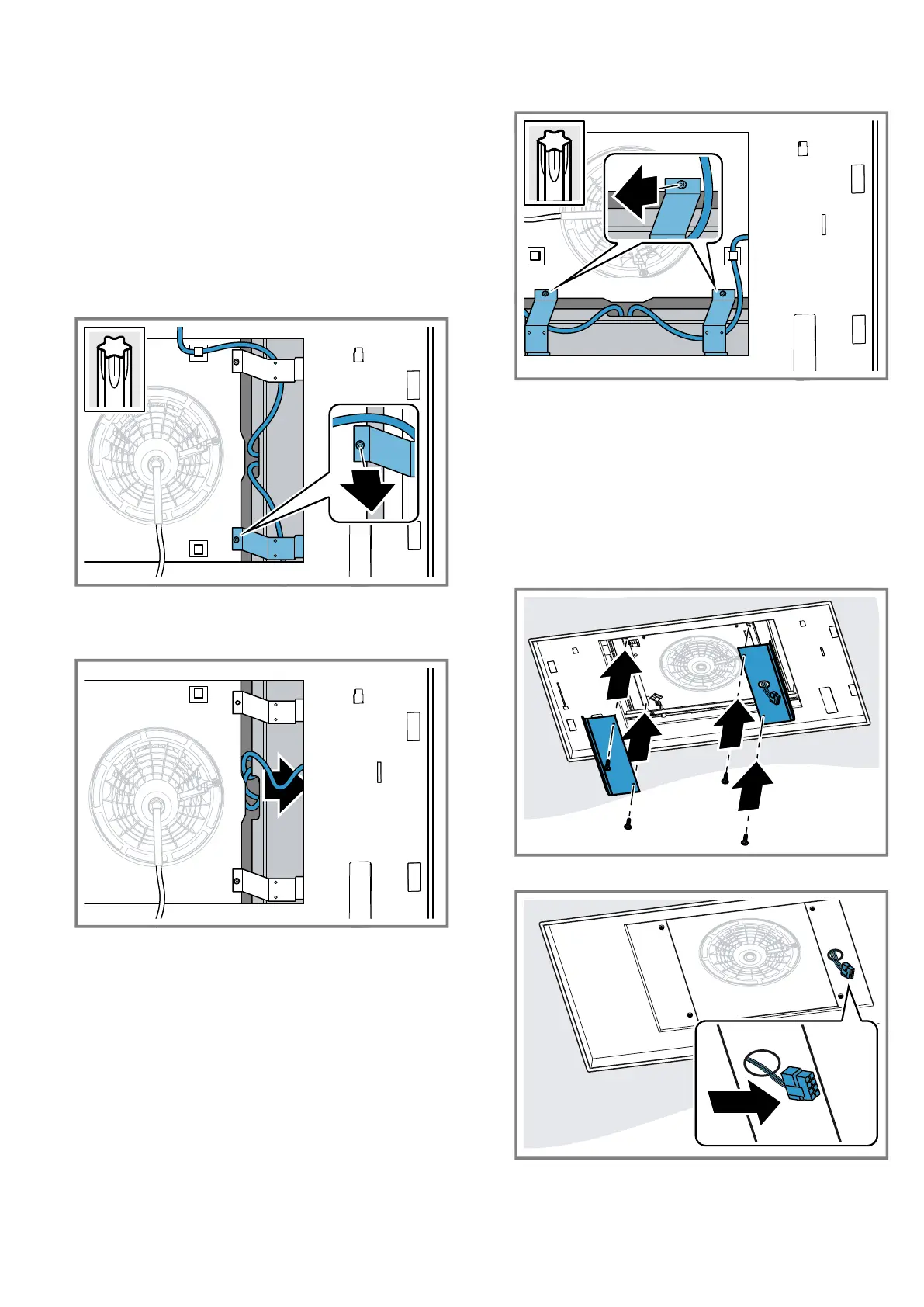

Turning the air outlet to the back
1. Starting with the delivery condition, turn the fan box
clockwise so that the air outlet is pointing to the
back.
2. Insert the extension cable.
3. Hook the cable into the cable guides 1 and 2.
Turning the air outlet to the front
1. Starting with the delivery condition, turn the fan box
anti-clockwise so that the air outlet is pointing to the
front.
2. Undo the screw on the metal hook.
3. Pull the cable through behind the metal hook and
hook it in the cable guides.
4. Store the remaining cable in the gap.
5. Tighten the screw on the metal hook so that it is
firmly in place.
Turning the air outlet clockwise
1. Ausgehend vom Auslieferungszustand, den Lüfter-
kasten im Uhrzeigersinn drehen, sodass der
Luftauslass nach rechts zeigt.
2. Undo the screw on the metal hook.
3. Das Kabel durch den Metallhaken ziehen.
4. Das Kabel in die Kabelführung 4 einhängen.
5. Tighten the screw on the metal hook so that it is
firmly in place.
Finishing connecting the appliance
1. Guide the cable through the opening in the side
cover.
2. Insert the side covers and screw them firmly in
place.
3. Connect the cable.
