© Siemens plc 1999 | G85139-H1731-U400-D2 7
JP 305 connects
PI- to 0V
Earth
connection
JP 303
Jumpers for
PI input type
Default = V
JP 302
Note: Jumper in 'V' position = voltage input (default)
Jumper in 'I' position = current input
V
I
JP 304 connects
AIN- to 0V
JP 301
Jumpers for
Analogue input type
Default = V
JP 300
V
I
Mains
connection
Control cable
connector
(PL800)
OPm2
connector
(SK200)
LED
(green)
LED
(yellow)
Control
Potentiometer
(R314)

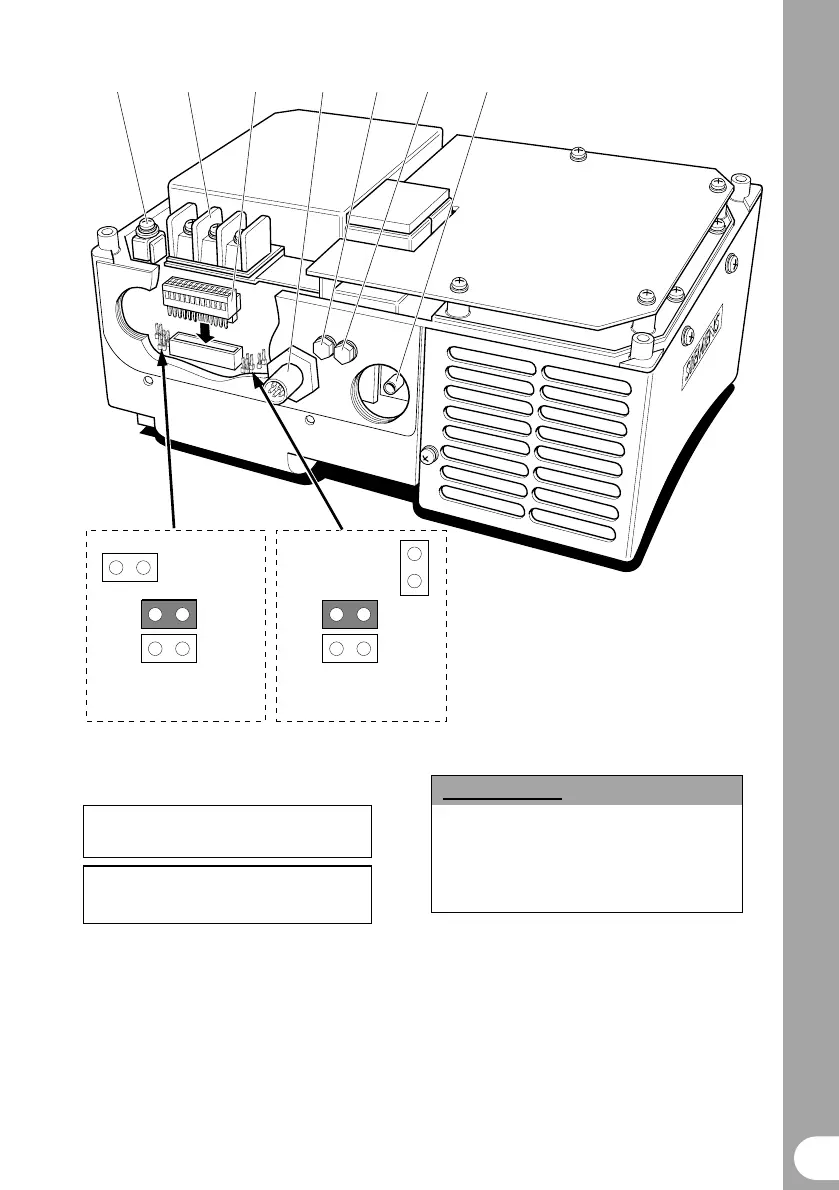

Figure 2 Electrical Connection (CS B)
IMPORTANT
Ensure that the following tightening torques are used:
Access cover retaining screws 4.0Nm
Gland hole covers: 1.0Nm
Mains connector screws 1.0Nm
Earth Connection 1.5Nm
Check that the supply voltage is correct for the
inverter used by referring to the rating label.
Cable Glands (Case Size B) PG21(Mains)
PG16(Signal)
