Siemens Milltronics BW500/L - Connections; Typical Ladder Logic

Batching
10.1 Connections
BW500 and BW500/L
122 Operating Instructions, 12/2016, A5E33482052-AD
10.1
Connections
10.1.1

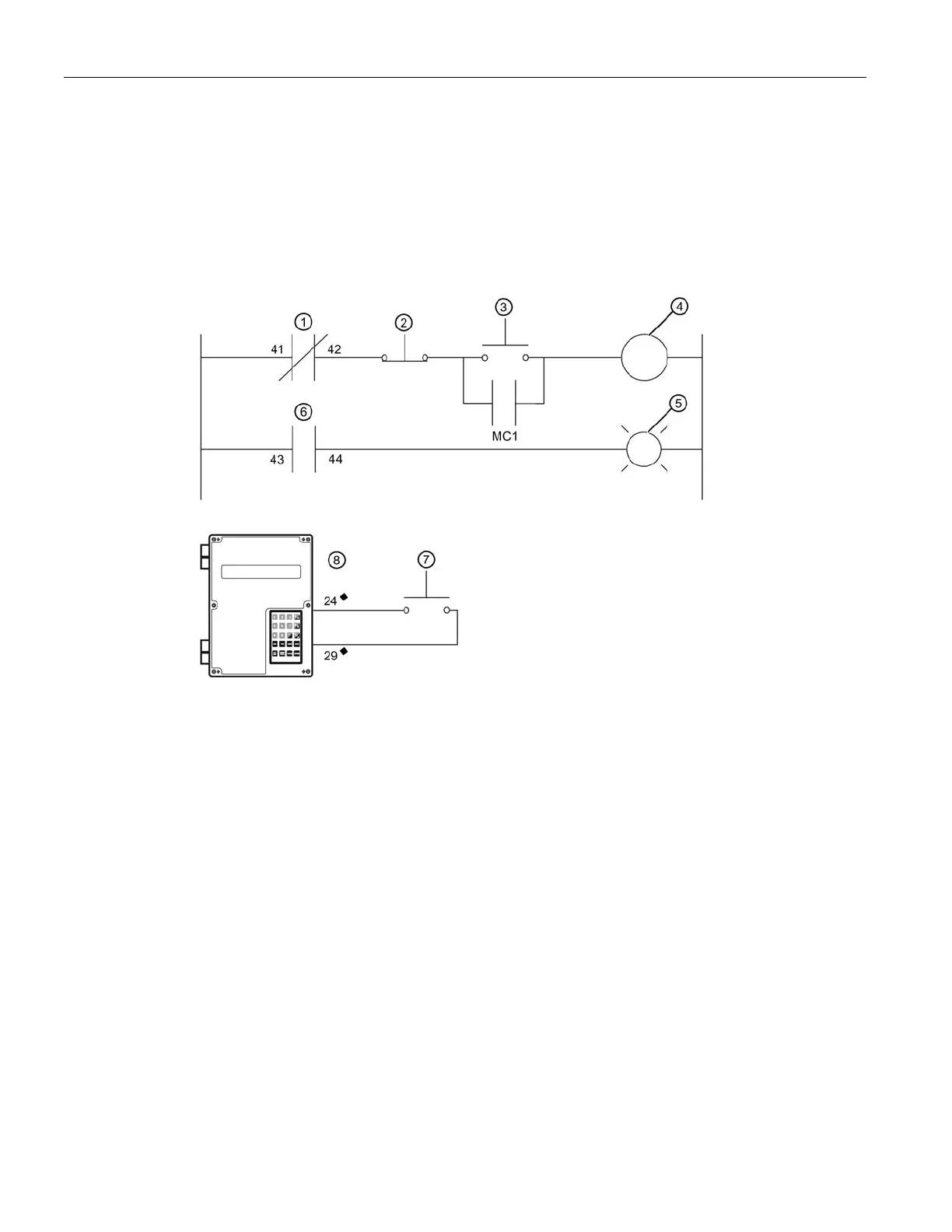

Typical Ladder Logic
*
Typical relay assignment. Relays 1-5 are available for batch setpoint or pre-warm alarm func-
tion.
♦
Typical auxiliary input assignment. Inputs 1- 5 are available for batch reset.
①
BW500 / RL1* batch stop
②
Stop
③
Start
④
Motor contactor / MC1
⑤
Alarm
⑥
BW500 / RL2* pre-warm
⑦
Batch reset
⑧
BW500/ aux 1
