Siemens Milltronics BW500/L - P638 External Totalizer Resolution

Parameters
12.9 Totalization (P619 - P648)
BW500 and BW500/L
Operating Instructions, 12/2016, A5E33482052-AD
181

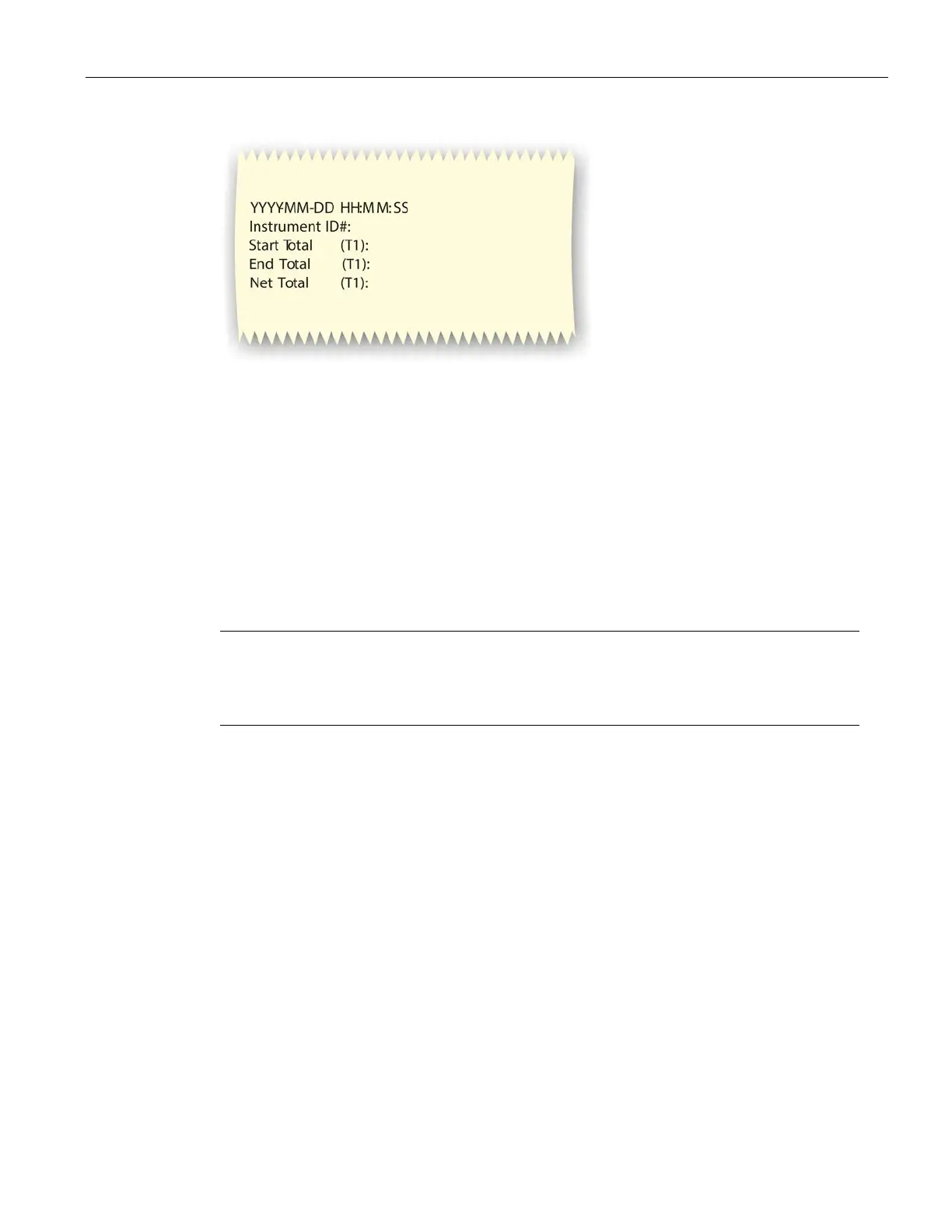

Entry:
0 = off, verification totalizer disabled
f
1 = do not total, verification totalizer is enabled, but main totalizers
1)
are disabled
2 = add total, verification totalizer is enabled as well as main totalizers
1)
1)
Main totalizers consist of internal totalizers 1 and 2, and external totalizers 1 and 2.
12.9.7
P638 External Totalizer Resolution
Note
•
If the resolution selected would cause the totalizer to lag behind the count at 100% of
design rate, the next possible resolution is automatically entered.
•
External Totalizer output frequency must not exceed 13.33 Hz at 150% of design rate.
This parameter sets the resolution of the selected external totalizer.
Totalizers are:
P638-01, external totalizer 1 (T1), terminals 52/53
P638-02, external totalizer 2 (T2), terminals 55/56
Entry:
1 = 0.001 (one thousandth)
2 = 0.01 (one hundredth)
3 = 0.1 (one tenth)
4 = 1 (unit)
f
5 = 10 (x ten)
6 = 100 (x hundred)
7 = 1000 (x thousand)
