Siemens OpenStage 15 Administration Manual

Startup
A31003-S2000-M102-2-76A9, 28/05/2009
2-14 OpenScape Voice - OpenStage Family, Administration Manual
inbetriebnahme.fm
Quick Start
2.3.9 Registering At Asterisk
For registration at the Asterisk SIP server, a SIP user ID and passwort must be provided by the
phone. The following procedure describes the configuration using the web interface (see Sec-
tion 2.3.1, “Access the Web Interface (WBM)”; if the web interface is not applicable, please refer
to Section 3.4.6, “Authenticated Registration”) for configuration via the local menu.

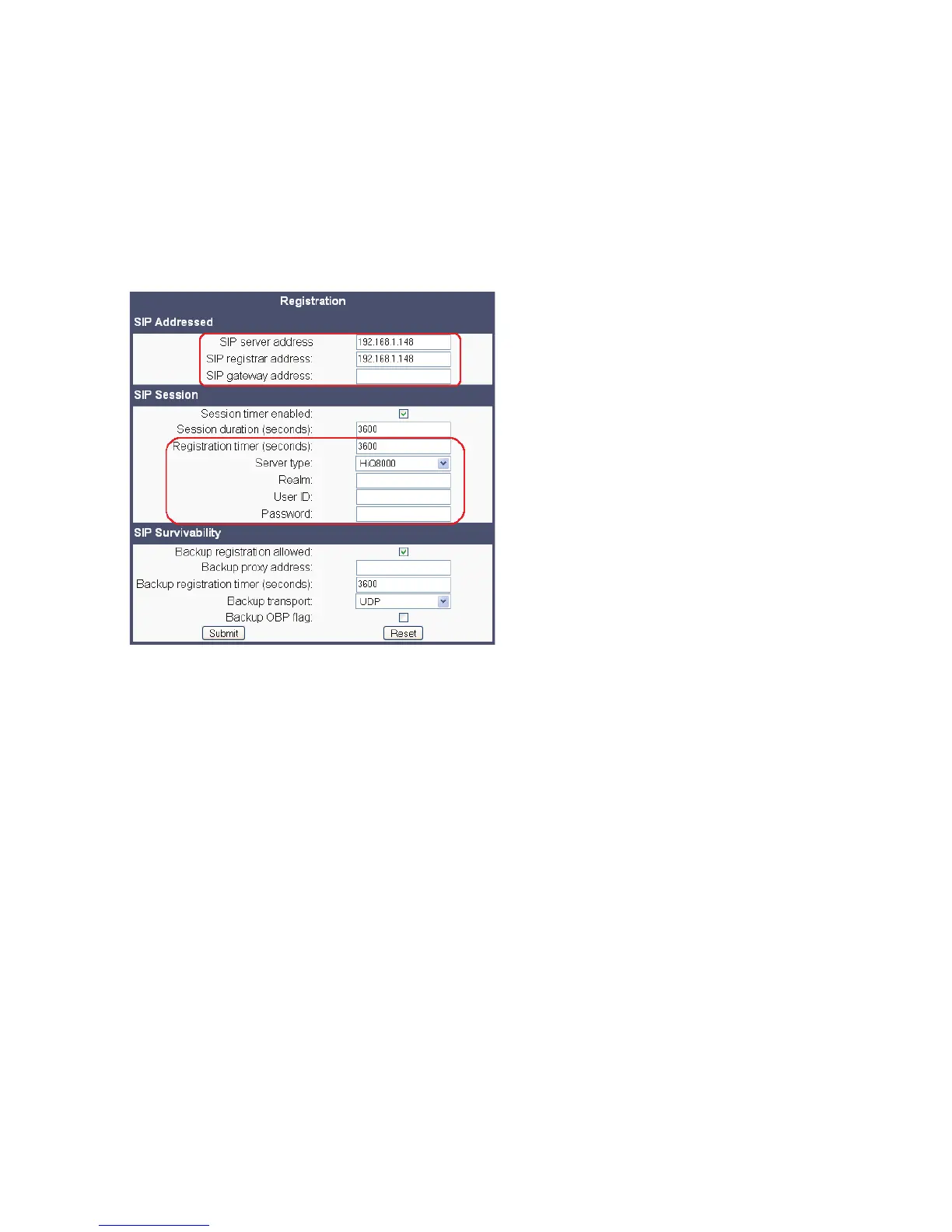

1. In the administration menu, select System > Registration. The Registration dialog opens.
2. Make sure that SIP server address and SIP registrar address contain the IP address of
your Asterisk server. If not provided by DHCP or a provisioning service, enter the appropri-
ate values. If the phone is to register with a gateway, enter the appropriate SIP Gateway
address.
3. In the Server type field, select "other".
4. In Realm, enter the SIP realm the targeted user/password combination refers to.
5. In the User ID and Password fields, enter the user name/password combination for the
phone.

Siemens OpenStage 15 Specifications

General

Type	IP Phone
Connectivity	Ethernet
Power over Ethernet (PoE)	Yes
Speakerphone	Yes
Keys	Fixed function keys
Headset Port	Yes
Protocols	SIP
Display	Monochrome display
Audio	G.711, G.729
Power Supply	PoE or external power adapter
