[dw_lwl_1k_conv_jumper_sn, 1, --_--]

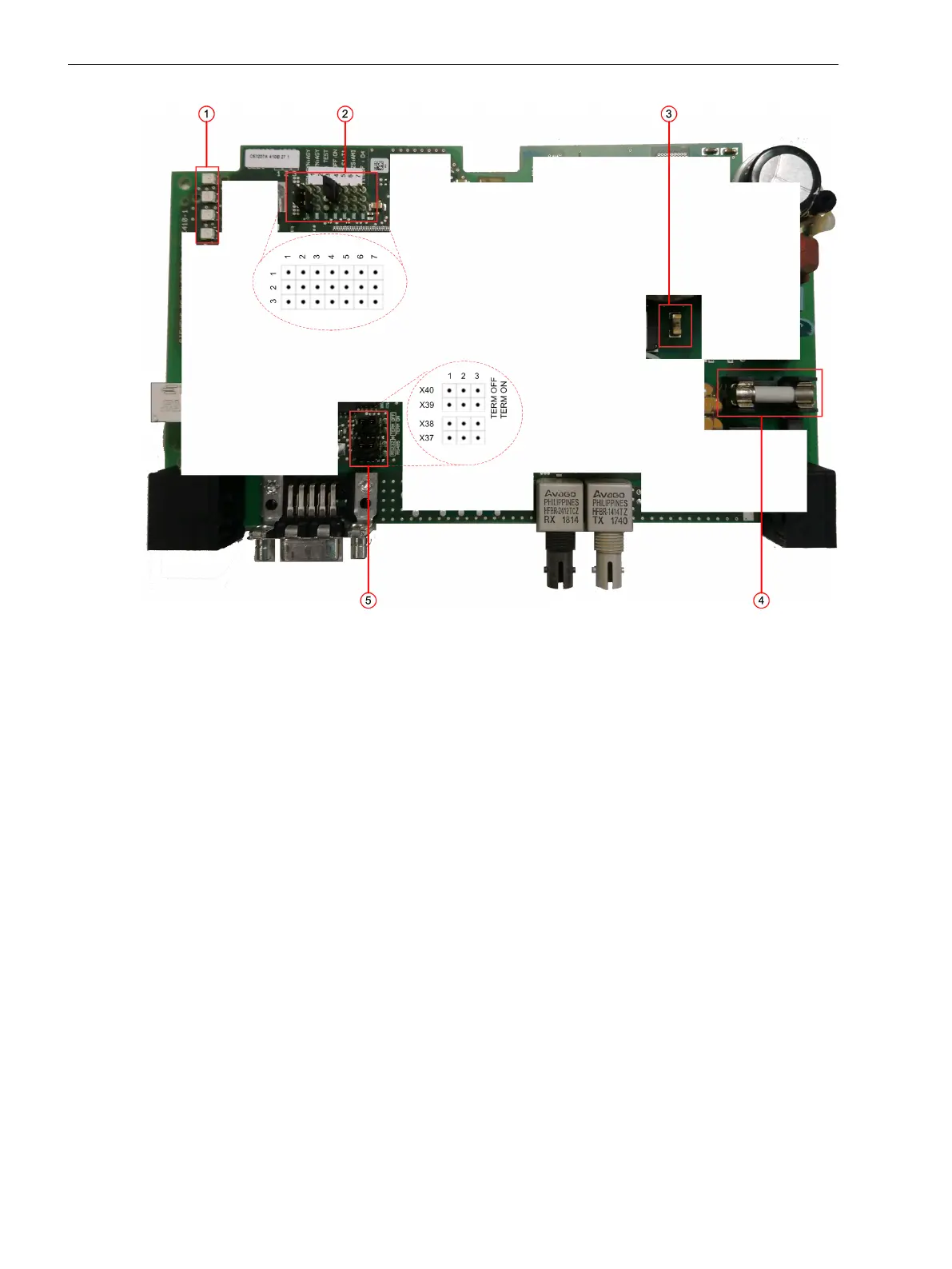

Figure 2-2
Location of the Components
(1) 4 x LED
(2) Jumpers 1 to 7
(3) Fuse F2 (soldered in place)
(4) Fuse F1 (replaceable)
(5) Jumpers X37 to X40
²
Connect the protective conductor inside the fiber-optic converter to the enclosure cover.
²
Close the housing with the cover.
²
Screw the enclosure cover tightly back in place.
²
Connect all disconnected lines to the device again.
²
Snap the fiber-optic converter onto the DIN rail.
²
Lock the fastening.
²
Switch on the auxiliary voltage again.
Device Structure
2.2 Device Connections
18 Accessories, RS232 Optical Fiber Converter 7XV5652-0CA00, Manual
C53000-G9050-C606-1, Edition 03.2020
