Description of the device
2.1 Product overview
SCALANCE XB-200
12 Operating Instructions, 09/2015, C79000-G8976-C359-03
● Industrial Ethernet protocol: PROFINET
● Base bridge mode: 802.1D transparent bridge
● Redundancy mechanism: Ring redundancy
● Trust mode: Trust COS

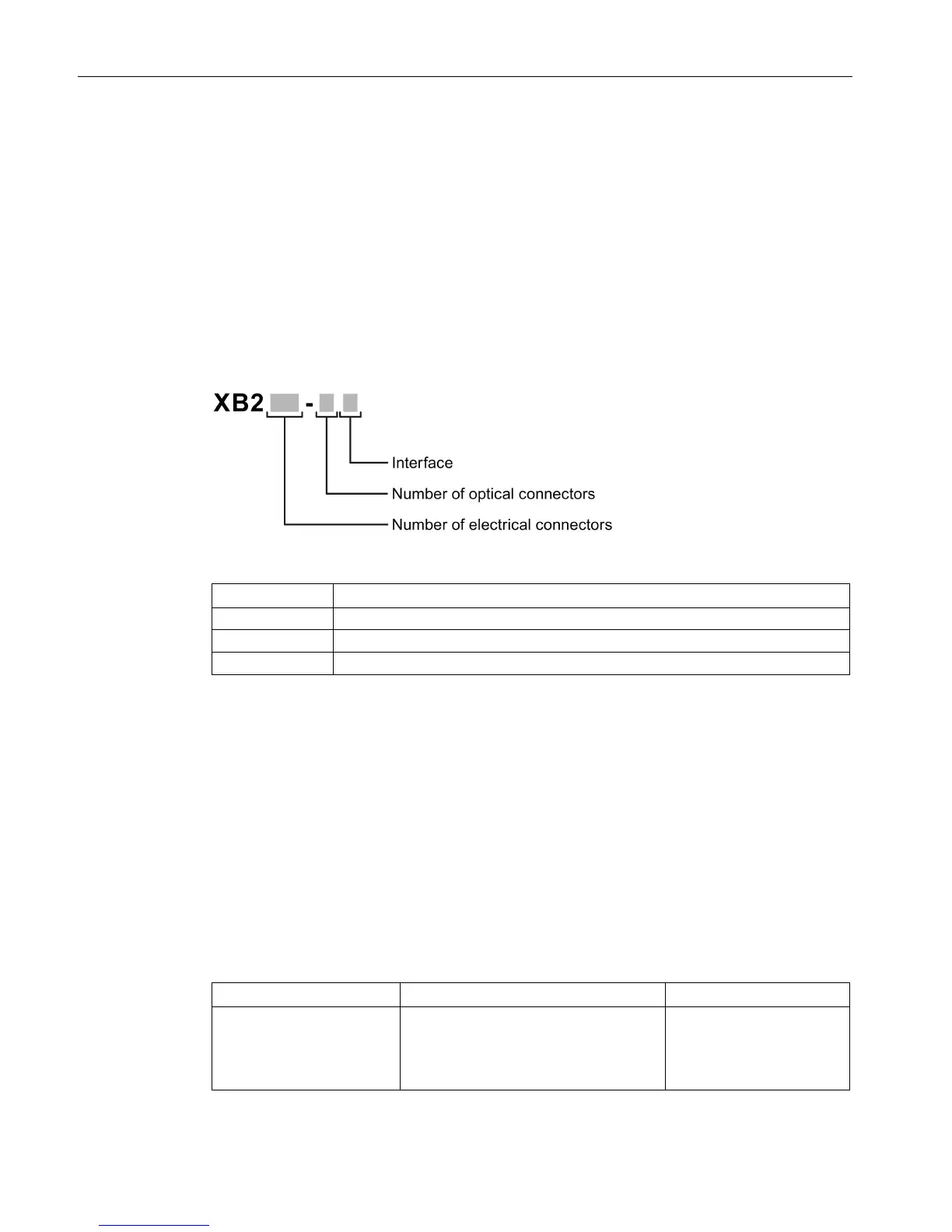

The type designation of a SCALANCE XB-200 is made up of several parts that have the
following meaning:
Interfaces of devices with optical connectors:
10/100 Mbps SC port, multimode fiber-optic cable, up to 5 km
10/100 Mbps SC port, single mode fiber-optic cable, up to 26 km
10/100 Mbps ST port, multimode fiber-optic cable, up to 5 km
Components of the product
The following components are supplied with a SCALANCE XB-200:
● One device
● Two 3-terminal blocks for the power supply
● One product DVD with documentation and software
The following accessories are available for SCALANCE XB-200:
Connecting cable (RJ-
11/RS-232)
Preassembled, serial cable with RJ-11
and RS-232 plug,
Length: 3 m
