Dimension drawings
SCALANCE XB-200
52 Operating Instructions, 09/2015, C79000-G8976-C359-03

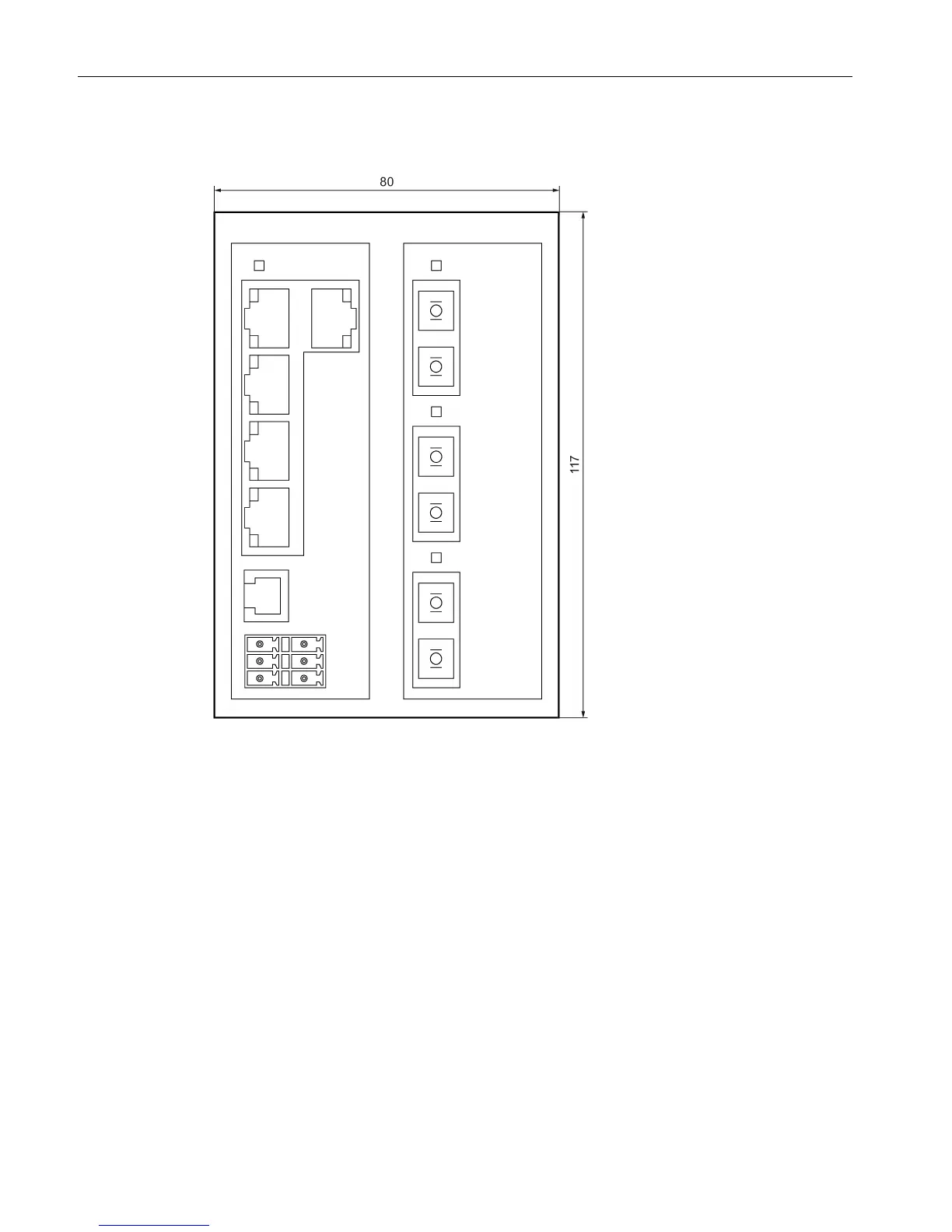

Front view of the SCALANCE XB205-3 (SC), XB205-3LD (SC), XB205-3 and XB216
Figure 7-2 Width and height based on the example of the SCALANCE XB205-3
