11.1 Dimension drawing
SCALANCE X-300
280 Operating Instructions, 02/2012, A5E01113043-12
Figure 11-2 Small design dimension drawing (IE Switch X-306)
Medium design

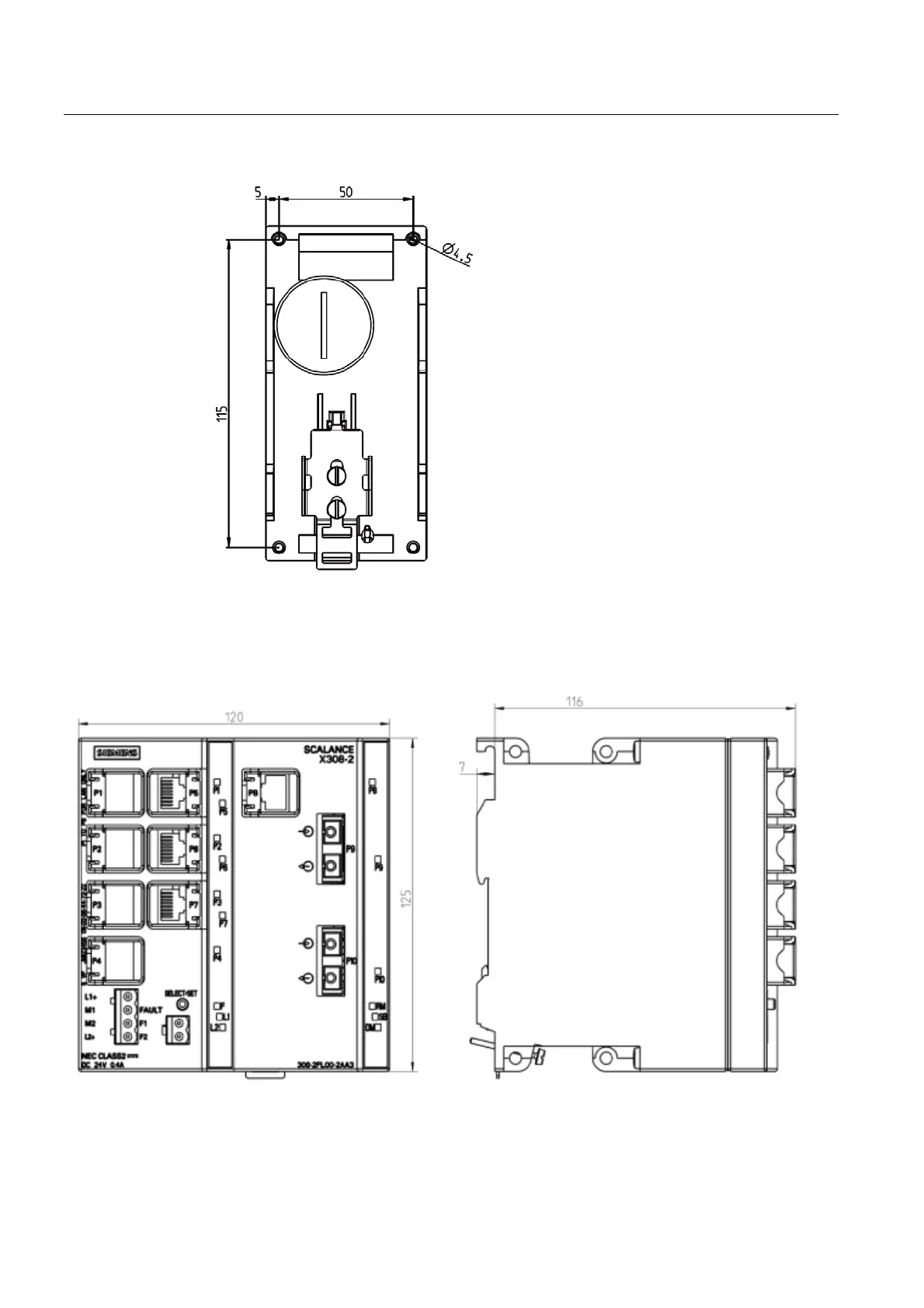

Figure 11-3 Medium design dimension drawing (example used here SCALANCE X308-2)
