Mounting position, mounting clearances
4
4.1
Standard mounting position
The device is mounted on standard mounting rails according to EN 60715 35×7,5/15.
The device must be mounted vertically in such a way that the terminals are at the bottom.
A clearance of at least 50 mm should be maintained above and below the device (maximum
depth of the cable duct, 50 mm).
No space is required at the side.
Output current as a function of the ambient temperature and mounting height

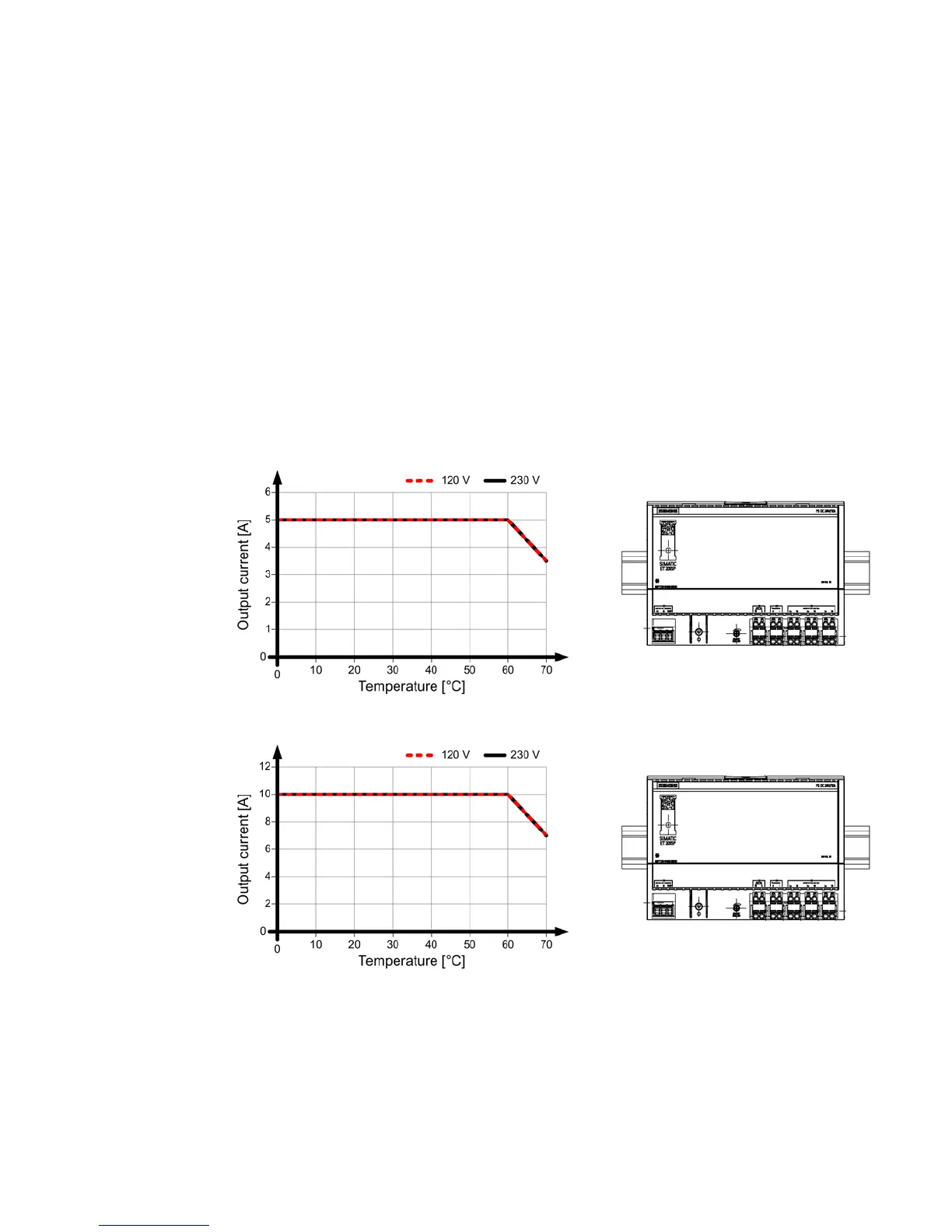

Figure 4-1 6EP7133-6AB00-0BN0: Output current in the standard mounting position
Figure 4-2 6EP7133-6AE00-0BN0: Output current in the standard mounting position
