Front nameplate
You will find the front nameplate when the bottom cover for the operator controls and
displays is open. It contains information about the device and a Data Matrix Code with the
MAC addresses of the SIMATIC Drive Controller.
01FS:
6ES7615-4DF10-0AB0
T-L86065647
A5E43926179
① Data Matrix Code

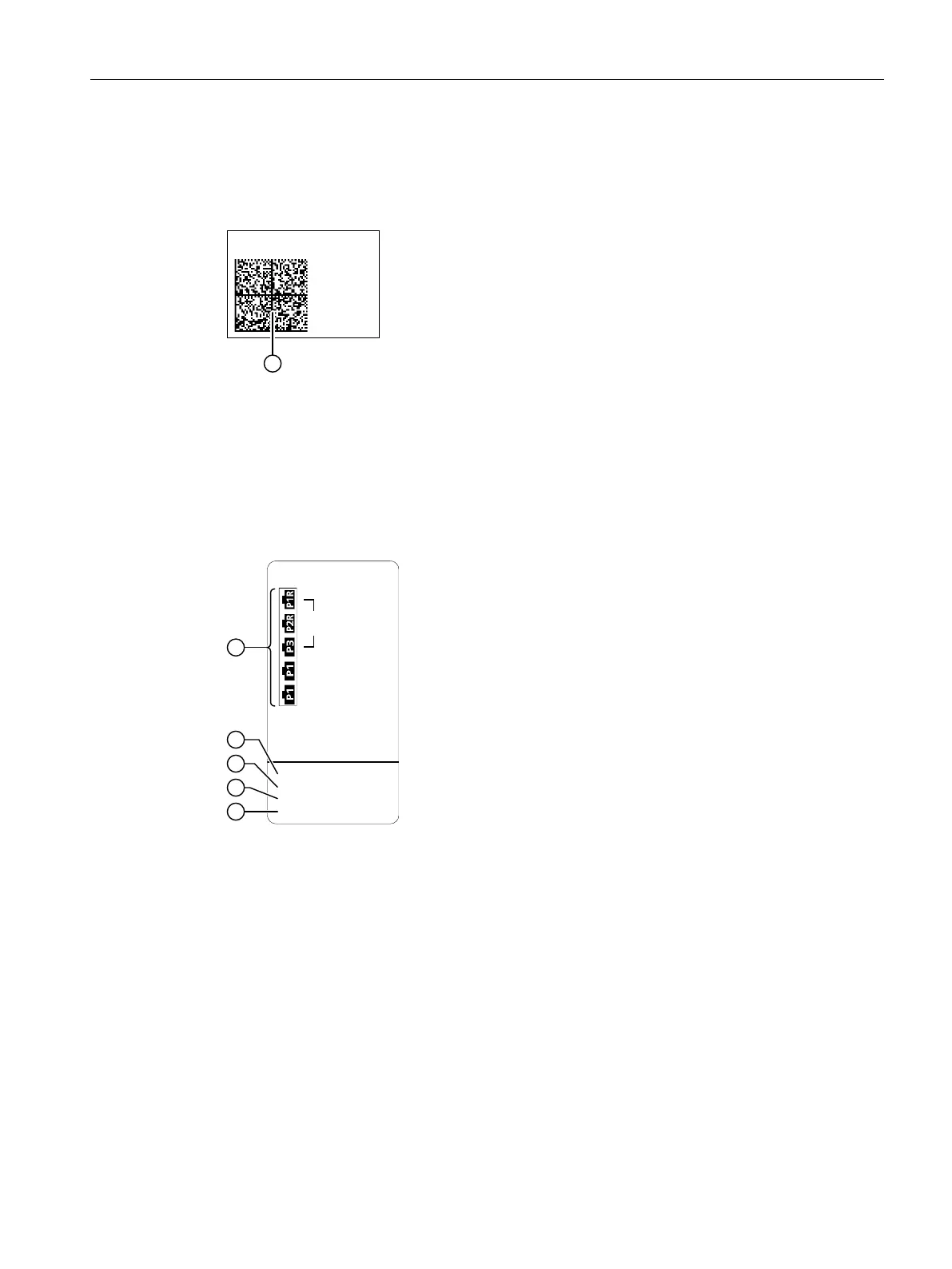

Figure 3-10Front nameplate
Label on bottom cover
The inside of the bottom cover contains a label with the MAC addresses and additional device
information of the SIMATIC Drive Controller.
01FS:
6ES7615-4DF10-0AB0
T-L86065647
A5E43926179
CPU 1504D TF
X150
00-1F-F8-4A-0D-BC
X160
00-1F-F8-4A-0D-C0
X130
00-1F-F8-4A-0D-C2
PROFINET (LAN)
PROFIsafe
- MAC ADD1
- MAC ADD5
- MAC ADD7
① MAC addresses
② Product name
③ Article number
④ Serial number and HW function version
⑤ Material number
Figure 3-11Label with MAC addresses
39
Product overview
3.7 Operator controls, displays and connection elements
SIMATIC Drive Controller
Equipment Manual, 11/2022, A5E46600370-AC
