Siemens SIMATIC S7-300 Module data Product Information

Expert Functions
5.2 Extending a PROFIdrive message frame
Connection of the SINAMICS S120 to the Technology CPU
138 Product Information, 09/2011, A5E00480378-04
5.2.3 Extending the PROFIdrive message frame in S7T Config
In S7 Technology V4.1 and higher, there is an option to extend message frames directly
in the SINAMICS message frame configuration in S7T Config.
Procedure

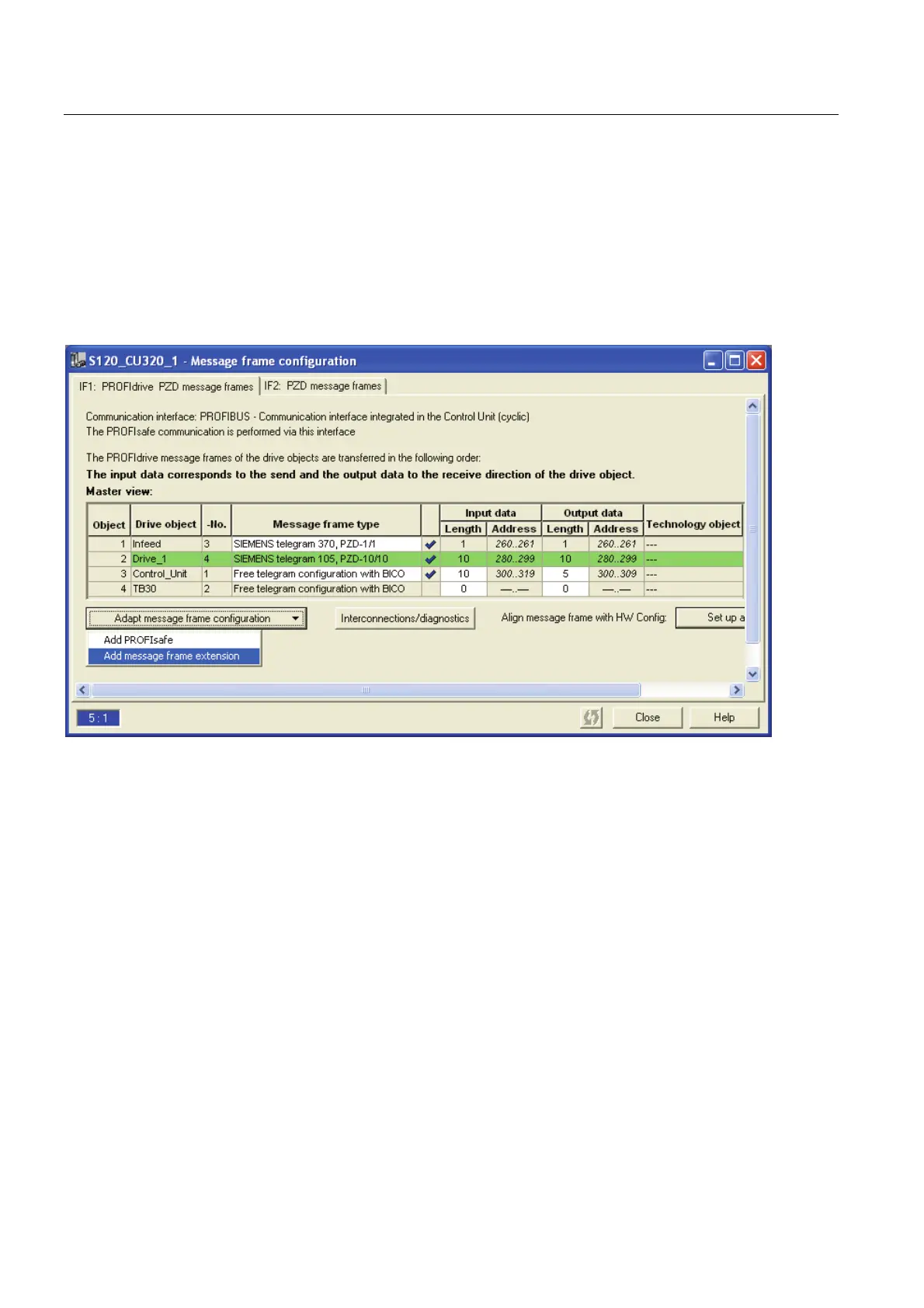

1. In S7T Config, open the message frame configuration of SINAMICS S120.
2. Select the drive object.
3. Click "Adapt message frame configuration" and then select "Add message frame
extension".
4. Click "Interconnections/Diagnostics" to open the message frame configuration of the drive
object. The individual control and status words of the utilized message frame are
displayed there.
5. Clear the "Suppress inactive interconnections" option to display the added words of the
message frame extension. These are designated as "user-defined".
6. Change the desired message frame properties and close the message frame
configuration.
7. Click "Align message frame with HW Config: Set up addresses" to perform alignment with
HW Config.
8. Choose "Save and compile" to activate the changes in the S7T Config project.

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
