3.4.13 Trigger on control monitor script error
To be able to automatically check malfunctions in the configuration for defective
control monitors, you can set up the trigger on "control monitor script error".
This function is for troubleshooting only.
Each configured action, that does not provide the expected result, is signaled as a
case. This can be an access to a non-existent variable or any other incomplete
configurations.

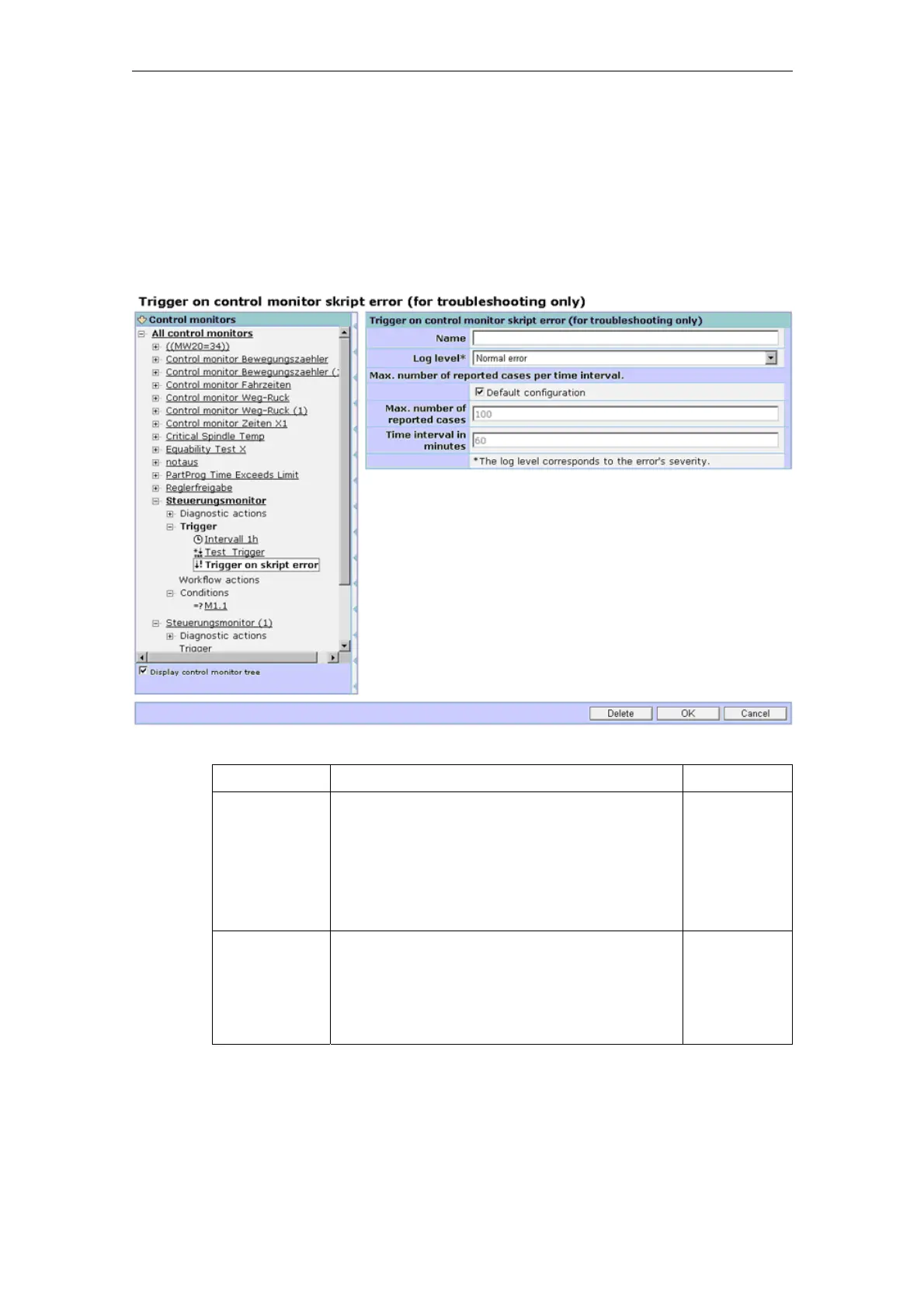

Fig. 3-39: Trigger on script error
Function Description Type
Name Name of the trigger; can be entered by the user.
If the field remains empty or is deleted, the
system will generate a name.
If the name already exists, a consecutive
number is automatically added in parentheses.
If the name is too long, the number added can
only be seen in a tooltip.
DISPLAY
INPUT
(max. 100
characters,
all characters
are
permissible)
Log level Scripts can be monitored on
- Normal error
- Information
- Warning
- Critical error
DISPLAY
SELECTION

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
