Function Description Type
A yellow icon indicates the advance notice of a due
date.
A red icon shows that the end date is exceeded that was
set by the user for completing the job.
Control
monitor /
event
Shows the control monitor concerned, and the type
of event.
DISPLAY
Priority Shows the user-assigned priority (0 ... 5) for the
control monitor.
DISPLAY
Deletes the fault message from the list. ACTION
3.4.19 Server trigger on "Time trigger"
Function description
The time trigger permits trigger cycles in intervals of seconds up to 99 999 days.
Various calendar functions are available for defining the trigger time.
To allow time triggers to be more easily coordinated in different intervals, it is no
longer necessary to manually calculate each individual start date and time for the
first trigger. Instead a uniform start date and time can be specified from which the
trigger is activated if the interval is reached. The trigger time calculated from the
start time and interval is immediately displayed for control.
Notice
Time data refers only to the local time set at the machine's PC regardless of
whether the clock is correct or not.

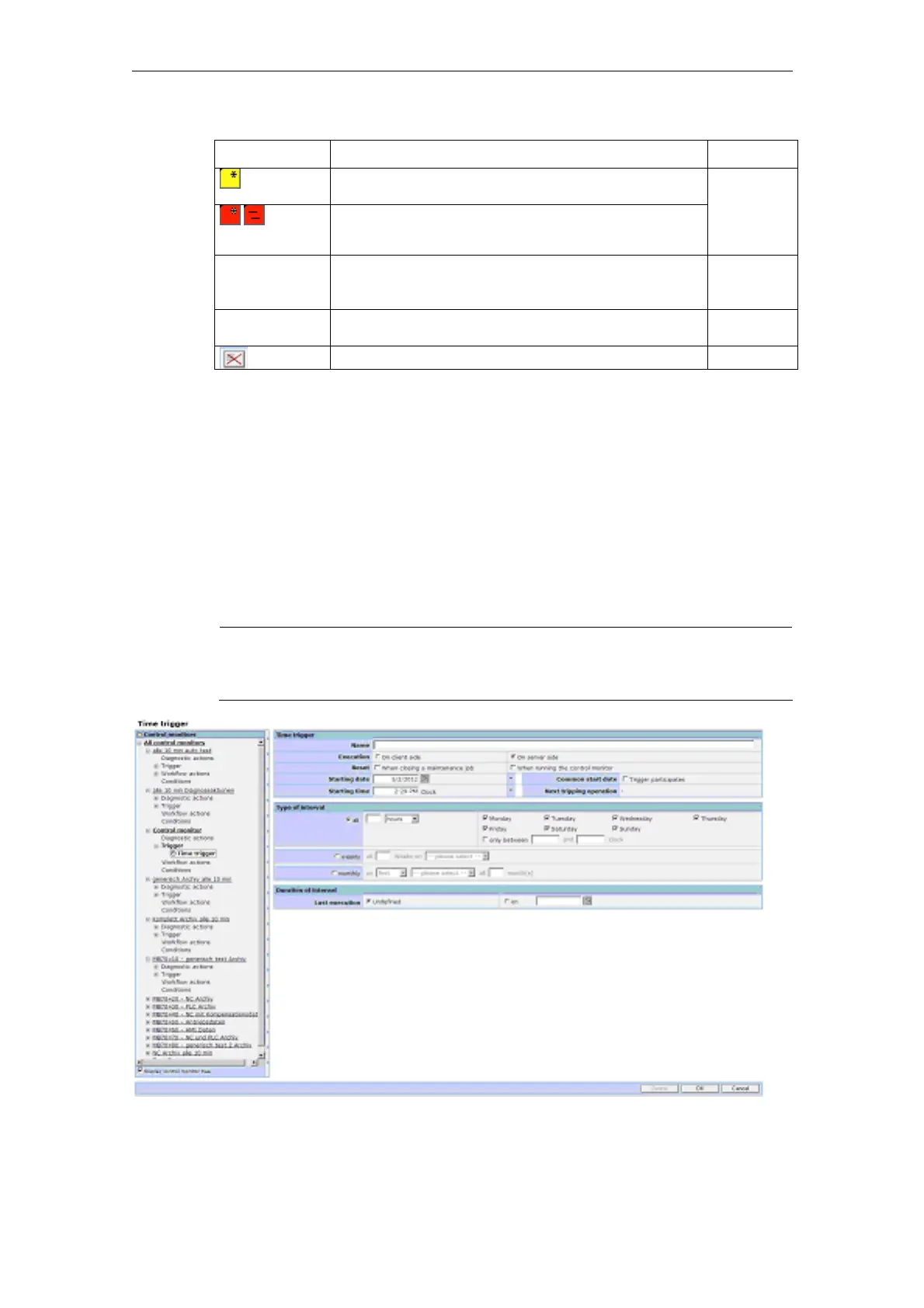

Fig. 3-50: Time trigger
