Siemens Sinamics G120 Series - p2164[0...2] Hysteresis frequency deviation; Hyster freq deviat; p2165[0...2] Delay time permitted deviation; Delay_T perm. dev.; p2166[0...2] Delay time ramp up completed; Delay_T rampUpCmpl

Parameters
List of Parameters
1-226
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Hysteresis frequency for detecting permitted deviation (from setpoint) or frequency or speed.
This frequency controls bit 8 in status word 1 (r0052) and bit 6 in status word 2 (r0053).
Description: Delay time for detecting permitted deviation of speed or frequency from setpoint.
Note: See diagram in P2164.
Description: Delay time for signal that indicates completion of ramp-up.
Note: See diagram in P2174.
p2164[0...2] Hysteresis frequency deviation / Hyster freq deviat
Access level: 3 P-Group: Messages Data type: Floating Point
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.00 [Hz] 10.00 [Hz] 3.00 [Hz]
r0063
–
+
0
1
{
Entry freq. deviat
0.00 ... 20.00 [Hz]
p2163.D (3.00)
Hyster freq deviat
0.00 ... 10.00 [Hz]
p2164.D (3.00)

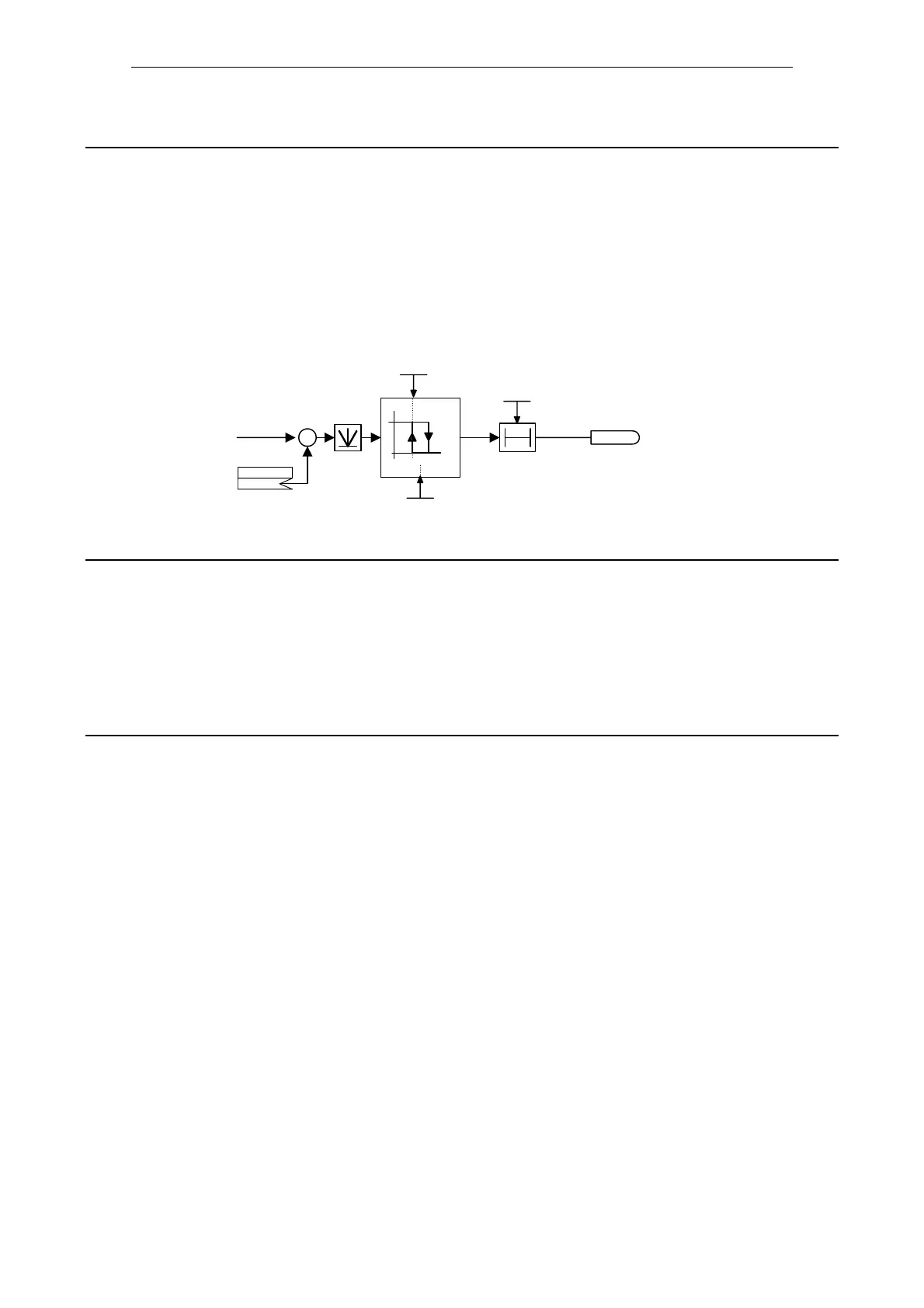

f_act
f_act == f_set
f_set
f_act == f_set
0T
r2197 Bit07
r0052 Bit08
r0053 Bit06
1170
P2152
Delay_T perm. dev.
0 ... 10000 [ms]
P2165.D (200)
p2165[0...2] Delay time permitted deviation / Delay_T perm. dev.
Access level: 2 P-Group: Messages Data type: Unsigned16
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0 [ms] 10000 [ms] 200 [ms]
p2166[0...2] Delay time ramp up completed / Delay_T rampUpCmpl
Access level: 2 P-Group: Messages Data type: Unsigned16
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0 [ms] 10000 [ms] 10 [ms]
