Siemens SINAMICS G120 - Connecting the Inverter to PROFIBUS; Installing GSDML

Application examples
You can find application examples for PROFINET communication on the Internet:
Controlling the speed of a SINAMICS G110M/G120/G120C/G120D with S7-300/400F via
PROFINET, with Safety Integrated (via terminal) and HMI (
https://
support.industry.siemens.com/cs/ww/en/view/60441457)
Controlling the speed of a SINAMICS G110M/G120 (Startdrive) with S7-1500 (TO) via
PROFINET, with Safety Integrated (via terminal) and HMI (https://
support.industry.siemens.com/cs/ww/en/view/78788716)
4.5.10.4 Installing GSDML
Procedure
To install the GSDML of the inverter in the engineering system of the controller, proceed as
follows:
1. Save the GSDML to your PC .
– From the Internet: GSDML (https://support.industry.siemens.com/cs/ww/en/view/
26641490)
– From your inverter:
Insert a memory card into the inverter.
Set p0804 = 12.
The inverter writes the GSDML as zipped file (*.zip) into directory /SIEMENS/SINAMICS/
DATA/CFG on the memory card.
2. Unzip the GSDML file on your computer.
3. Import the GSDML into the engineering system of the controller.
You have now installed the GSDML in the engineering system of the controller.

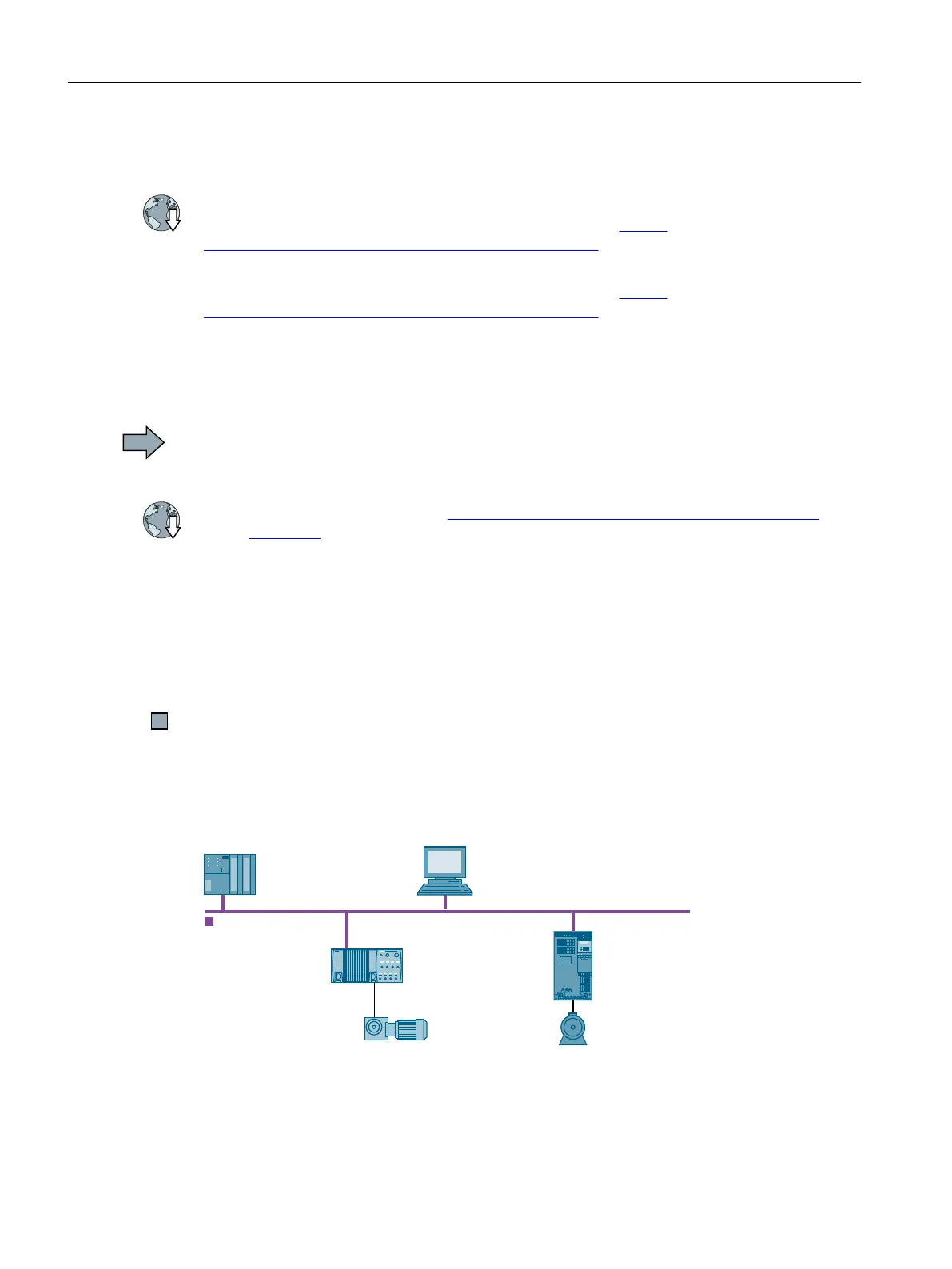

4.5.11 Connecting the inverter to PROFIBUS
6,1$0,&6*'
6ODYH
6,1$0,&6*
6ODYH
3&&ODVV0DVWHU
352),%86'3
6,0$7,&6
&ODVVPDVWHU


Installing
4.5 Connecting the interfaces for the inverter control
Converter with the CU230P-2 Control Units
140 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
