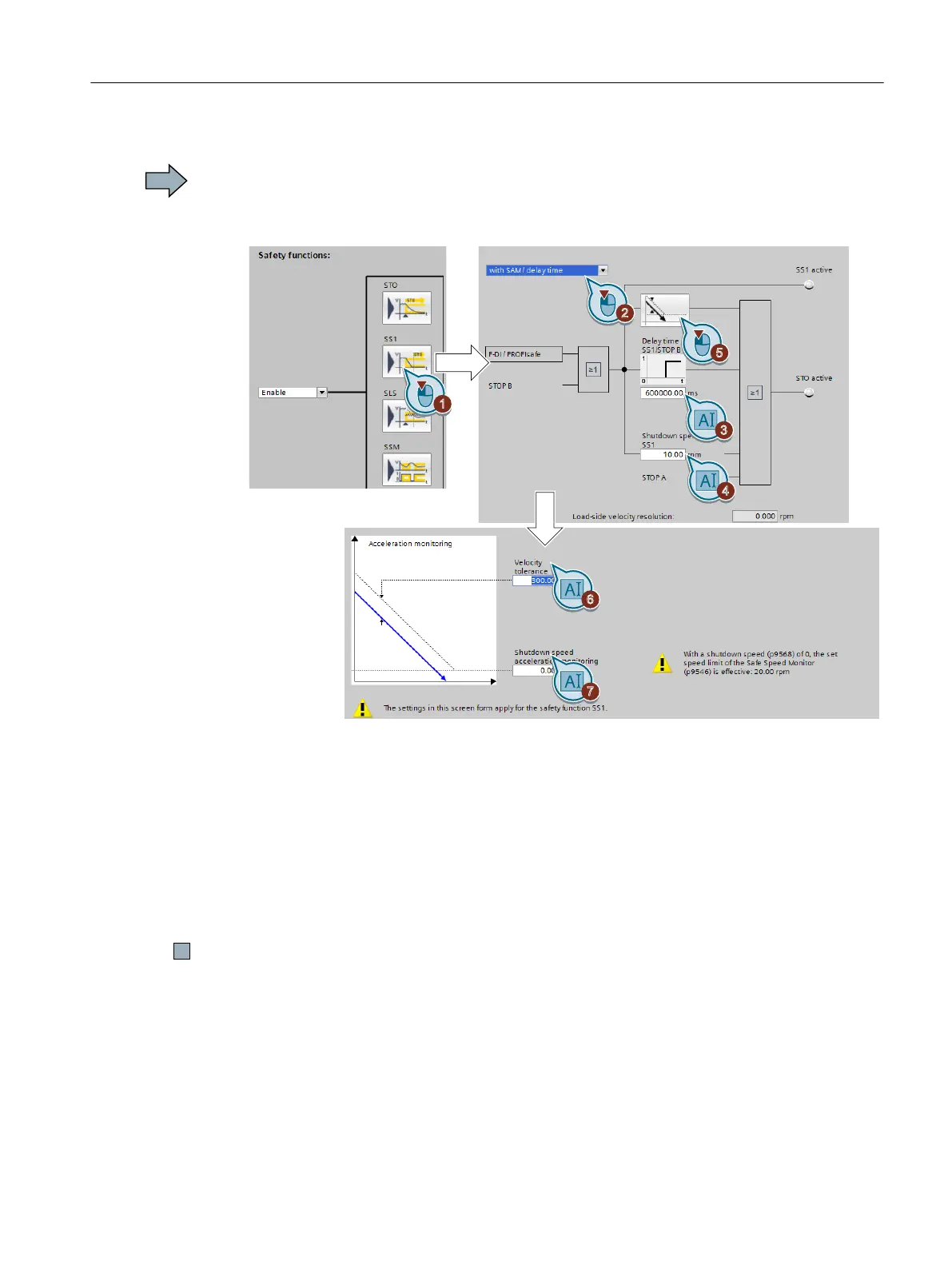

Procedure with Startdrive
To set the SS1 function with acceleration monitoring, proceed as follows:
1. Press the button for the SS1 function.
2. Select "with SAM/delay time".
3. After the "delay time", the inverter safely switches off the motor torque – regardless of the
actual speed.
4. The "shutdown speed SS1" is a condition for the transition into the STO function.
5. Press the "SAM" button.
6. The "speed tolerance" is used to track the monitoring to the actual speed.
7. The "shutdown speed acceleration monitoring" is a condition for the transition into the STO
function.
8. Close the screen forms.
You have set the SS1 function with acceleration monitoring.
Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 181
