3.4 Factory interface settings
CU230P-2 Control Units
14 Compact Operating Instructions, 01/2017, A5E38815802B AA
3.4
Factory interface settings
The factory setting of the interfaces depends on the Control Unit.
Control Units with PROFIBUS or PROFINET interface
The function of the fieldbus interface and digital inputs DI 0, DI 1 depends on DI 3.
--- No function.
DO x: p073x
AO 0: p0771[0]
DI x: r0722.x
Speed setpoint (main setpoint): p1070[0] = 2050[1]

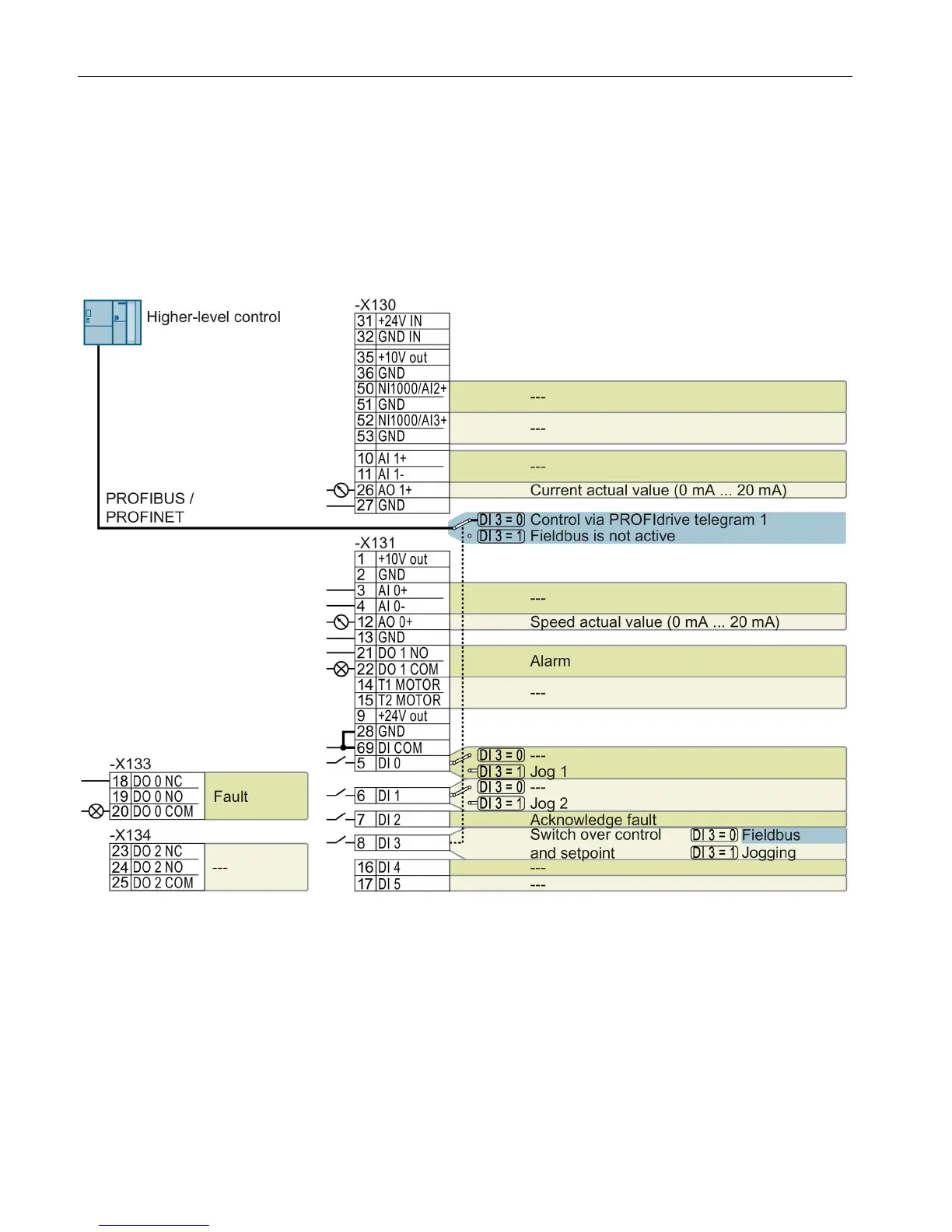

Figure 3-2 Factory setting of the CU230P-2 DP and CU230P-2 PN Control Units
