Commissioning
5.4 The AOP30 operator panel
Inverter chassis units
170 Operating Instructions, 07/2016, A5E00331449A
The AOP30 operator panel
Description
An optional operator panel for operating, monitoring, and commissioning purposes is
available. It has the following features:
● Graphic-capable, back-lit LCD for plain-text display and a "bar-type display" for process
variables
● LEDs for indicating the operating modes
● Help function describing causes of and remedies for faults and alarms
● Keypad for controlling drives during operation
● LOCAL/REMOTE switchover for selecting the control terminal (master control assigned to
operator panel or terminal strip/ PROFIdrive)
● Numeric keypad for entering setpoint or parameter values
● Function keys for prompted navigation through the menus
● Two-stage security concept to protect against accidental or unauthorized changes to
settings
● IP54 degree of protection (when installed).

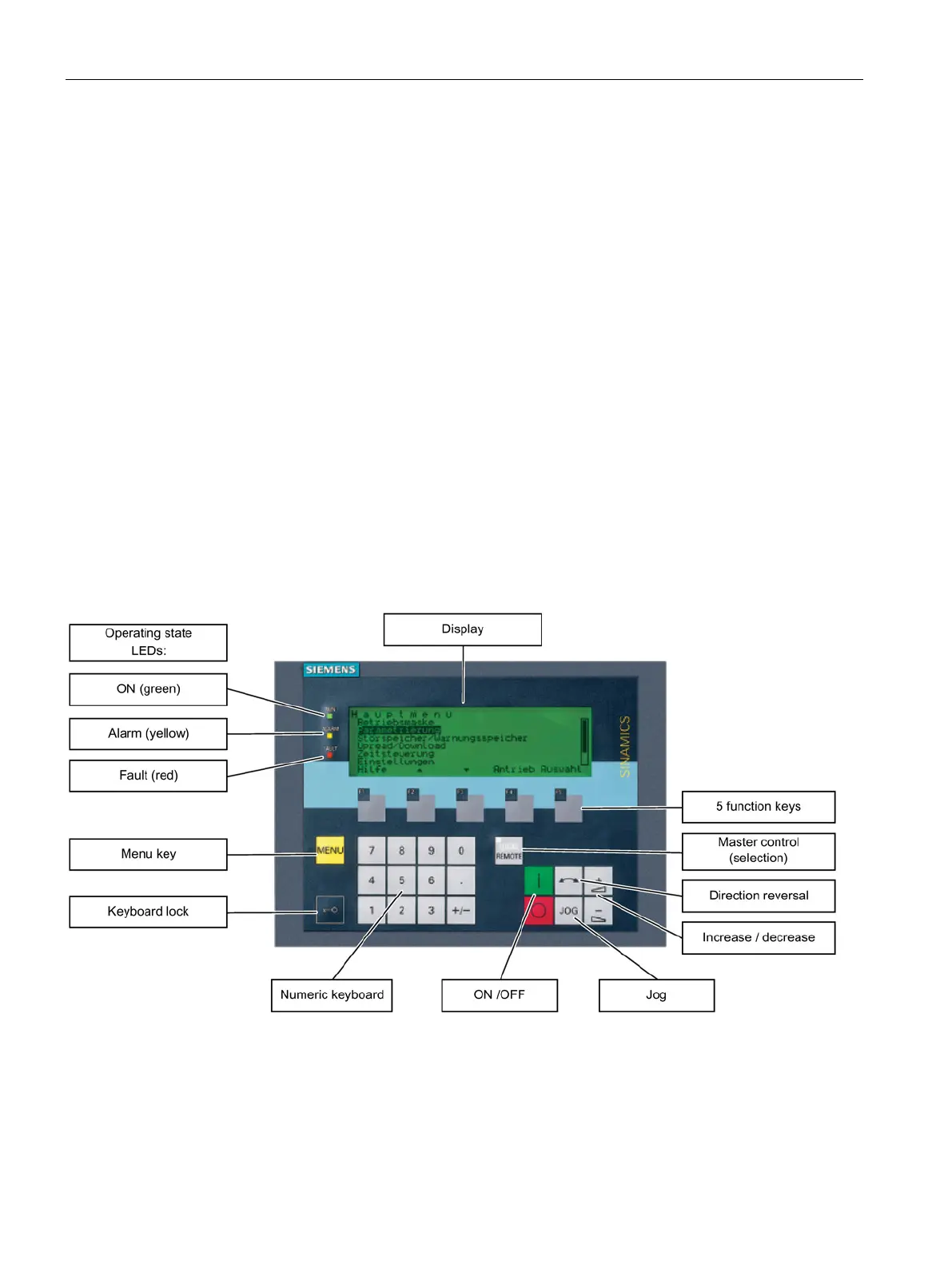

Figure 5-38 Components of the chassis unit operator panel (AOP30)
