Mechanical installation
3.7 SMC30 Sensor Module
Inverter chassis units
Operating Instructions, 07/2016, A5E00331449A
45
SMC30 Sensor Module
Description
The SMC30 Sensor Module is a module for evaluating encoder signals. TTL/HTL encoders
(with or without open-circuit monitoring) can be connected to the SMC30. The motor
temperature can also be detected using KTY84-1C130 or PTC thermistors.
Fire hazard due to overheating because of inadequate ventilation clearances
Insufficient ventilation clearances result in overheating with danger to persons as a result of
smoke and fire. This can also result in increased failures and reduced service life of the
Sensor Module.
• For this reason, it is imperative that you maintain the 50 mm clearances above and
below the Sensor Module.

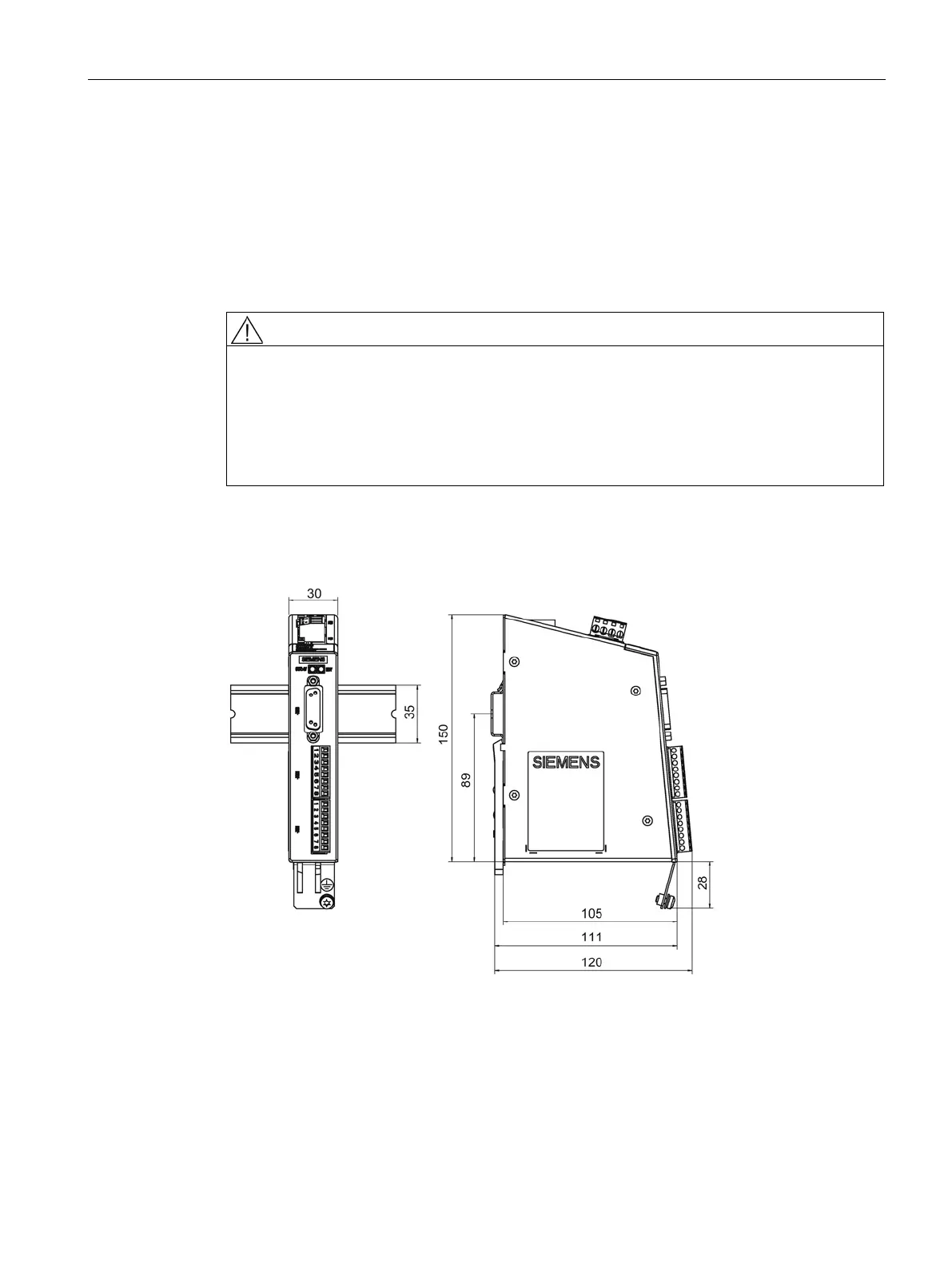

Figure 3-3 Dimension drawing of the SMC30 Sensor Module
