Siemens SINAMICS G180 - Modbus TCP

Description
3.3 Accessories
Installation and Operating Instructions SINAMICS G180
Operating Instructions, 02/2019, 4BS0751-007
63
3.3.14.4
Modbus TCP
You can purchase a Modbus TCP board as an accessory. The Modbus board is installed
under the plastic cover. The board can be retrofitted. You recognize from the description
"…
Type code _ _ _ _ T _" on the rating plate that a Modbus TCP board has been integrated.

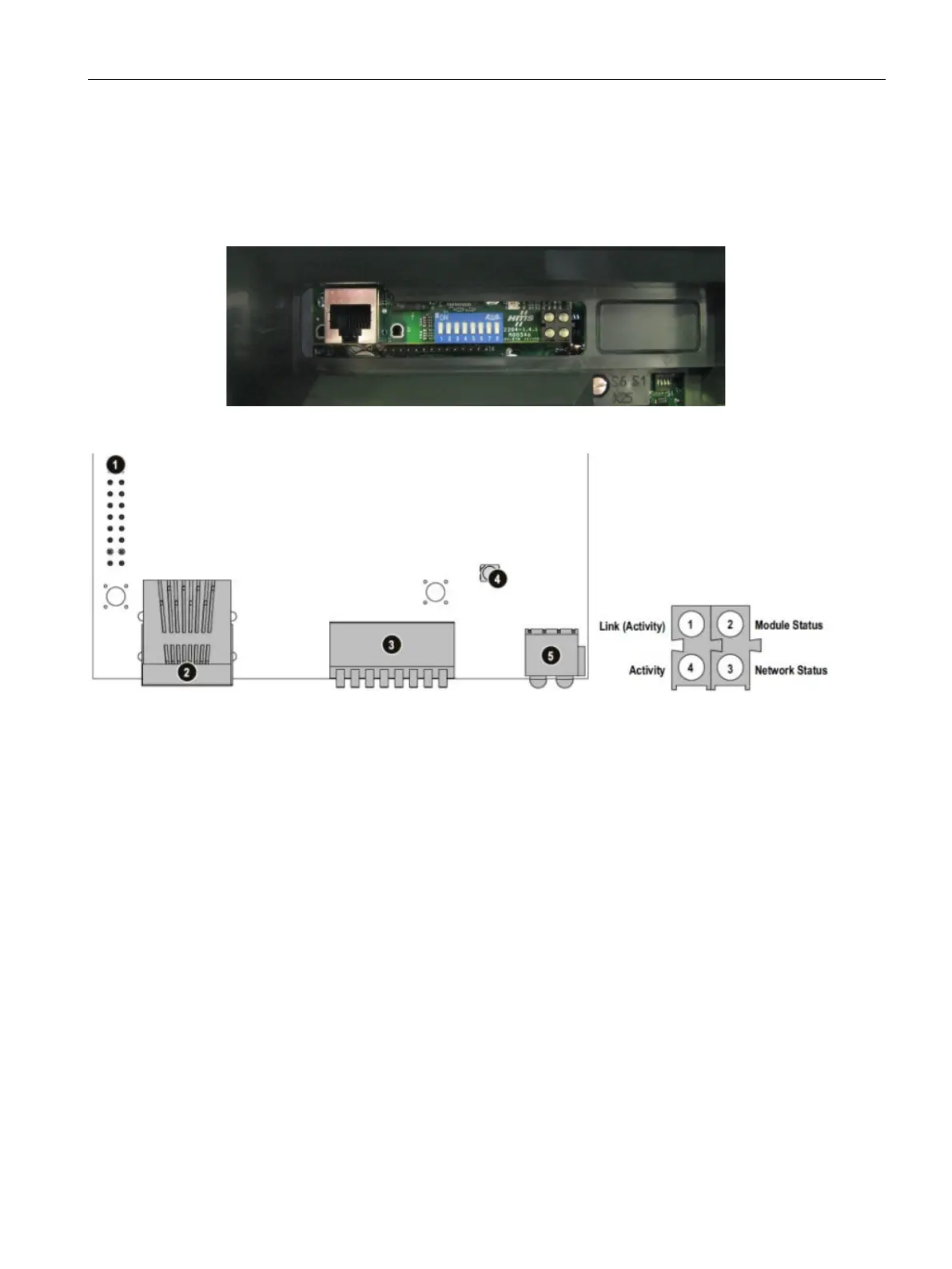

Figure 3-9 Modbus TCP board
(1)
Internal bus connection
(2)
Ethernet connection socket RJ45
(3)
Configuration switch
(4)
Anybus Watchdog
(5)
Status LEDs
Figure 3-10 Modbus TCP board
