Preparations for use
4.3 EMC
Installation and Operating Instructions SINAMICS G180
78 Operating Instructions, 02/2019, 4BS0751-007
Place with insulation removed

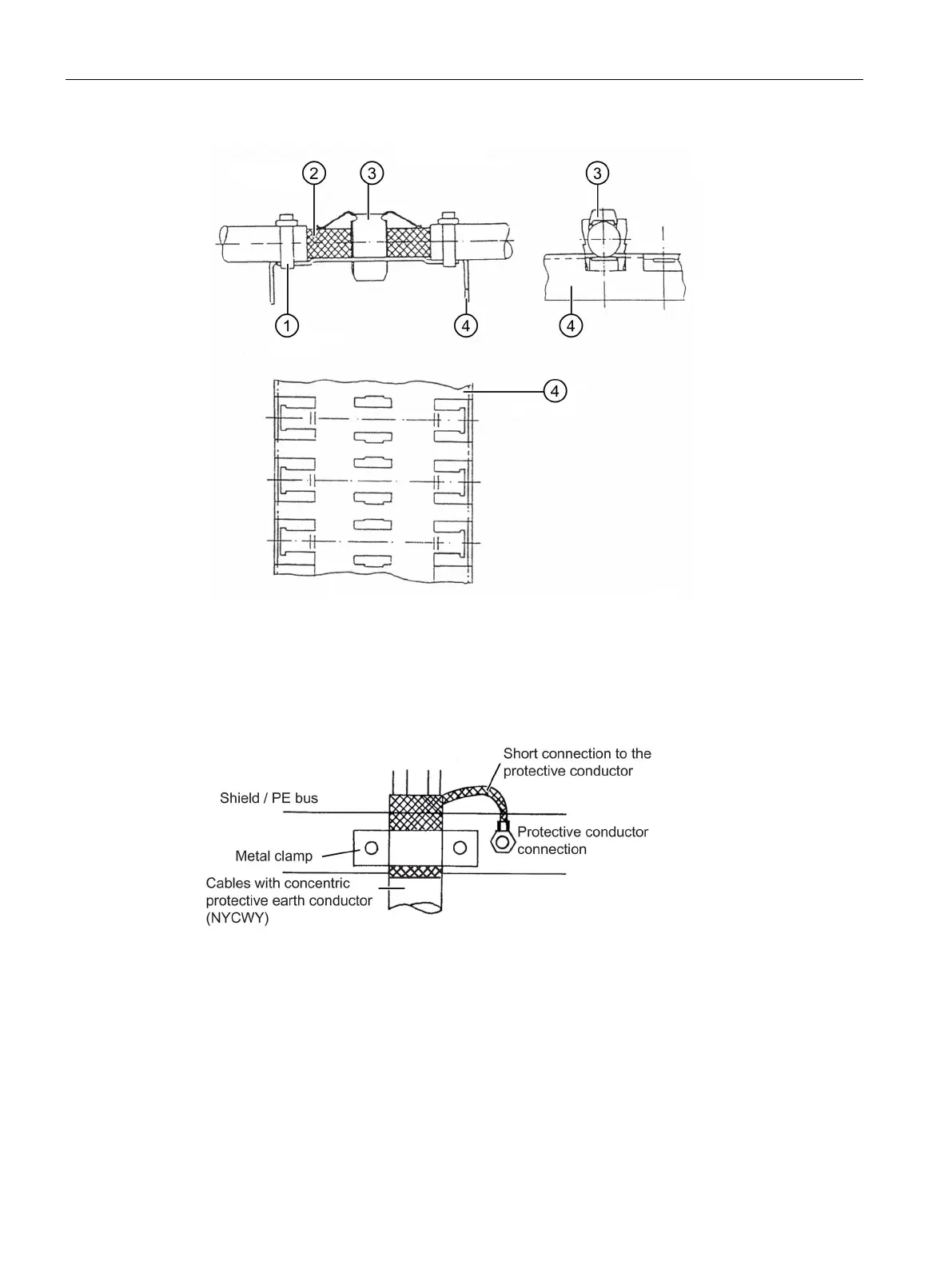

Figure 4-4 Shield connection for cabinet devices
Figure 4-5 Shield connection for cable type NYCWY
You can read the radio interference class of the inverter at the version designation of the
rating rate or from the order confirmation. Further information can be found in the "Type
designations" (Page 31) section.
