Siemens SINAMICS S 1PH7 - Electrical Connection for the Motorized Selector Unit; Explanation of the Connections

Motor components (options)
5.4 Gearbox
1PH7 induction motors (Machine tools)
200 Configuration Manual, (APH7W), 04/2009, 6SN1197-0AD72-0BP0
Electrical connection for the motorized selector unit
Power supply for the selector unit: 24 V DC ±10 %
The mechanical selector unit requires a separate supply.


0
6
6
3(

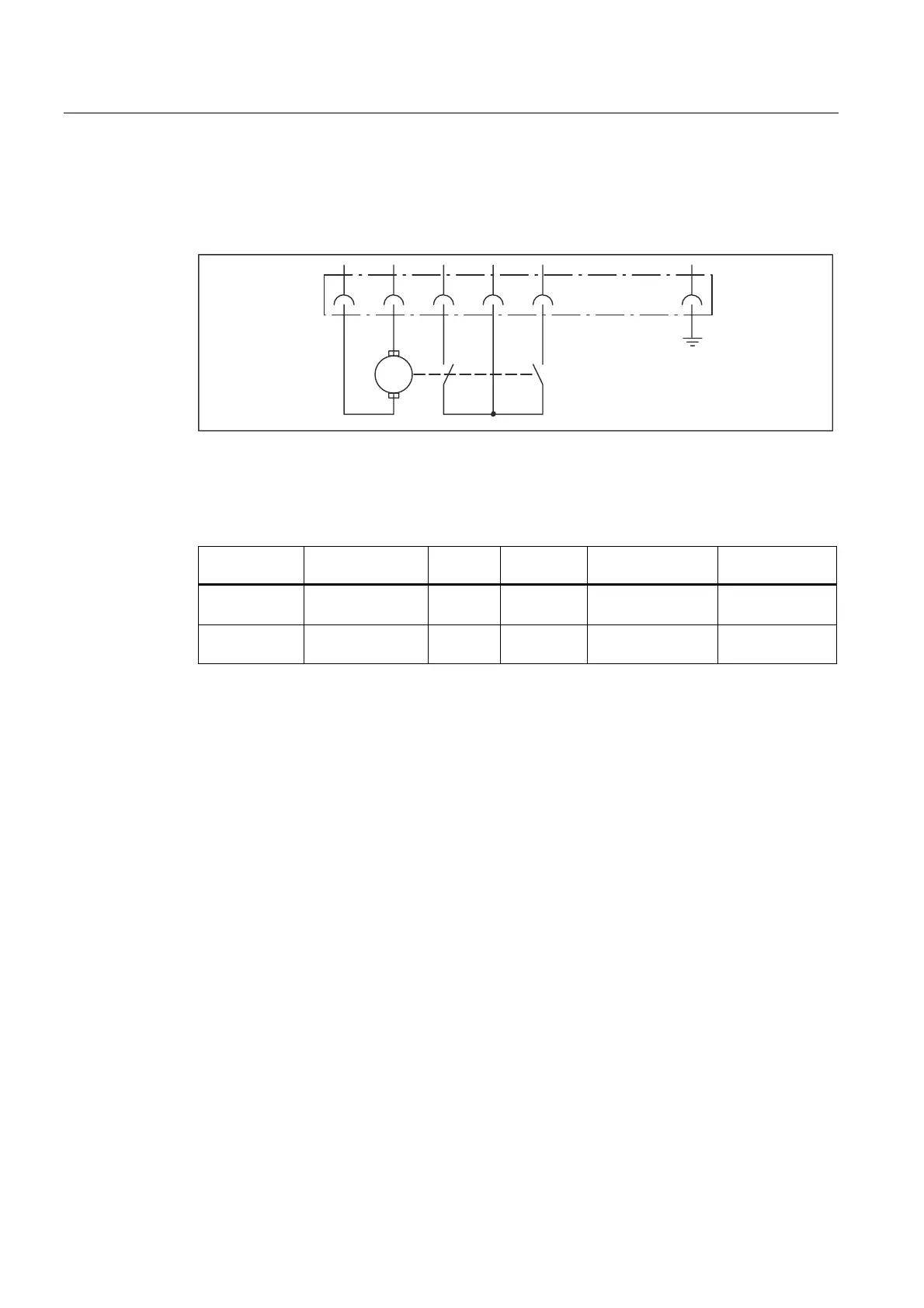

Figure 5-6 Circuit diagram
Connector (incl. in the scope of supply): Manufacturer, Harting; 7-pin + PE, type HAN 7D
Table 5- 7 Explanation of the connections
Connector
contact No.
Number and
designation
input Output Voltage Current
2 and 3 1 selector unit 0 – 24 V DC I
max
= 5 A
(inrush current)
4 and 6 2 limit switches 0 0 24 V DC
V
max
= 42 V DC
I
max
= 5 A
