14.1 Replacing the fan
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
799
14.1.6
Replacing the fan for Booksize Compact components

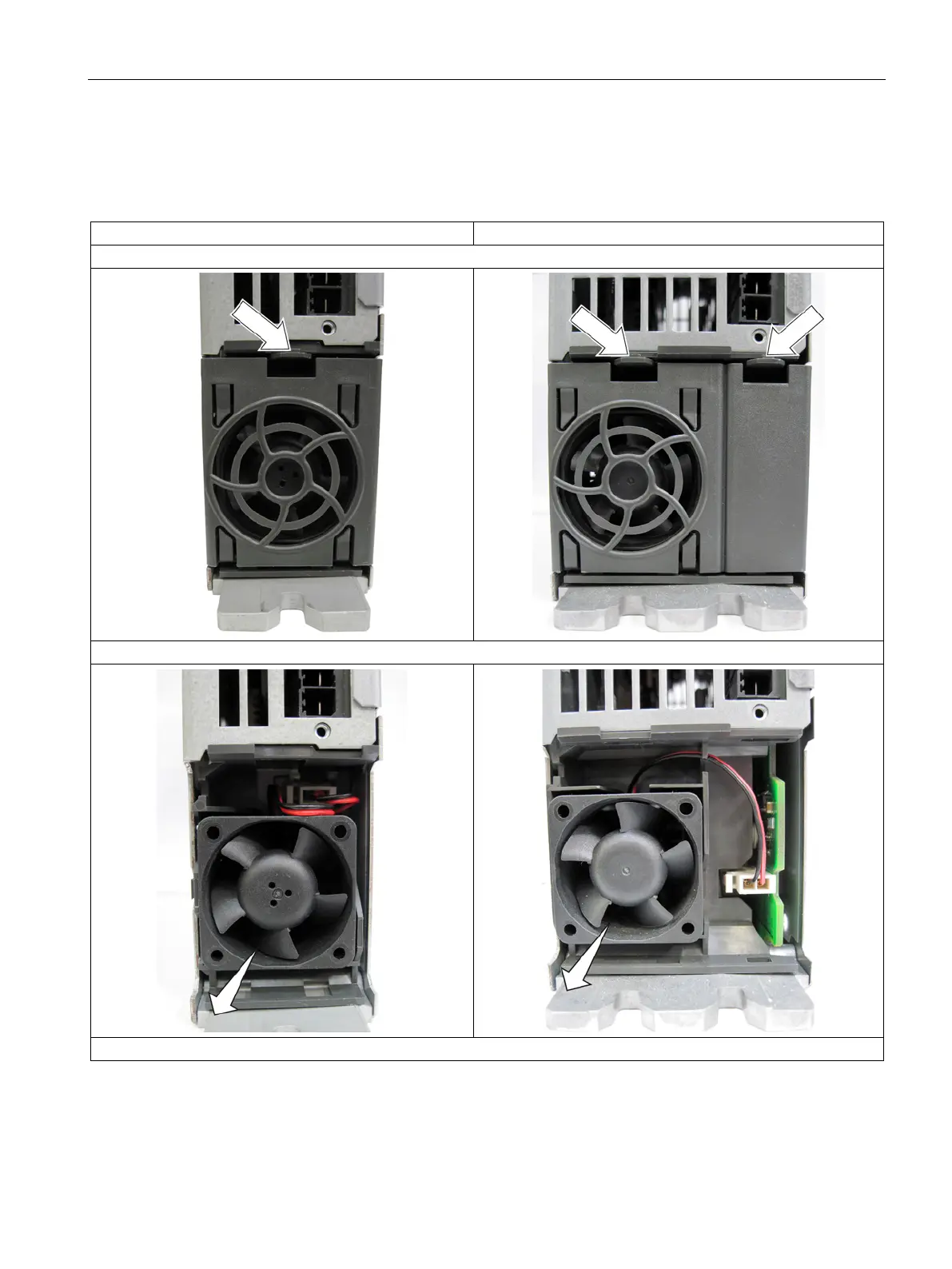

Table 14- 6 Removing the fan
Size 50 mm
Size 75 mm
1. Remove the component from the drive line-up.
2. Remove the fan cover at the lower side of the component by releasing the catches.
3. Carefully withdraw the fan.
