Siemens SIPART PS2 6DR5110 Series User Manual

Preparing for Operation
51
SIP ART PS2 Manual
A5E00074631-01
+
4to20mA
6DR5210-xExxx
6DR5220-xExxx
6DR5211-xExxx
Hazardous area zone 1 or zone 2
Non-hazardous
area
Intrinsically
safe power
source
EEx
Positioner
2
3
4
5
Digital inputs 1
6
7
8
9
10
+3 V
A
E
J
HART Communicator

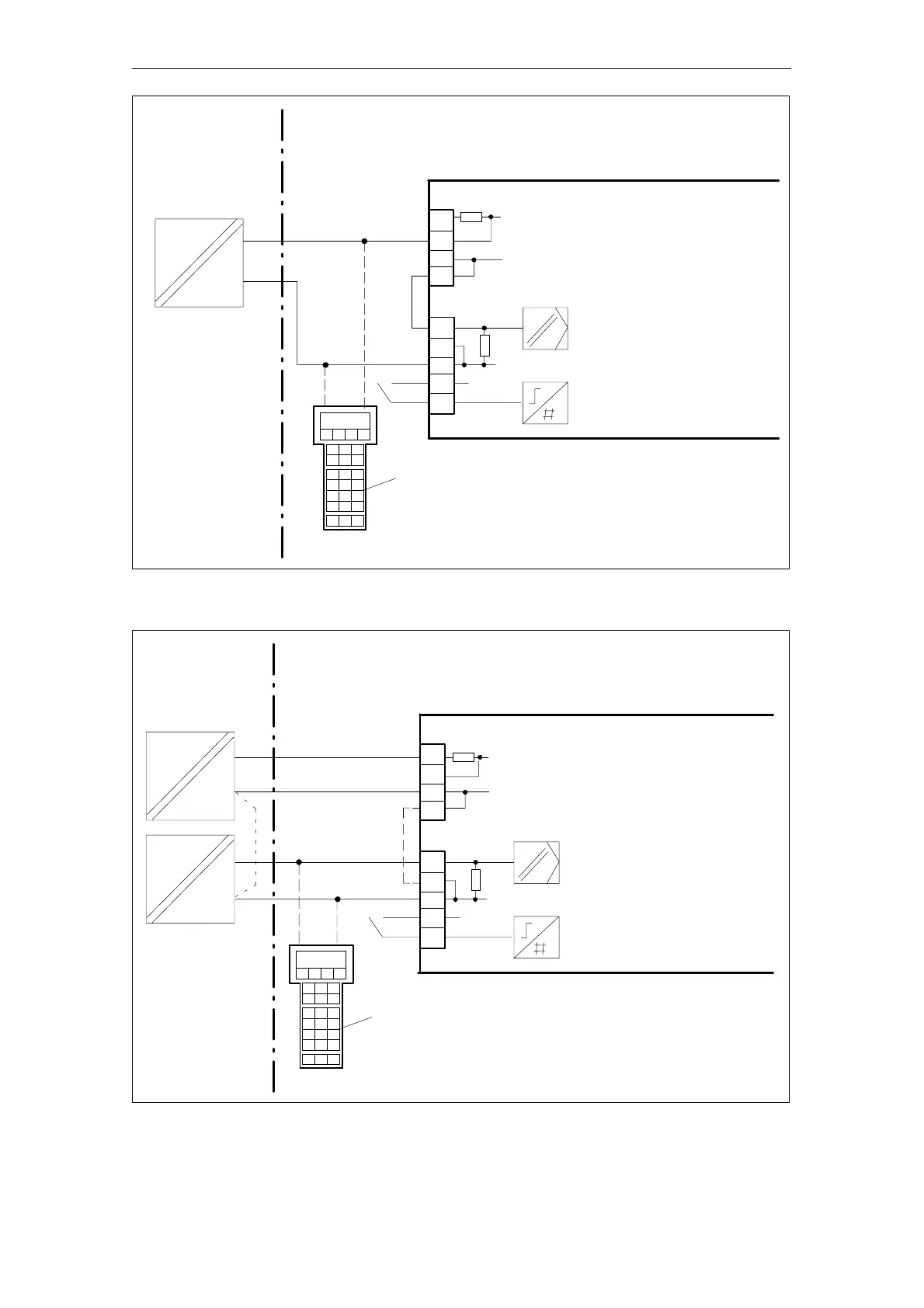

Figure 3-14 Two--wire connection standard controller 6DR52xx-xExxx
+
4to20mA
6DR5210-xExxx
6DR5220-xExxx
6DR5211-xExxx
Hazardous area zone 1 or zone 2
Non-hazardous
area
Intrinsically
safe power
sources
EEx
Positioner
2
3
4
5
Digital inputs 1
6
7
8
9
10
+3 V
A
E
EEx
*)
*) Only for three--wire connection
+
18 to 30 V
U
J
*)
HART Communicator
Figure 3-15 Three-/four--wire connection standard controller 6DR52xx-xExxx
