Infeed
2.1 Active Infeed
Drive functions
36 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Active Infeed open-loop control
The Active Line Module can be controlled via the BICO interconnection using terminals or
the fieldbus. The operating status is indicated on the operating display r0002. The missing
enable signals for operation (r0002 = 00) are mapped in parameter r0046. The EP terminals
(enable pulses) must be connected in accordance with the manual of the corresponding
power units. The drive unit must have been commissioned for the first time.
Faults that are still present but the causes of which have been rectified can be
acknowledged using a 0/1 edge at the "1st acknowledge faults" signal (p2103).
Switching on the Active Line Module

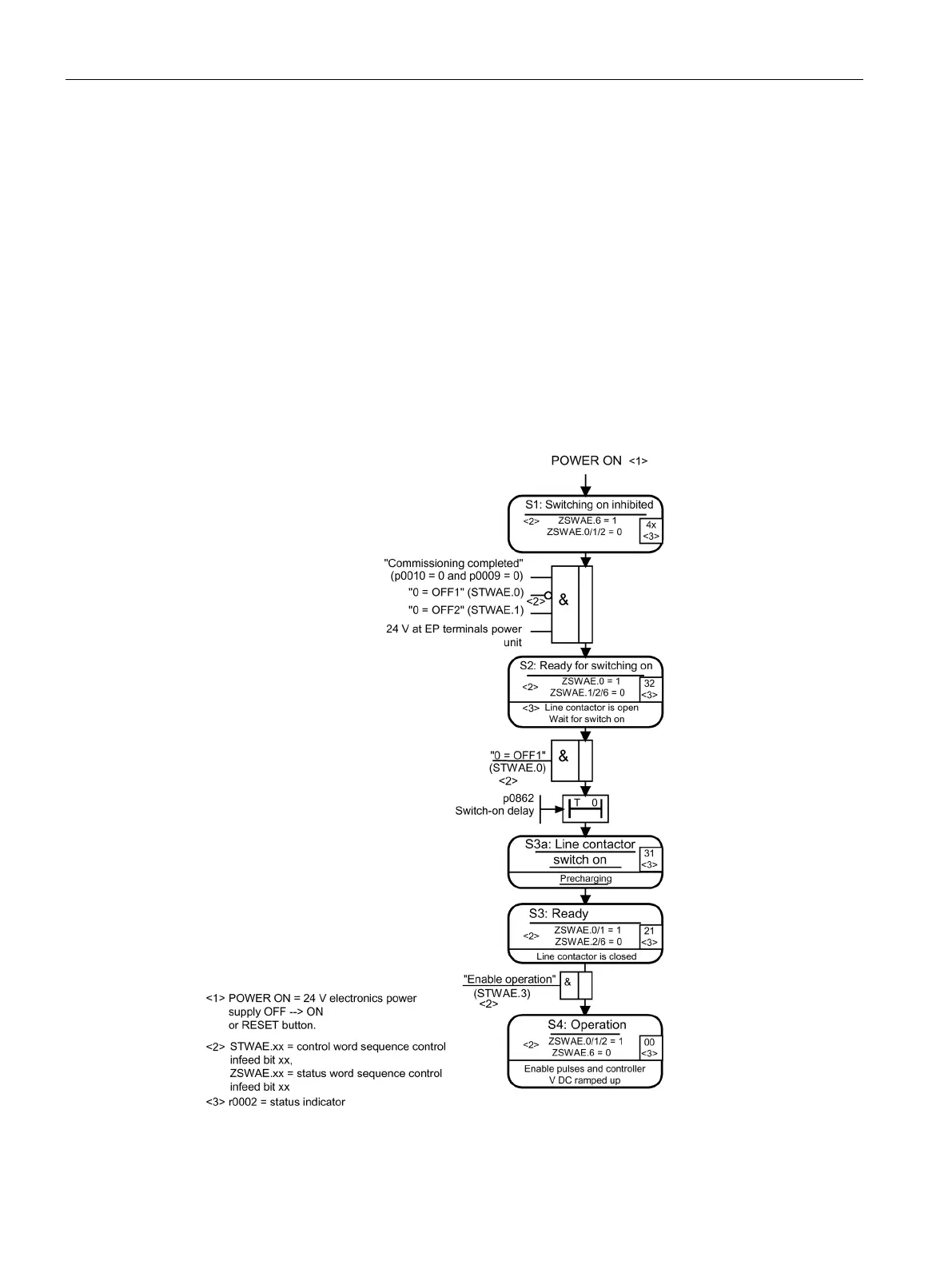

Figure 2-3 Active Infeed power-up
