Basic functions
7.30 Web server
Drive functions
Function Manual, 11/2017, 6SL3097-4AB00-0BP5
431
Configuring the Web server
7.30.3.1
Performing the basic configuration
The configuration of the Web server is performed via the "Configure Web Server" dialog box
of STARTER. Basically, the configuration can be performed in online mode as well as in
offline mode of STARTER.
Alternatively, you can also configure the Web server via the expert list using the appropriate
parameters. The configuration parameters for the Web server can be found in the SINAMICS
S120/S150 List Manual. Parameter p8986 activates the Web server.
Calling the configuration dialog of the Web server
1. Select the required drive in the project navigator.
2. Call the "Web server" context menu.
The "Web Server Configuration" dialog box then opens.

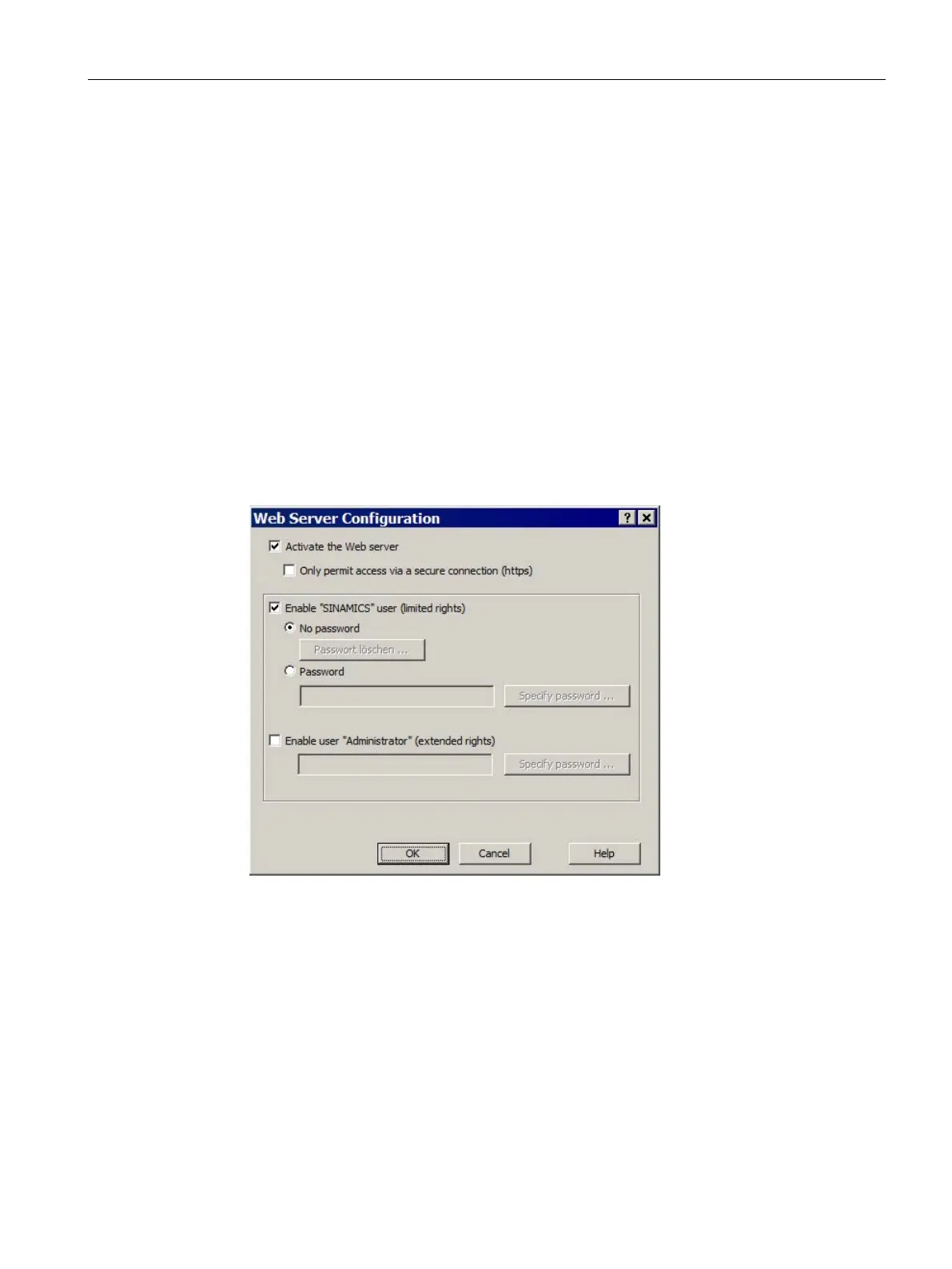

Figure 7-26 Configuring the Web server with default settings
Activating or deactivating the web server
1. In the configuration dialog, activate or deactivate the "Activate the web server" option.
2. Click "OK" to close the configuration dialog box and accept the settings.
