Basic functions
7.30 Web server
Drive functions
444 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Displaying device information
The most important device information can be displayed with the aid of the Web server.
Click the “Device information" entry in the navigation.
The most important device information is then displayed in the “Device information" area.

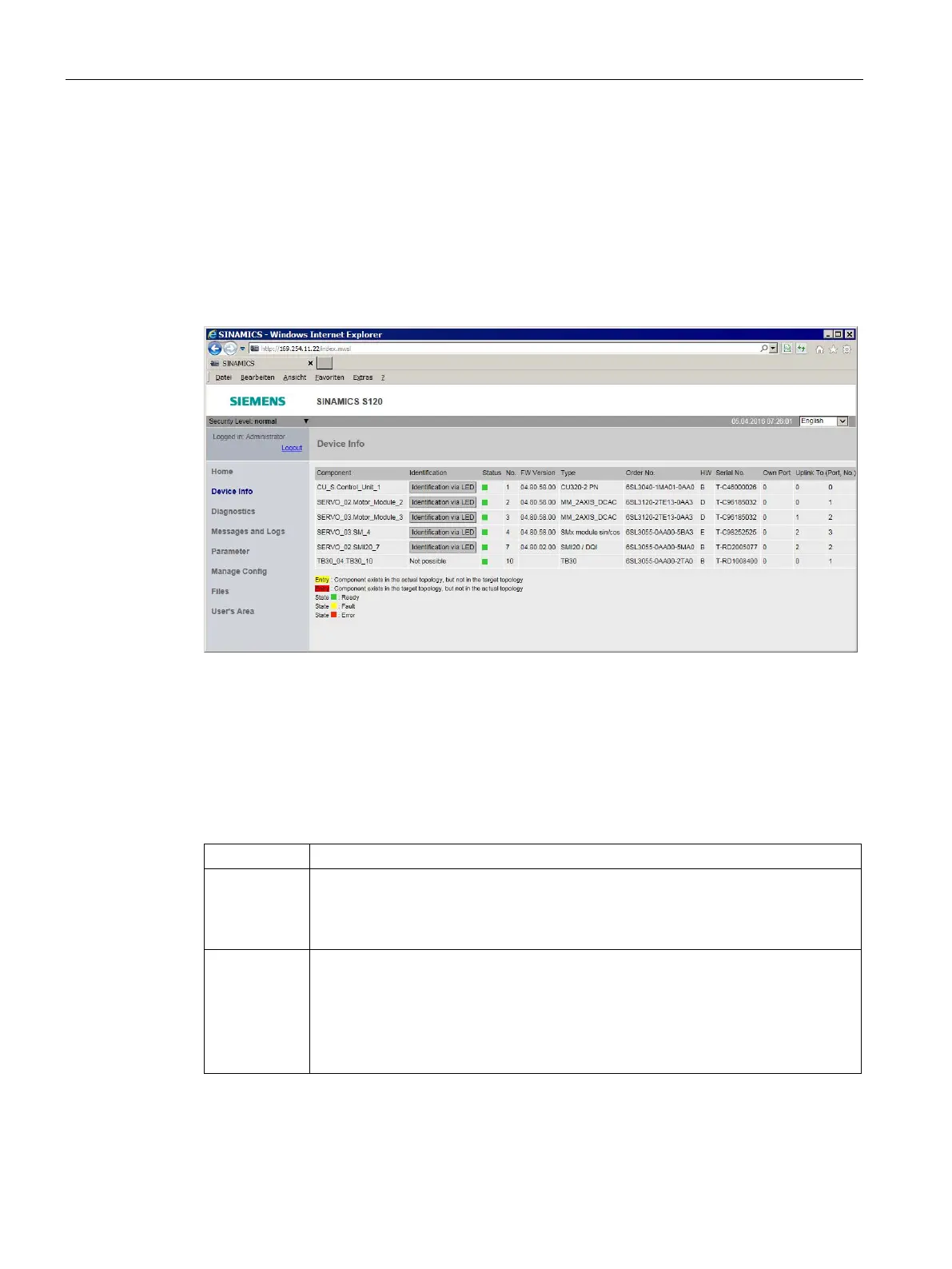

Figure 7-32 Display area: Device information
You can resort the table displayed using the arrow in the column headers.
Identification and status of a component
As with using the STARTER, a system component can also be identified and its status
displayed using the Web server.
Identification Allows a drive object to be identified. If the entry "Identify via LED" is displayed in
this column, an LED blink test can be performed on the drive.
As soon as you click the entry "Identify via LED", the Ready LED on the correspond-
ing component of the drive starts to blink and the component can thus be identified.
Status The current status of the component is in this column (r0196). Meaning:
• Red: Fault active
• Orange: Maintenance urgently required
• Yellow: Maintenance required
• Green: Component is OK.
