Extended setpoint channel
3.5 Speed limiting
Drive functions
74 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
In the range from 0 rpm to the speed setpoint, a drive train (e.g. motor, clutch, shaft,
machine) can have one or more points of resonance. These resonances lead to oscillations.
The suppression bandwidths can be used to prevent operation in the resonance frequency
range.
The limit frequencies can be set via p1080[D] and p1082[D]. Further, using connectors
p1085[C] and p1088[C] it is possible to influence these limits in operation.

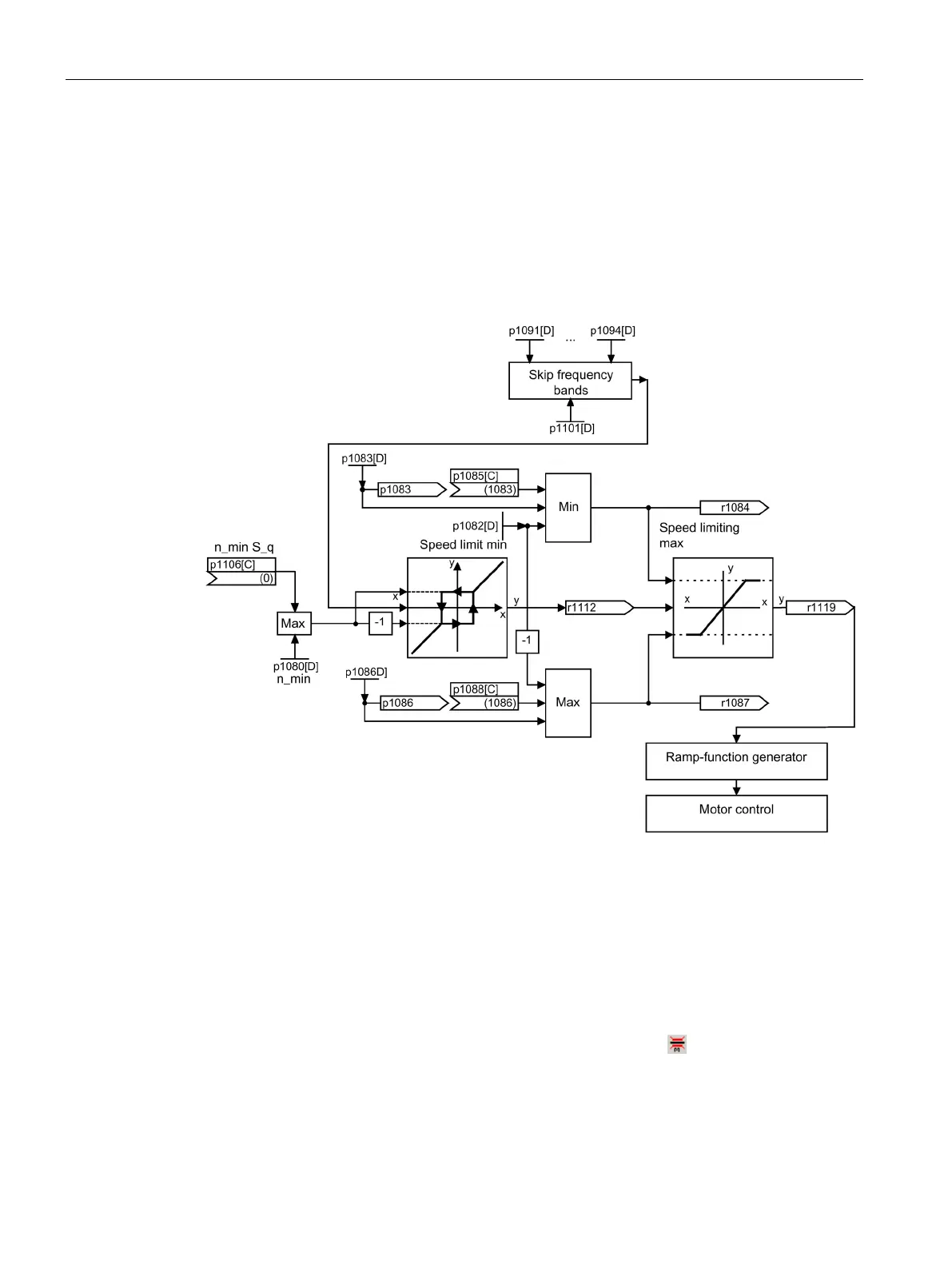

Figure 3-7 Skip frequency bands, setpoint limitation, minimum speed
Using parameter p1106[0...n], a minimum speed n_min s_src or minimum velocity can be
set, which is wired via BICO.
Parameterization with STARTER
The "Speed limitation" parameterizing screen is selected with the icon in the toolbar of
the STARTER commissioning tool.
