Communication
11.2 Communication via PROFIBUS DP
Drive functions
796 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Commissioning PROFIBUS slave-to-slave communication
The commissioning of slave-to-slave communication between two SINAMICS drive devices
using the additional Drive ES package is described below in an example.
Based on the example of the project below, the settings in HW Config are described when
using standard telegrams.

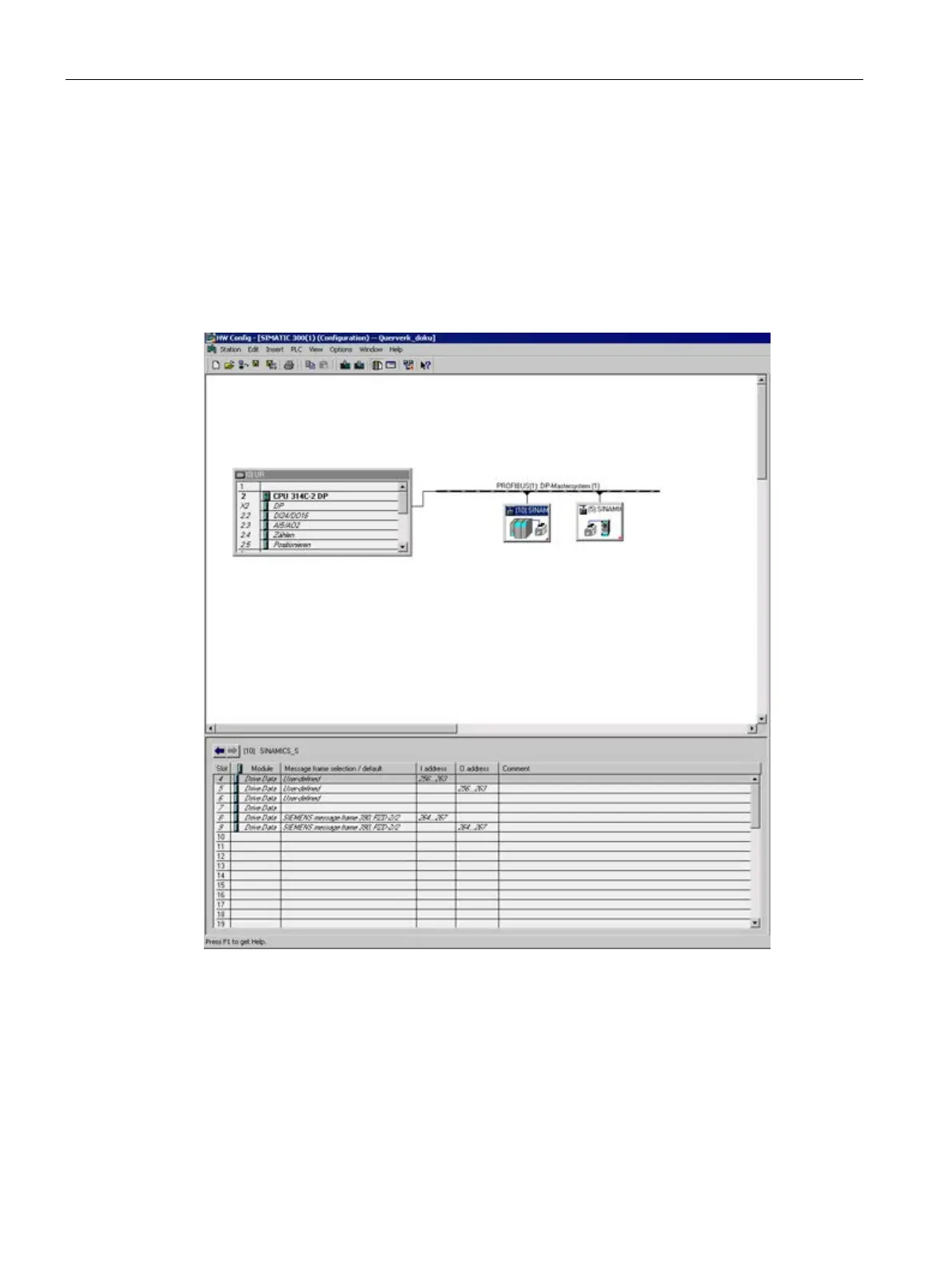

Figure 11-20 Example project of a PROFIBUS network in HW Config
