Applications
12.2 Infeed switch on by a drive
Drive functions
914 Function Manual, 11/2017, 6SL3097-4AB00-0BP5
Infeed switch on by a drive
Using this BICO interconnection, a drive object (DO) "X_INF" (= all drive objects "Infeed";
i.e.: A_INF, B_INF, S_INF) can be activated by a "SERVO/VECTOR" drive object. This
switch-on version is mainly used for drive units in the "chassis" format if a single Infeed
Module and a Motor Module are used.

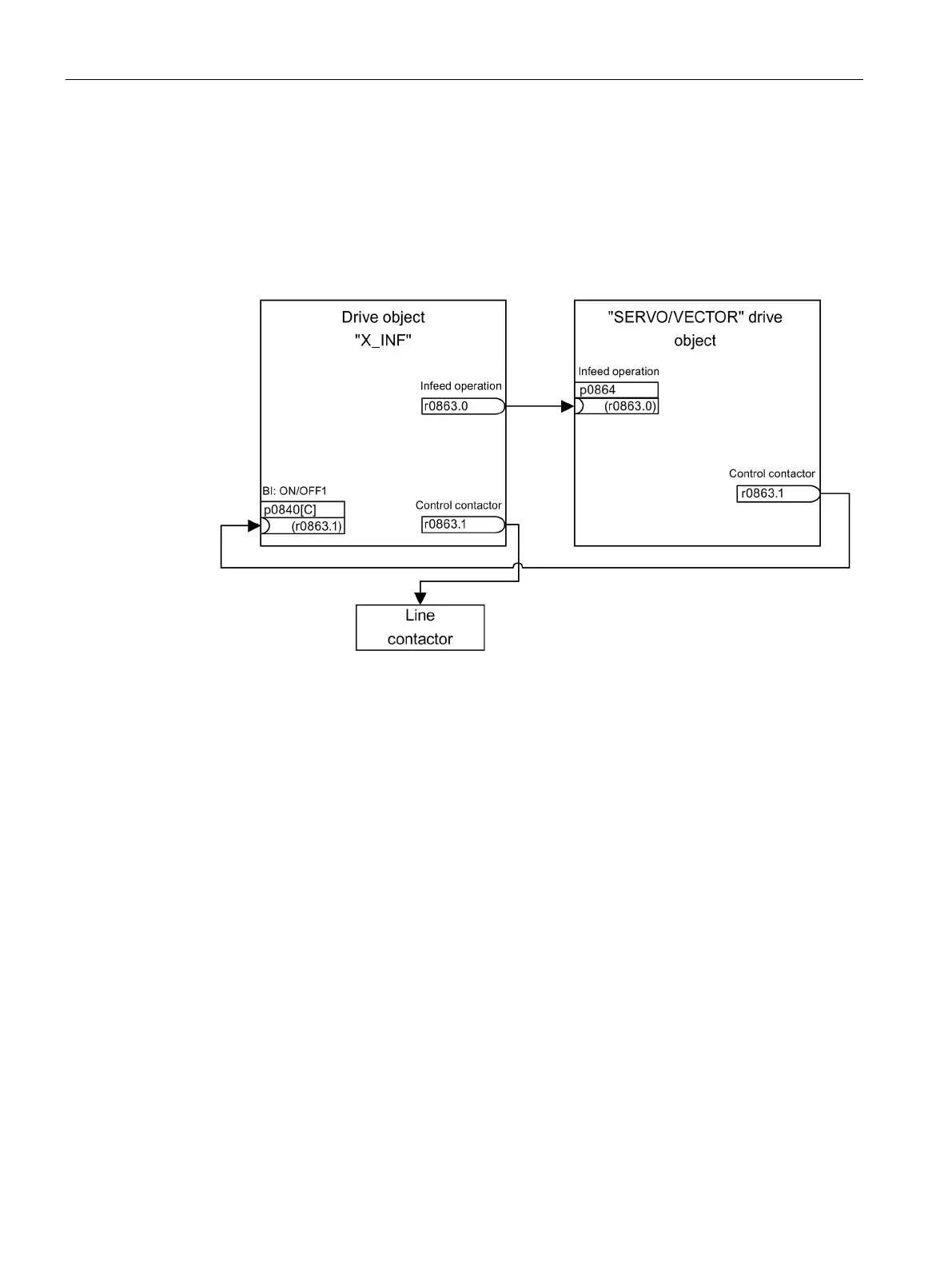

Figure 12-1 BICO interconnection: Switching on an infeed by a drive
