Commissioning
4.15 Overviews
Hydraulic Drive
76 System Manual, 04/2015, 6SL3097-4BA00-0BP1
Overview of the reference variables/function modules
The reference variables and activated function modules are displayed in the reference
variable and function module overview.

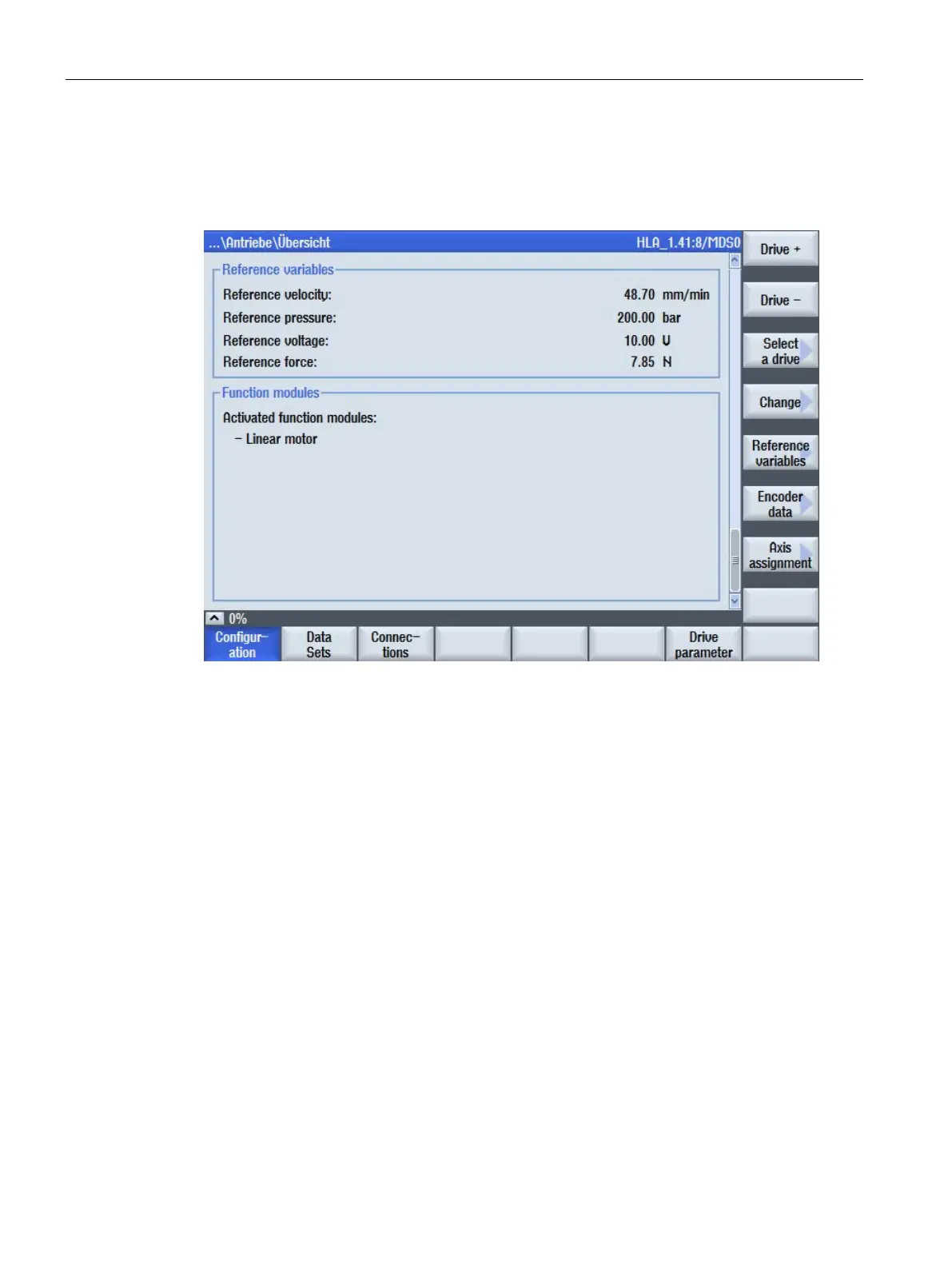

Figure 4-19 Overview of the reference variables/function modules
Note the following:
ā Create additional data sets with the "Data sets" softkey. The reference variables are not
recalculated when creating additional drive data sets. The reference variables are locked
using parameter p0573.
ā A license is required for certain function modules (ā "Licenses" ā "All options").
