Commissioning
4.6 Basic parameterization of the drive objects
Commissioning with Startdrive
114 Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
For the infeed, you can activate function modules as required. The function modules that can
be activated are listed in the "Function modules" screen form.

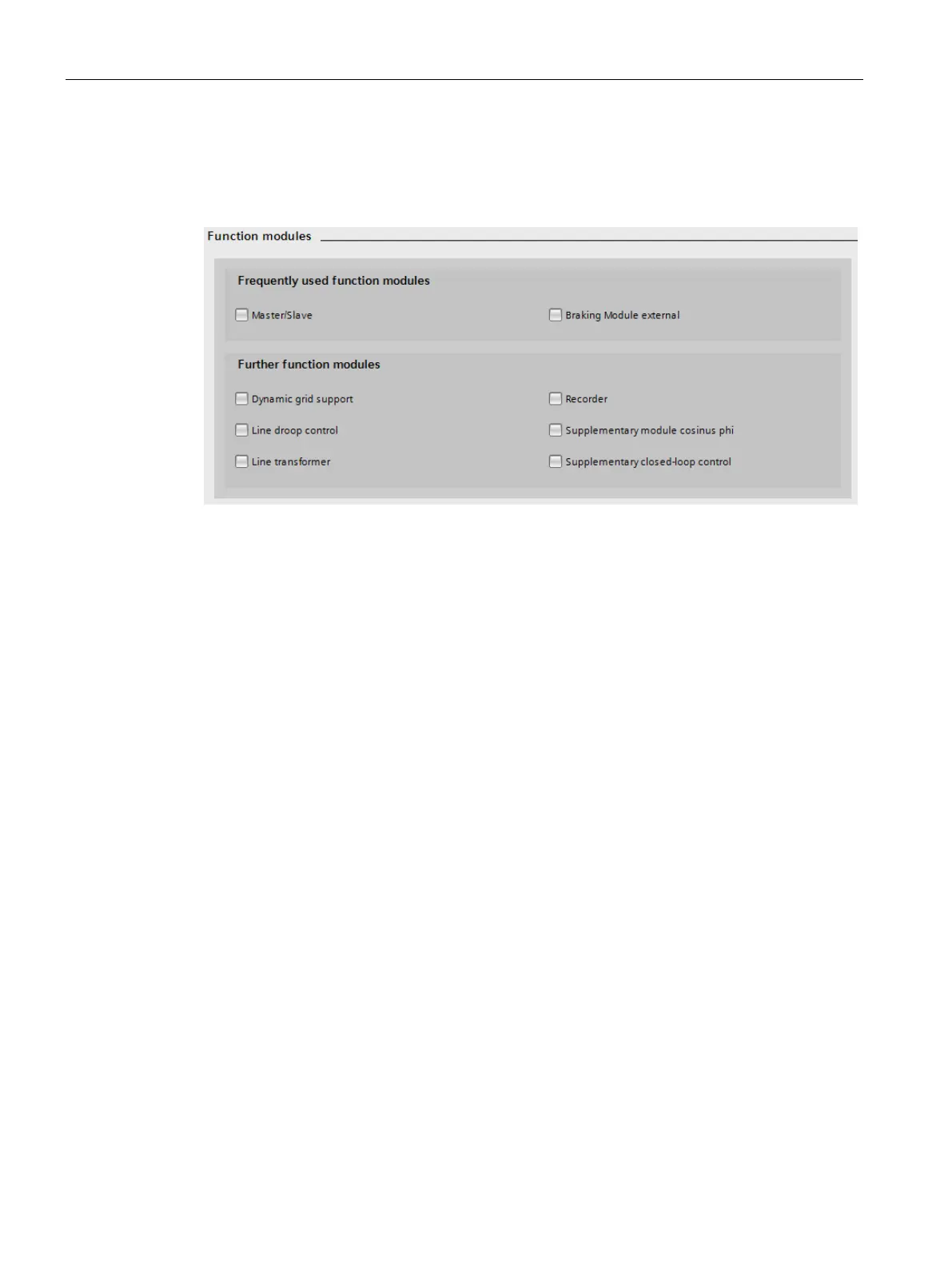

Figure 4-48 Function modules for infeed units
The function modules that can be used are presorted in 2 areas:
● Frequently used function modules
● Additional function modules
The display of the function modules that can be activated is dynamic and depends on the
selected infeed and the configuration of said infeed.
Activating function modules
1. Activate the required function module by clicking on the option.
Repeat this for all additional function modules that you wish to activate.
2. Save the project to backup the settings.
