Diagnostics
5.3 Diagnostics via Startdrive
Commissioning with Startdrive
Commissioning Manual, (IH3), 07/2016, 6SL3097-4AA10-0BP0
169
Online access status
Description
The "Online access" diagnostics indicates the current status of the online connection of the
drive device. The required information is provided here to establish an online connection
when problems occur.

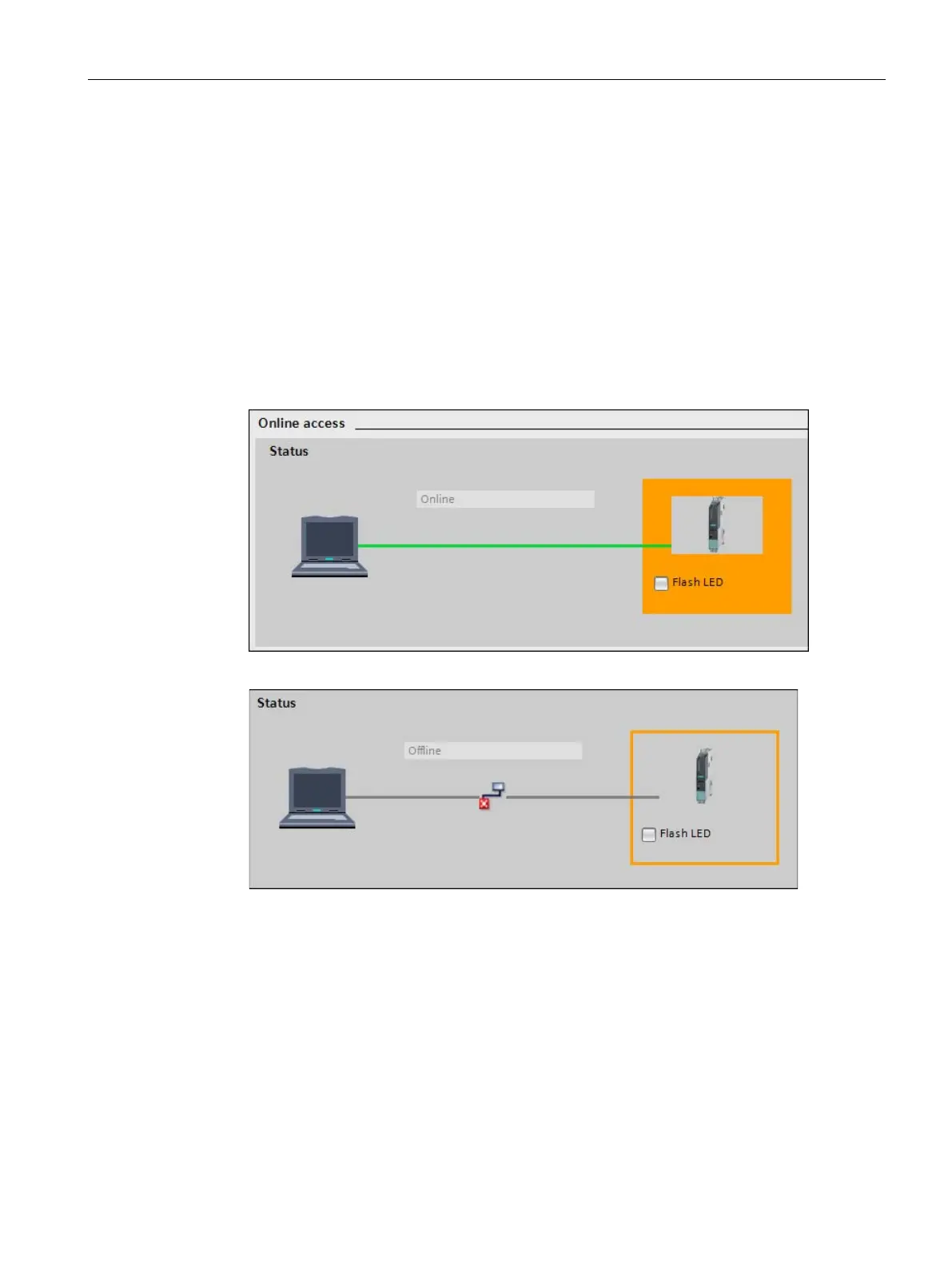

The status of the online connection is displayed here:
● An online connection is represented by a solid green line.
● An interrupted connection is represented by a gray line with interruption symbol.
"LED flashing" can be used to identify the device in the hardware configuration. This function
is only possible when the connected device supports "LED flashing" (refer to the device
description).
