2.2 Connections and terminal designation
SITOP PSU300S
10 Manual, 12.2016, C98130-A7587-A1-7-7629
2.2
Connections and terminal designation
The line input terminals ① can be used to establish the connection to supply voltage. The
output terminals
② are used to connect to the loads to be supplied (see also Section
Installation (Page 31)).
The operating state of the device can be processed via the signaling contact
④ (function
and contact rating, see Chapter Status displays and signaling (Page 13)).
Connections and terminal designations
①
line input L1, L2, L3, PE
One screw terminal each
②
Output +
2 screw terminals
②
Output –
2 screw terminals
④
signal 13, 14 (24 V O.K.)
One screw terminal each
*1) Do not subject the end stop to higher loads

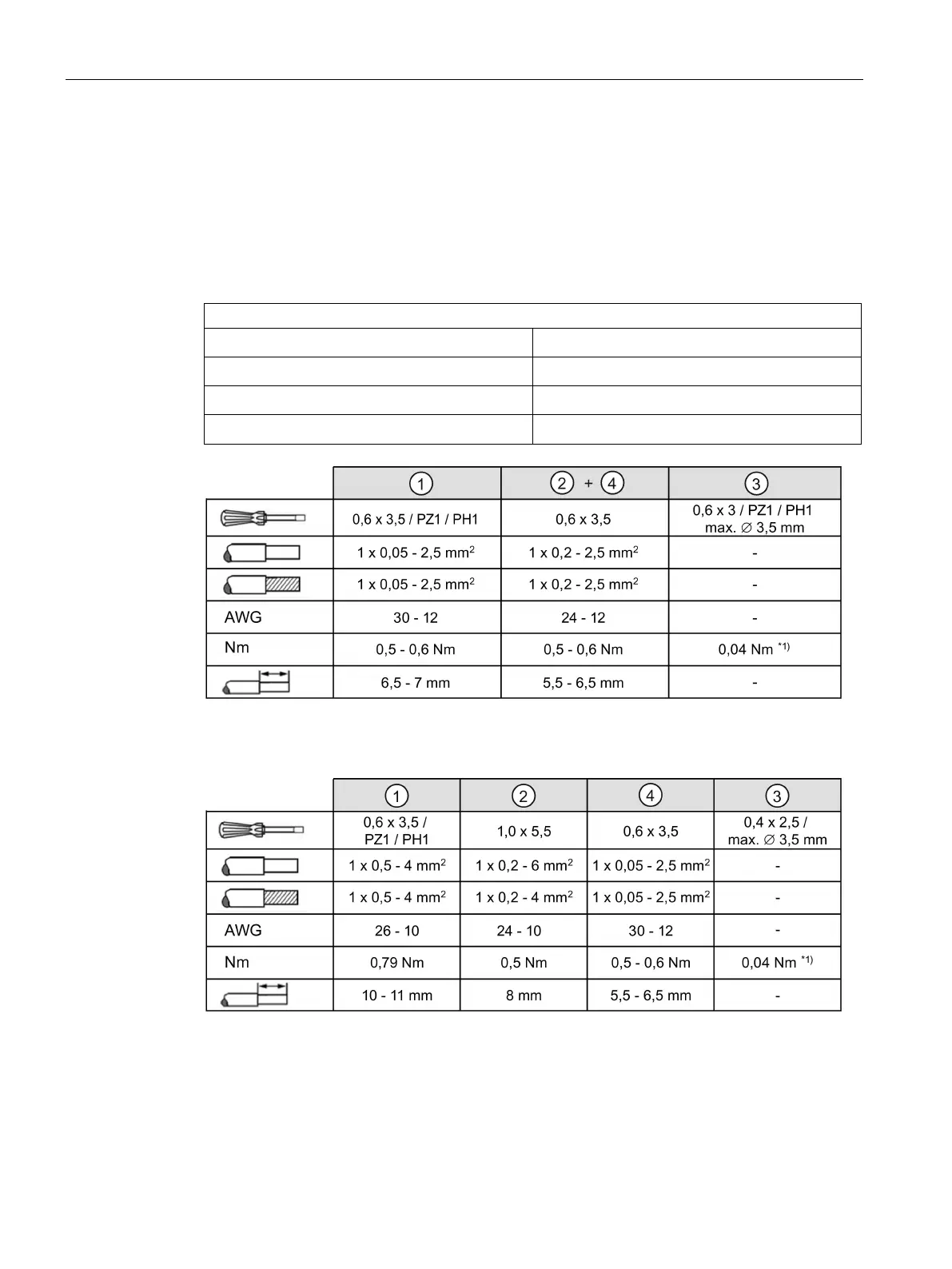

Figure 2-2 Terminal data for 6EP1433-2BA20 and 6EP1434-2BA20
*1) Do not subject the end stop to higher loads
Figure 2-3 Terminal data for 6EP1436-2BA10
