Siemens SITOP PSU8600 - Other Mounting Positions; Basic Device SITOP PSU8600 20 a

Mounting position, mounting clearances
5.2 Other mounting positions
Power supply system SITOP PSU8600
Manual, 09.2018, A5E36758446-5-76
145
5.2
Other mounting positions
For mounting positions that deviate from the standard mounting position, derating factors
(reduction of the output power or the permissible ambient temperature) must be observed in
accordance with the following diagrams.
Note
In the case of mount
ing positions that deviate from the standard mounting position, reduced
mechanical resistance of the devices against vibration and shock must be expected.
Particularly when installing on a vertically fastened standard mounting rail, additional
measures may
be required, e.g. to prevent the device from slipping on the standard
mounting rail.
5.2.1
Basic device SITOP PSU8600 20 A

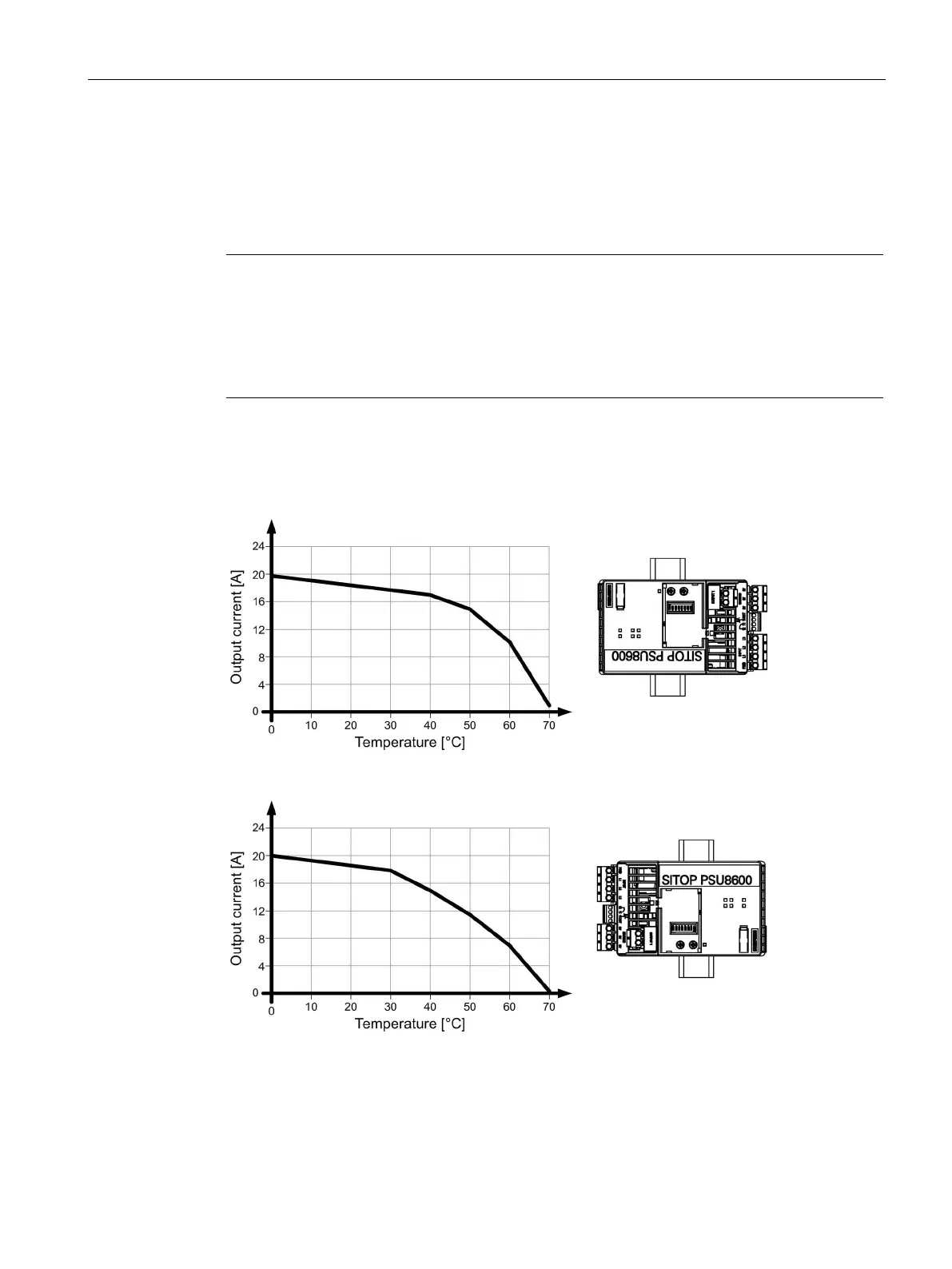

Figure 5-6 Mounting position 1
Figure 5-7 Mounting position 2
