Description
3.2Principle of operation
• Software version from 1.2.0

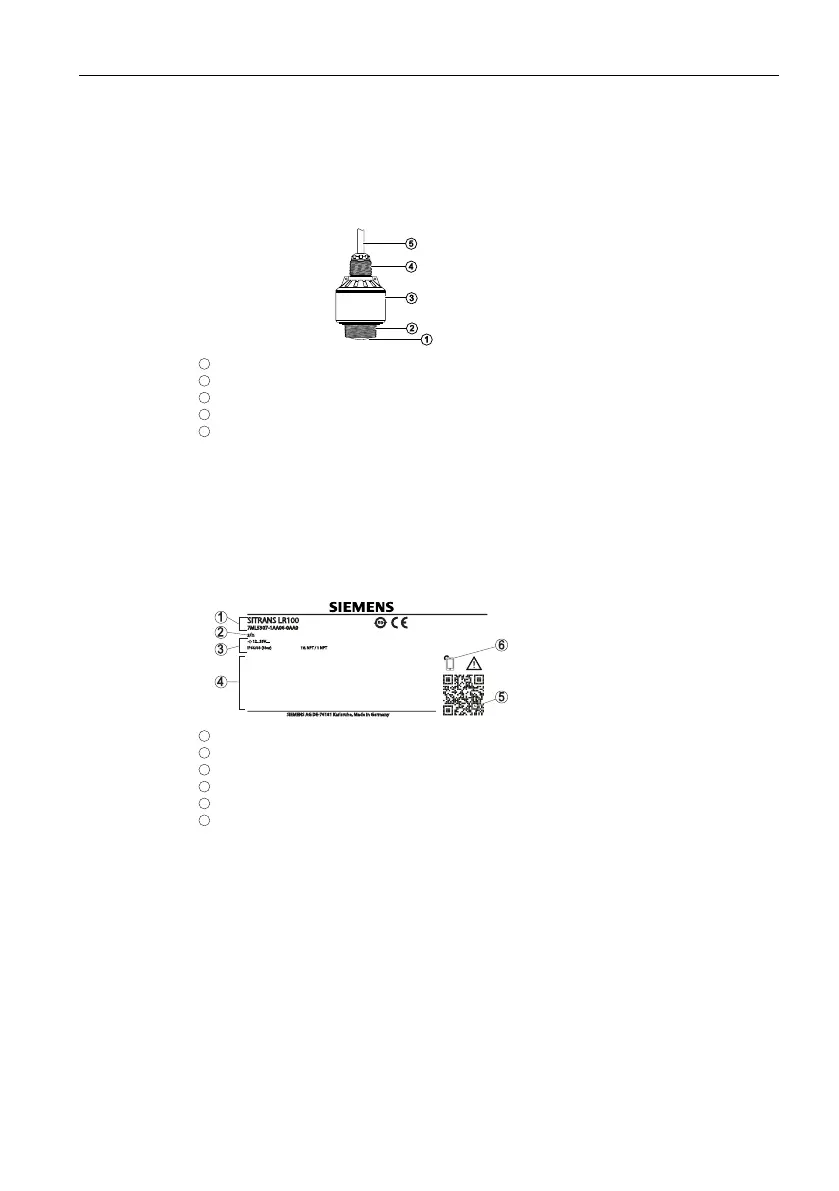

Constituent parts
1
Radar antenna
2
Process fitting
3
Electronics housing
4
Mounting thread
5
Connection cable
Figure3.1 Components of SITRANS LR100
Nameplate
The nameplate contains the most important data for identification and use of the
transmitter.
1
Instrument type
2
Serial number
3
Technical data
4
Field for approvals
5
QR code for device documentation
6
Wireless access via smart device
Figure3.2 Layout of the nameplate (example)
3.2 Principle of operation
Application area
SITRANS LR100 is a radar transmitter for non-contact, continuous level
measurement. It is suitable for liquids and solids in practically all industries.
8
SITRANS LR100
Operating Instructions, 10/2021, 62705-76-01
