Commissioning
5.6 Operation status
SITRANS LU150
24 Operating Instructions, 03/2016, A5E34590123-AB

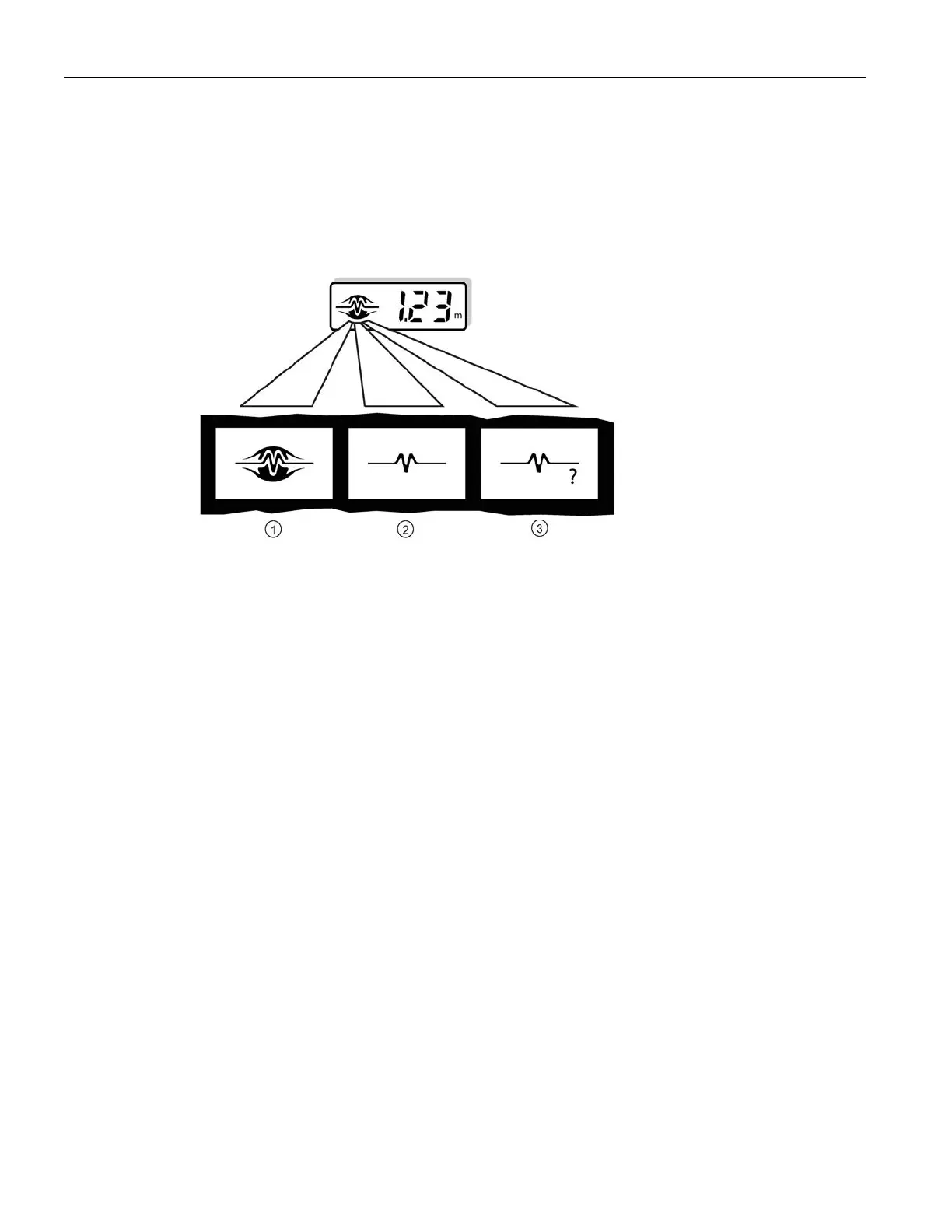

The graphic portion of the display gives the user a visual indication of the SITRANS LU150
operating status. During commissioning, viewing the graphic can assist the user in properly
locating and installing the unit to achieve optimum performance.
The graphic will change from full to partial to indicate operation status. After the 'Waiting' period,
the '?' icon will appear for an 'LOE / FAULT' indication. When a valid echo is again received, a
'Good' indication will resume. Refer to Troubleshooting (Page 33).
