Signature EZ Connect 8250 Series User Manual

8250 Series Controller Internet Connections

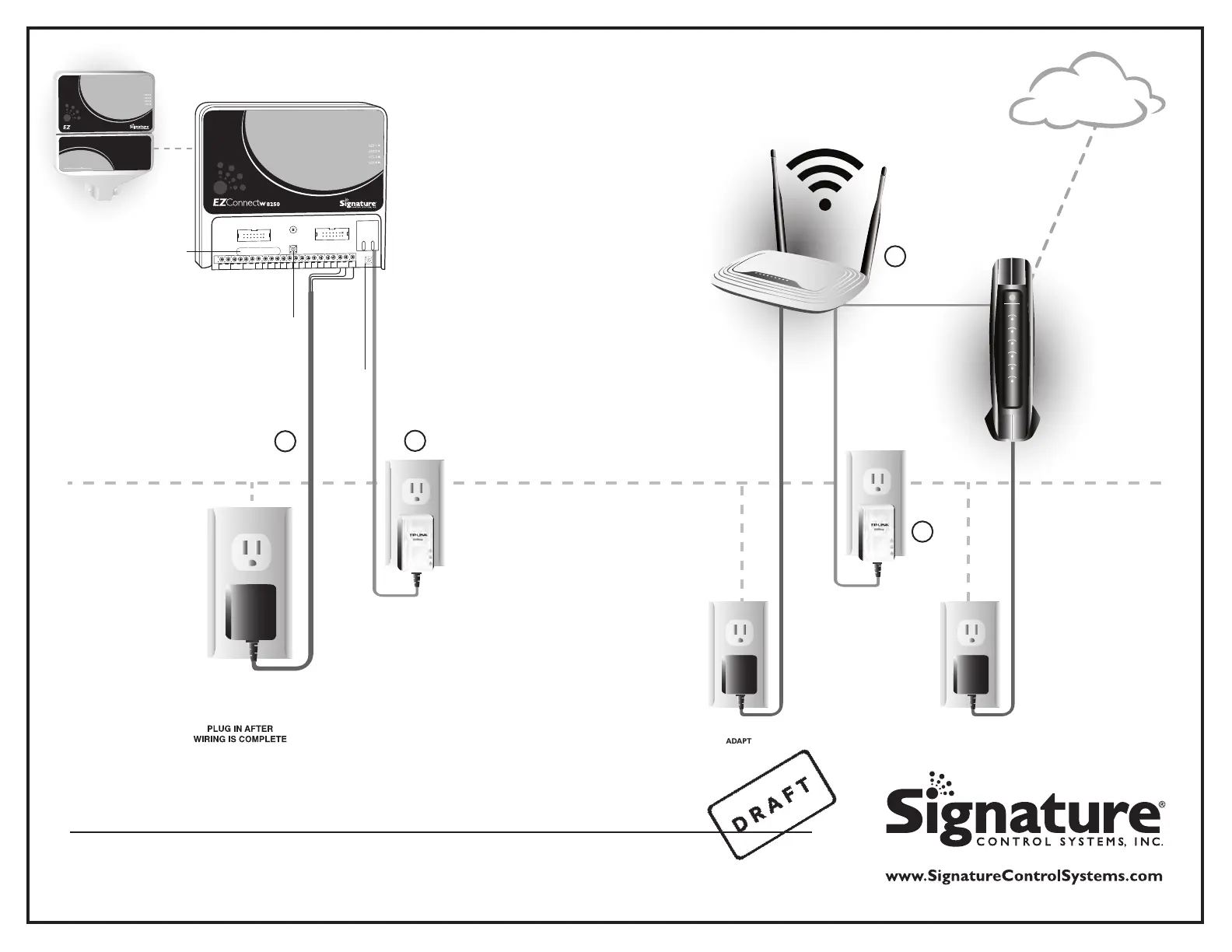

Power Line Network
Powerline adapter takes advantage of your home's existing
electrical wires to transfer data while simultaneously
transferring traditional power. That means, with no additional
wiring required, users can simply plug the powerline adapter
into existing power sockets and instantly establish a
networking infrastructure. With high-speed data transfer rates
of up to 200Mbps, users can enjoy HD video streaming,
online gaming, VoIP or any other bandwidth intensive
ROUTER
AC ADAPTORS
POWERLINE
ADAPTOR
MASTER
(DIRECT TO WALL PLUG)
HOME'S EXISTING POWER WIRING
HOME WIFI
ROUTER
INTERNET
1
2
CONTROLLER
AC ADAPTORS
POWERLINE
ADAPTOR
SLAVE
3
4
ConnectConnect
S1 S2 1 2 3 4 5 6 7 8
9
10 11 12 24VAC
GND
COM PMP
MAC ID LOCATED HERE
XX:XX:XX:XX:XX:XX
MANUAL SWITCH
RESET BUTTON
(ON THE BACK
OF THE BOARD)
CABLE MODEM
AC ADAPTORS
CABLE
MODEM
