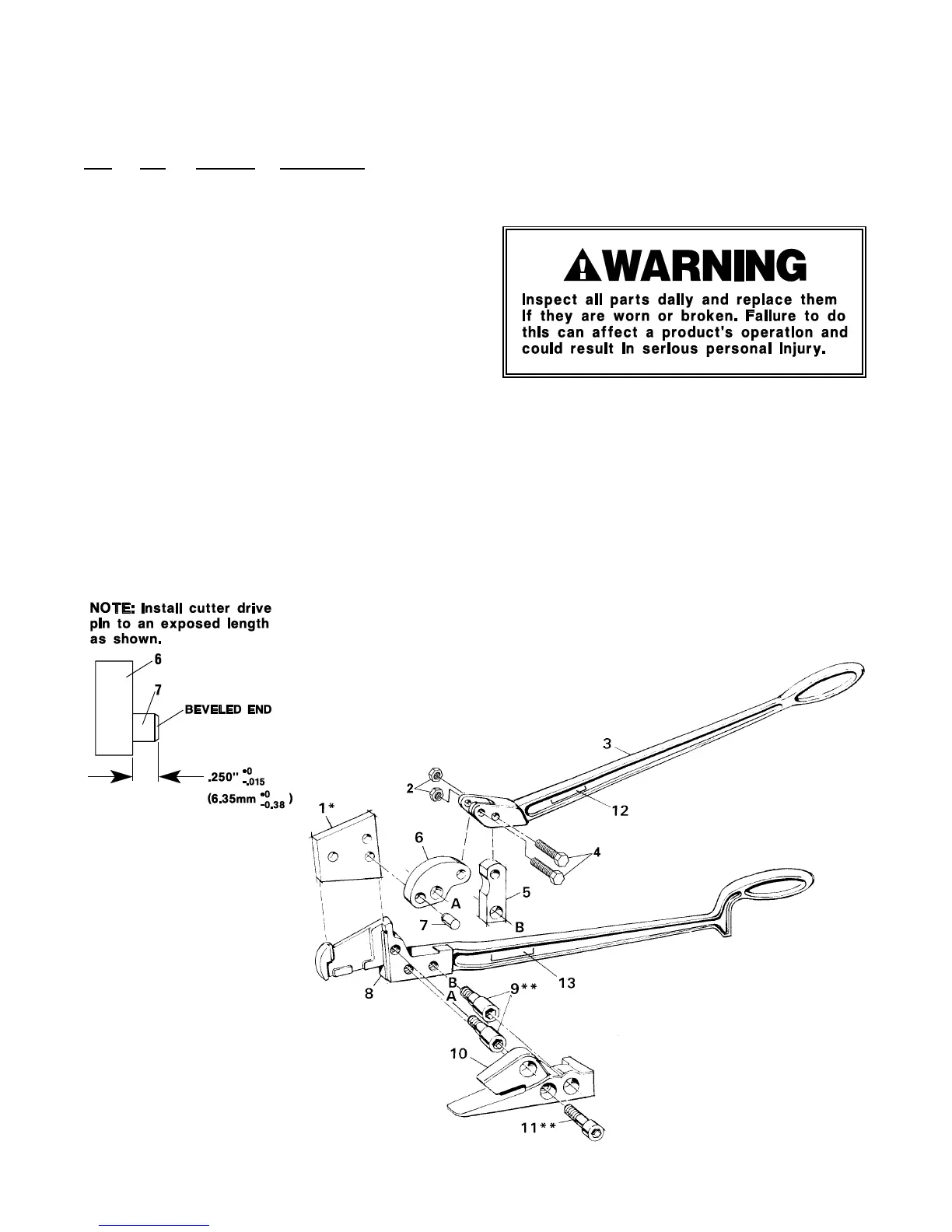

CU-25 PARTS LIST
Key Qty Part No. Description
1* 1 005744 Top cutter blade
2 2 003911 Thin flex-loc nut
3 1 005742 Top handle
4** 2 005753 HHCS (Bolt)
5 1 005745 Handle link
6 1 005746 Cutter lever
7 1 005748 Cutter drive pin
8 1 005741 Bottom handle
9** 2 005747 Cutter lever bolt
10 1 005743 Bottom cutter blade
11** 1 005749 L. H. Bolt
12 1 003133 Danger sign
13 1 262173 Nameplate
* Can be reversed when worn.
** Use Loctite #271 on threads only.
When ordering parts, please show tool model, part number and name.
Wearing parts are underlined and should be stocked. Common hardware parts may obtained at any local
hardware supply.
