10

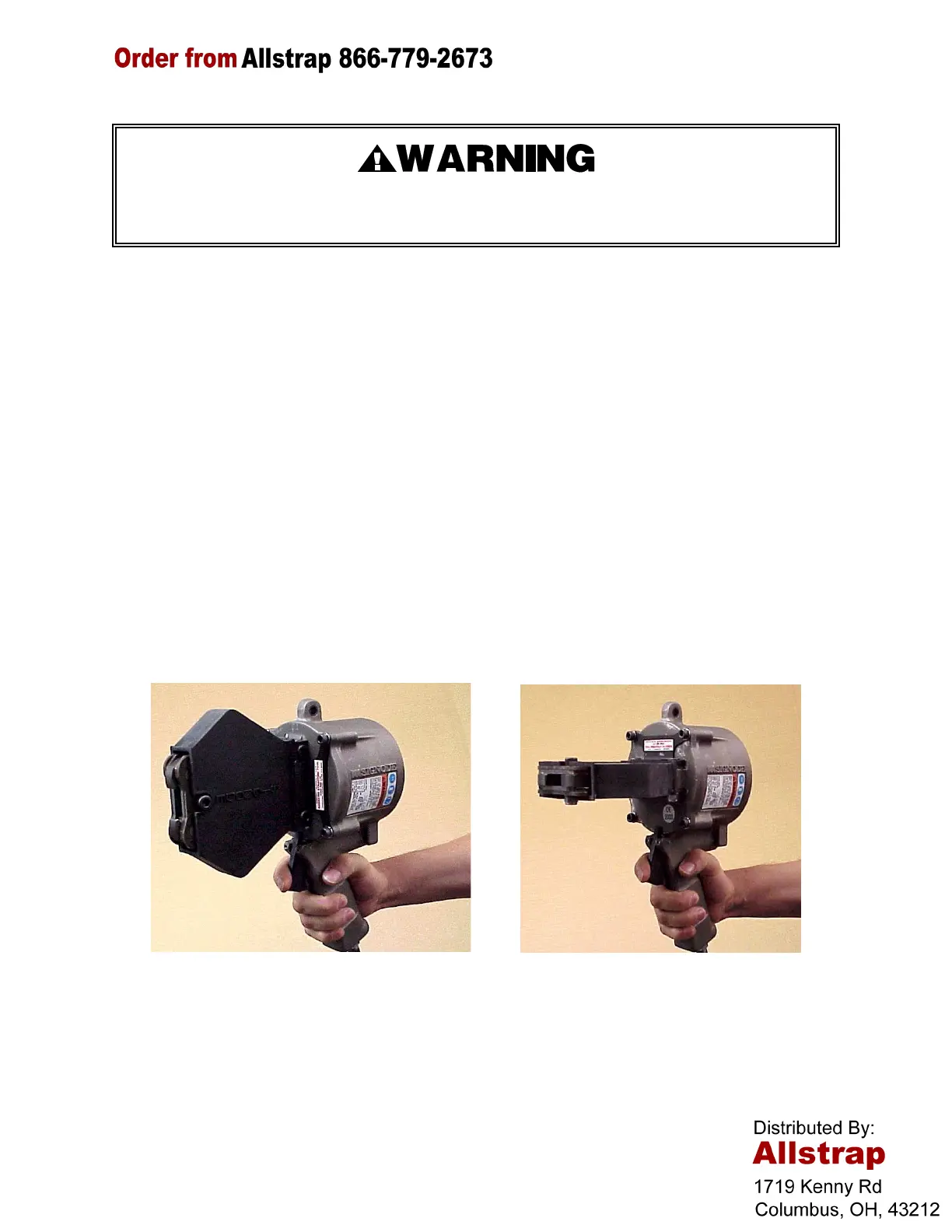

VERTICAL STRAPPING
HORIZONTAL STRAPPING
SEALER JAW ROTATION
Disconnect the pneumatic connection to the tool when performing jaw rotation procedure.
Failure to do so could result in serious personal injury.
The cylinder and mounting plate can be rotated to allow the operator to hold the tool in the normal
vertical position while sealing either horizontal or vertical strap. To do this refer to the exploded
views shown on pages 13 and 15 using the following instruction:
2. Loosen the set screw (Key 56) and remove the trigger (Key 57) and pin (Key 55).
3. Remove the four socket head cap screws (Key 73) which secure the mounting plate (Key 1) to
the cylinder (Key 51).
NOTE: Removing the four mounting screws will release the boot clamp (Key 70). The boot
clamp must be reinstalled when replacing the screws.
4. Pull the sealer mechanism and mounting plate out from the cylinder just enough for the
mounting plate to clear the trigger’s pivot on the cylinder handle.
5. Rotate the sealer mechanism and mounting plate 90° and reinstall back into the cylinder.
Securely tighten all four mounting screws.
6. Reassemble the trigger back into the cylinder handle and securely tighten the set screw.
NOTE: This tool has metric fasteners.
NOTE: OPERATOR GLOVES OMITTED FOR CLARITY PURPOSES ONLY!
