PNEUMATIC INFORMATION
AIR SUPPLY INSTALLATION
If compressor has a good dryer unit, use black pickled pipe. When a dryer unit is not installed, use
galvanized or copper pipe. To perform reliably, a pneumatic tool requires a continuous source of
clean, water-free air at adequate pressure.
Never operate this tool using a bottled air or gas source.
Bottled air/gas sources do not provide consistant operating pressure
and could result in air pressures that exceed the maximum allowed.

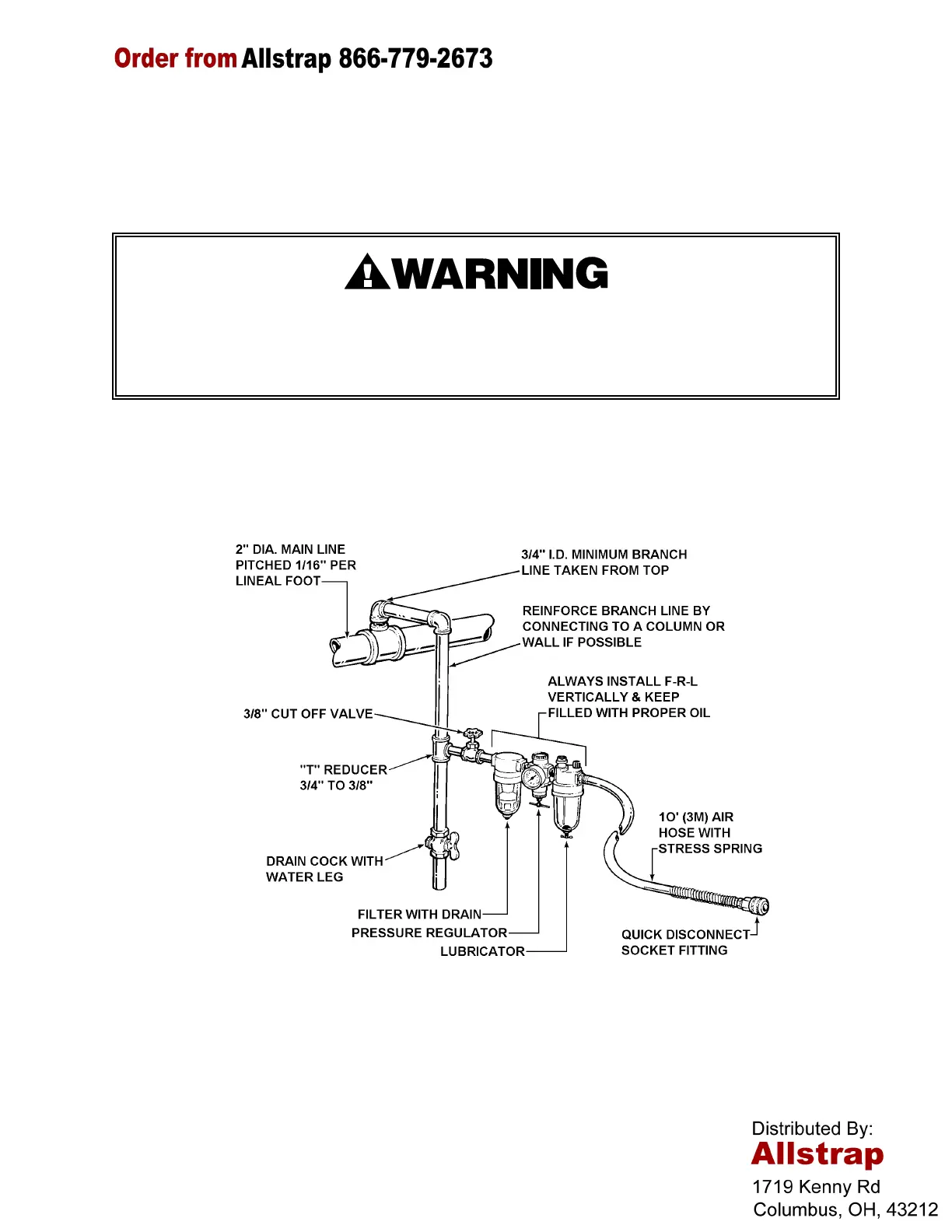

A filter-regulator-lubricator unit (Signode Part No. 008559) must be installed as close to the air tool
as possible, preferably within 10 feet. It should be placed in a convenient location where it can
easily be drained, adjusted, and filled with oil. The air hose must have at least a 3/8" I.D. A quick-
connect press-on socket is installed on the stress spring end of the hose for convenient hookup to
the air tool.
Filter and lubricator bowls are made of polycarbonate material. Do not install where bowls may be
exposed to materials incompatible with polycarbonate. Certain oils, solvents, and chemicals or
their fumes can weaken these bowls and possibly cause them to burst. Clean only with warm
water. A cut-off valve placed ahead of the filter will be useful when cleaning the filter or
replenishing the lubricator.
