This document provides wiring diagrams for various Silent Gliss motor systems, specifically focusing on models 5190, 5192, and 5193. The diagrams illustrate how to connect these motors for different configurations, including single and multiple motor setups, and different control methods.

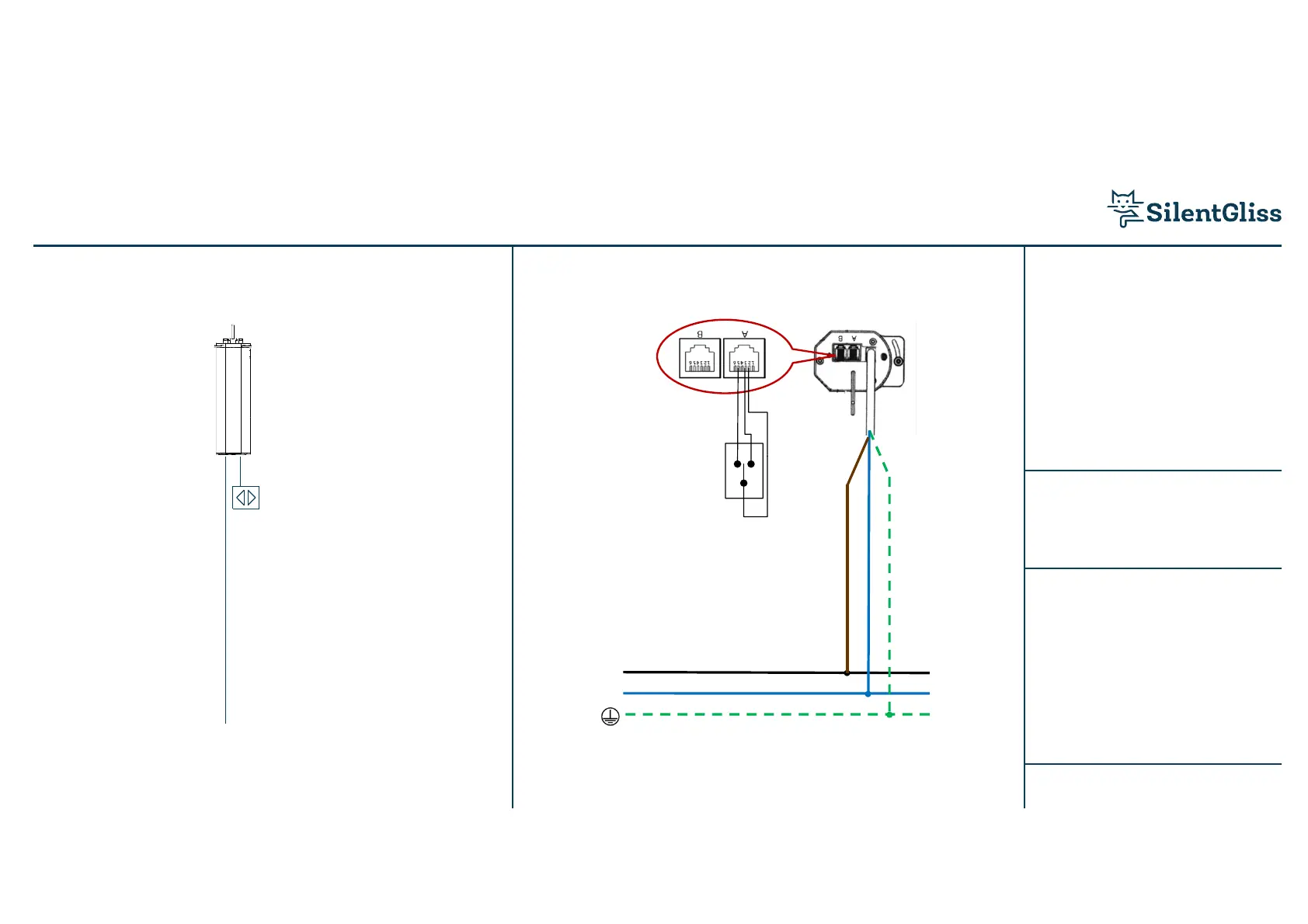

Silent Gliss 5190 Motor (Dry Contact Switching)

The Silent Gliss 5190 motor is designed for dry contact switching, operating on 110-220V AC.

Function Description: This motor is controlled by a dry contact switch, allowing for open/close functionality. It is suitable for single motor installations where a simple switch control is desired. The system can also be expanded for additional control via radio.

Important Technical Specifications:

Power Supply: 110-220V AC
Control Method: Dry contact switch for open/close operation.
Connections: Plug A + B = RJ 12 for switch connections.
Wiring:
- L (Live) and N (Neutral) for power input.
- L1 (Brown) and Neutral (Blue) for motor connection.
- Earth connection for safety.
- Switch connections are typically wired to terminals 2 and 3 on the motor's internal switch block.

Usage Features:

Single Motor Control: Designed for controlling one motor with a single switch.
Simple Operation: Open/close functionality via a dry contact switch.
Expandability: Additional control options, such as radio control, are possible.

Maintenance Features:

Safety First: Always connect protective earth.
Documentation: Refer to safety instructions in the installation and user manual.

Silent Gliss 5190 Multiple Motors (Dry Contact Switching)

This configuration extends the dry contact switching principle to multiple Silent Gliss 5190 motors.

Function Description: Multiple 5190 motors can be controlled simultaneously using multiple non-latching dry contact switches. This setup allows for synchronized open/close operation of several motors from a single control point. Additional control via radio is also possible.

Important Technical Specifications:

Power Supply: 110-220V AC.
Control Method: Multiple non-latching dry contact switches for open/close operation.
Connections: Plug A + B = RJ 12 for switch connections on each motor.
Wiring:
- Common L (Live) and N (Neutral) power input for all motors.
- Each motor connects to L1 (Brown), Neutral (Blue), and Earth.
- Switch connections are typically wired to terminals 2 and 3 on each motor's internal switch block, with common connections for the switches.
- The switches are wired in parallel to control all motors simultaneously.

Usage Features:

Multi-Motor Control: Synchronized control of several motors.
Flexible Switching: Utilizes multiple non-latching switches for operation.
Expandability: Supports additional control via radio.

Maintenance Features:

Safety First: Always connect protective earth for all motors.
Documentation: Always read safety instructions in the installation and user manual.

Silent Gliss 5192 Motor (24VDC Power with Dry Contact Switching)

The Silent Gliss 5192 motor operates on 24V DC power and uses dry contact switching.

Function Description: This motor requires an external 24V DC power supply. It is controlled by a dry contact switch for open/close functionality, similar to the AC versions, but with the added benefit of low voltage operation for the motor itself.

Important Technical Specifications:

Motor Type: Only Motor SG 5192.
Power Supply (Motor): Regulated 24V DC, minimum 4 Ampere, supplied by an external power supply (e.g., SG 10942).
Power Supply (External Unit): Input 100-250 VAC for the external power supply.
Control Method: Dry contact switch for open/close operation.
Connections: Plug A + B = RJ 12 for switch connections.
Wiring:
- 110-220V AC input to the external power supply.
- The external power supply outputs 24V DC to the motor.
- L1 (Brown) and Neutral (Blue) from the power supply connect to the motor.
- Earth connection for safety.
- Switch connections are typically wired to terminals 2 and 3 on the motor's internal switch block.

Usage Features:

Low Voltage Operation: Motor operates on 24V DC, which can be advantageous for certain installations.
Single Motor Control: Designed for controlling one motor with a single switch.
Simple Operation: Open/close functionality via a dry contact switch.

Maintenance Features:

Safety First: Always connect protective earth for the external power supply.
Documentation: Always read safety instructions in the installation and user manual.

Silent Gliss 5192 Multiple Motors (24VDC Power with Dry Contact Switching)

This configuration applies the 24V DC dry contact switching to multiple Silent Gliss 5192 motors.

Function Description: Multiple 5192 motors, each powered by its own external 24V DC power supply, can be controlled simultaneously using multiple non-latching dry contact switches. This setup allows for synchronized open/close operation of several low-voltage motors. Additional control via radio is also possible.

Important Technical Specifications:

Motor Type: Only Motor SG 5192.
Power Supply (Motor): Each motor requires a regulated 24V DC, minimum 4 Ampere, supplied by an external power supply (e.g., SG 10942).
Power Supply (External Unit): Input 100-250 VAC for each external power supply.
Control Method: Multiple non-latching dry contact switches for open/close operation.
Connections: Plug A + B = RJ 12 for switch connections on each motor.
Wiring:
- Common 110-220V AC input to all external power supplies.
- Each external power supply outputs 24V DC to its respective motor.
- Each motor connects to L1 (Brown), Neutral (Blue), and Earth from its power supply.
- Switch connections are typically wired to terminals 2 and 3 on each motor's internal switch block, with common connections for the switches.
- The switches are wired in parallel to control all motors simultaneously.

Usage Features:

Low Voltage Operation: All motors operate on 24V DC.
Multi-Motor Control: Synchronized control of several motors.
Flexible Switching: Utilizes multiple non-latching switches for operation.
Expandability: Supports additional control via radio.

Maintenance Features:

Safety First: Always connect protective earth for all external power supplies.
Documentation: Always read safety instructions in the installation and user manual.

Silent Gliss 5193 Motor (Main Voltage Switching)

The Silent Gliss 5193 motor is designed for main voltage switching.

Function Description: This motor is controlled directly by switching the main voltage, allowing for open/close functionality. It is suitable for single motor installations where direct main voltage control is preferred.

Important Technical Specifications:

Power Supply: 110-220V AC.
Control Method: Main voltage switch for open/close operation.
Connections: Pre-wired plug (e.g., Hirschmann STAS3) for power and switch connections.
Wiring:
- L (Live) and N (Neutral) for power input.
- L1 (Brown) and L2 (Black) for motor connection from the switch.
- Neutral (Blue) and Earth connections.
- The switch directly controls the main voltage supply to the motor.
Notes: Low Voltage connectors on this motor have no functionality.

Usage Features:

Single Motor Control: Designed for controlling one motor with a single main voltage switch.
Direct Main Voltage Control: Simplifies wiring in some scenarios by directly switching the power.

Maintenance Features:

Safety First: Always connect protective earth.
Documentation: Always read safety instructions in the installation and user manual.

Silent Gliss 5193 Multiple Motors (Main Switching)

This configuration extends the main voltage switching principle to multiple Silent Gliss 5193 motors.

Function Description: Up to three Silent Gliss 5193 motors can be controlled simultaneously using a single main voltage switch. This setup allows for synchronized open/close operation of multiple motors by directly switching their main power supply.

Important Technical Specifications:

Power Supply: 110-220V AC.
Number of Motors: Up to 3 motors.
Control Method: One main voltage switch for open/close operation of all connected motors.
Connections: Each motor uses a pre-wired plug (e.g., Hirschmann STAS3) for power and switch connections.
Wiring:
- Common L (Live) and N (Neutral) power input for all motors.
- Each motor connects to L1 (Brown), L2 (Black), Neutral (Blue), and Earth.
- The main voltage switch controls the common Live line to all motors.
Calculation: 2.5 Ampere per Motor. The total motor current must be below the switch/fuse current rating.
Notes: Low Voltage connectors on these motors have no functionality.

Usage Features:

Multi-Motor Control: Synchronized control of up to three motors.
Direct Main Voltage Control: Simplifies wiring for multiple motors by using a single main switch.

Maintenance Features:

Safety First: Always connect protective earth for all motors.
Documentation: Always read safety instructions in the installation and user manual.
Current Management: Ensure the total current drawn by all motors does not exceed the switch/fuse capacity.
