Silma Compact 8 - Page 2

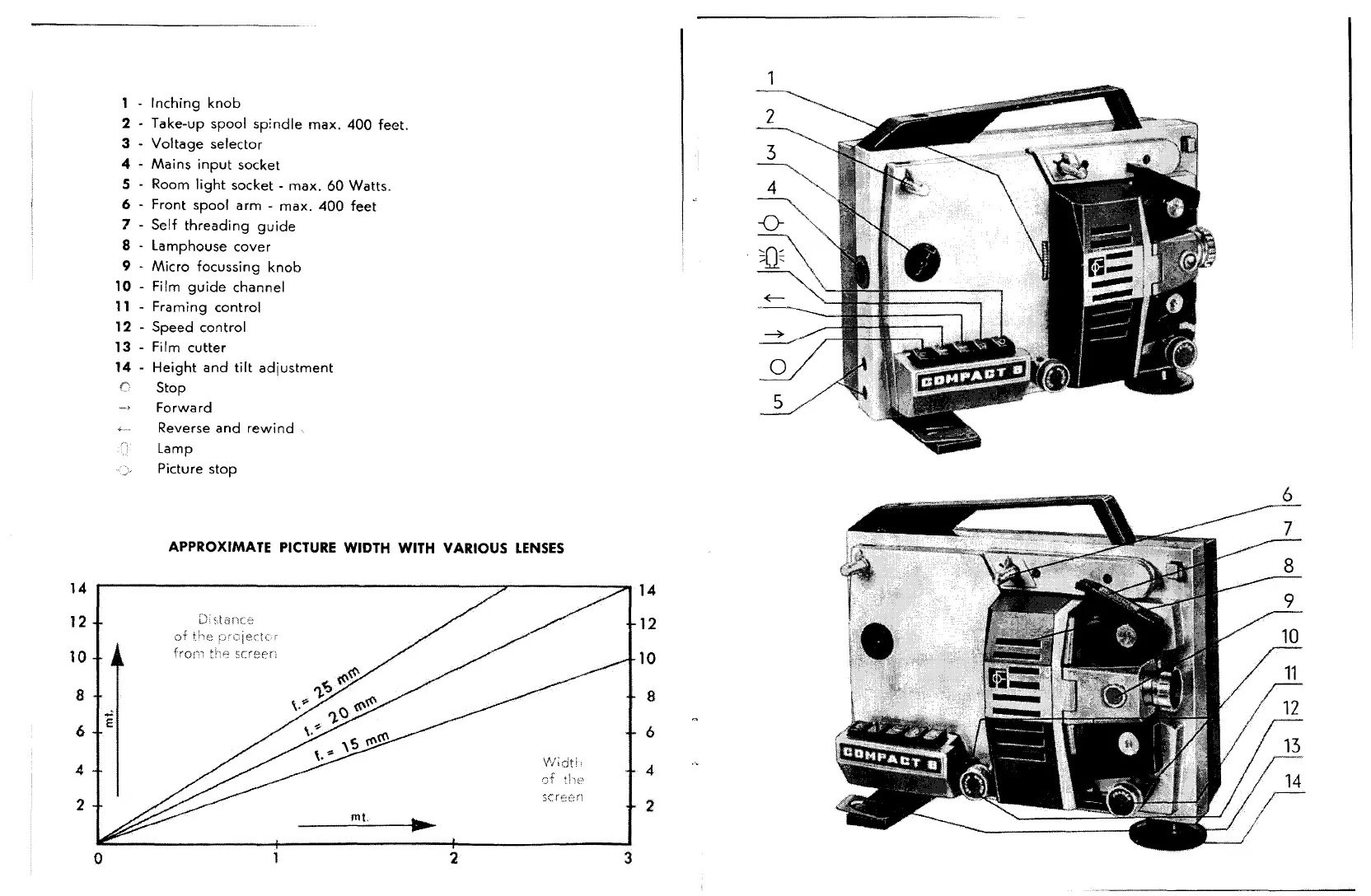

1 - Inching knob
2 - Take-up spool spindle max. 400 feet.
3 - Voltage selector
4 - Mains input socket
5 - Room light socket - max. 60 Watts.
6 - Front spool arm - max. 400 feet
1- Self threading guide
8 - lamphouse cover
9 - Micro focussing knob
10 - Film guide channel
11 - Framing control
12 - Speed control
13 - Film cutter
14 - Height and tilt adjustment
Stop
Forward
Reverse and rewind
lamp
Picture stop
14
12
10
8
6
E
4
2
0
14
12
10
8
6
4
2
3
0+ t.hf;
fron~ ti-·1~~ screen
