Silver Star LT-215 - Panel Operation and Settings; Front and Back Panel Controls; Function Code Settings; DMX Address Code Settings

Function code setting
DMX address code setting
Binary code
Address switch
Alogorism
Switch for DMX control mode.
The setting in the picture is signal
acceptable.
Address switch
Function
Music-mode
Audo-mode
Slave mode
Panel operation
POWER
SWITCH
DMX
OUTPUT
DMX
INPUT
Front panel
Back panel
2
1
3
4
6
5
7
8
9

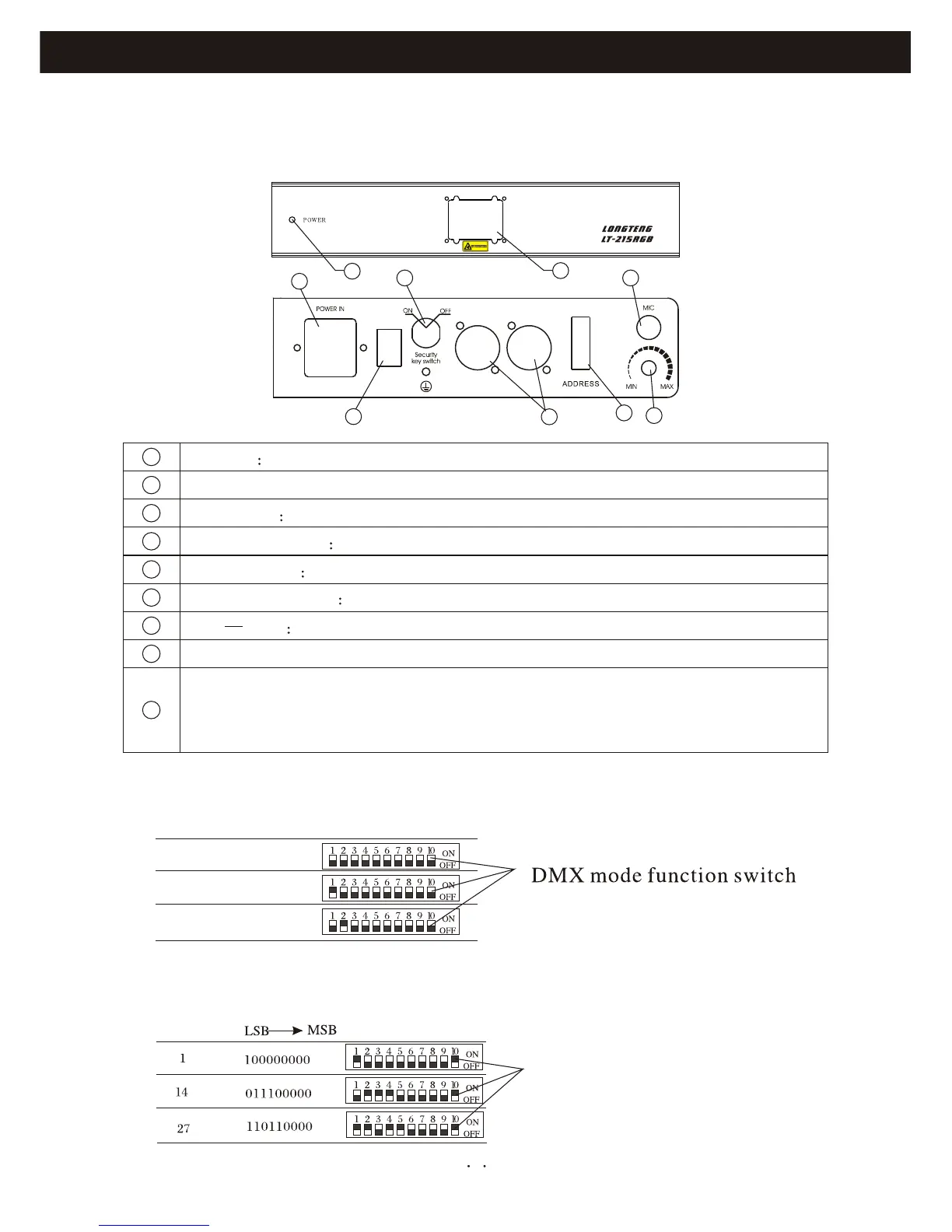

POWER Power LED
Beam out: Inset mirror
POWER In fuse inside
POWER ON/OFF Power switch
DMX IN/OUT DMX512 signal
Security key switch Switch on/off power
MIN MAX Potentiometer
MIC: Music receiver
1
2
3
4
5
6
7
8
9
ADDRESS: Address code switch. The 10th code is switch code. If the 10th code is
OFF, the 1-9 codes are function code. If the 10th code is ON, the fixture can be
controlled by DMX512 signal and other codes are DMX address codes.
