NEVER USE RIM WITH COVERPLATE REMOVED!

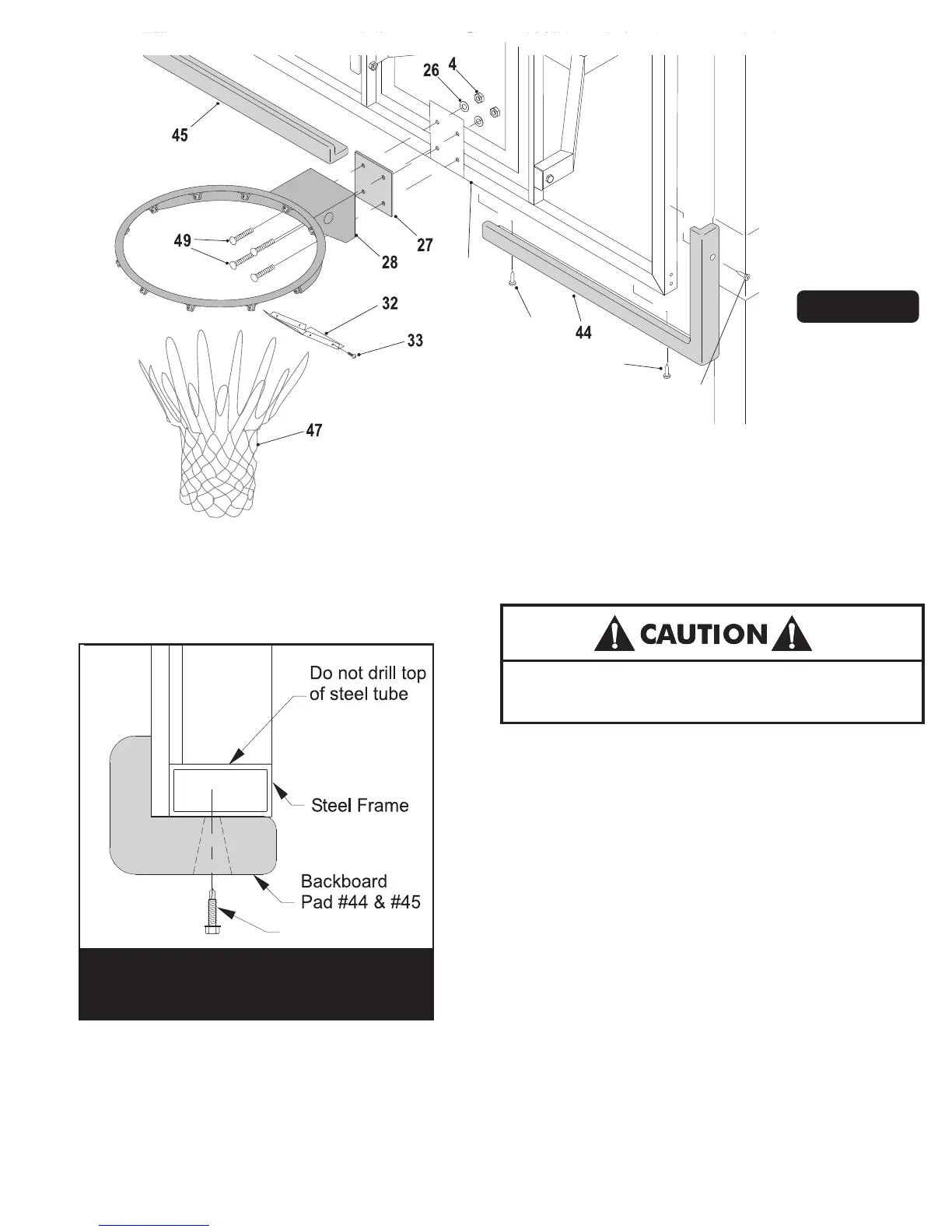

Figure 13
77
77
23
77
Screw #77
Detail A
Note: Make sure (#27) Rim
Pad is installed between Rim
(#28) and Backboard (#23)
17.
Note: Make sure (#27) Rim Pad is installed
between Rim (#28) and Backboard (#23)
Mount Goal Assembly (#28) and Rim Pad (#27) to
Backboard, as shown in Figure 13, using four bolts (#49),
four washers (#26), and four locknuts (#4). Tighten fasteners,
but leave them loose enough to level rim.
18. Place a level across rim assembly and adjust rim until it is
level. Finish tightening the four nuts.
19. Attach Rim Cover Plate (#32) using four screws (#33). See
Figure 13.
20. Check all nuts and bolts and make sure everything is
tightened properly.DO NOT over tighten pivot points,
snug is tight enough.
21. Use the Backboard Pads (#44) and (#45) as a template and
mark the hole locations on the backboard frame. See Figure
13 Detail Aand .
NEVER USE RIM WITH COVERPLATE REMOVED!
23. Secure Backboard Pads (#44) and (#45), as shown, using
screws (#77). Note: Tighten screws tight but, do not over
tighten.
22. Drill 9/64" pilot holes into steel backboard frame. See
Detail A. Do not drill through both sides of
backboard tube frame.
Note: Cordless drill recommended for screw installation.
Do not over tighten screws causing screws to strip.
Note: Screws (#42), used in step 22, are Self Drilling
screws and can be installed without drilling pilot holes.
However, it will be easier to install screws if you drill
9/64” pilot holes. WEAR SAFETY GLASSES if drilling holes.
Note: To install screws, it will be easier if you use a
cordless drill with 5/16” socket (instead of Phillips head).
