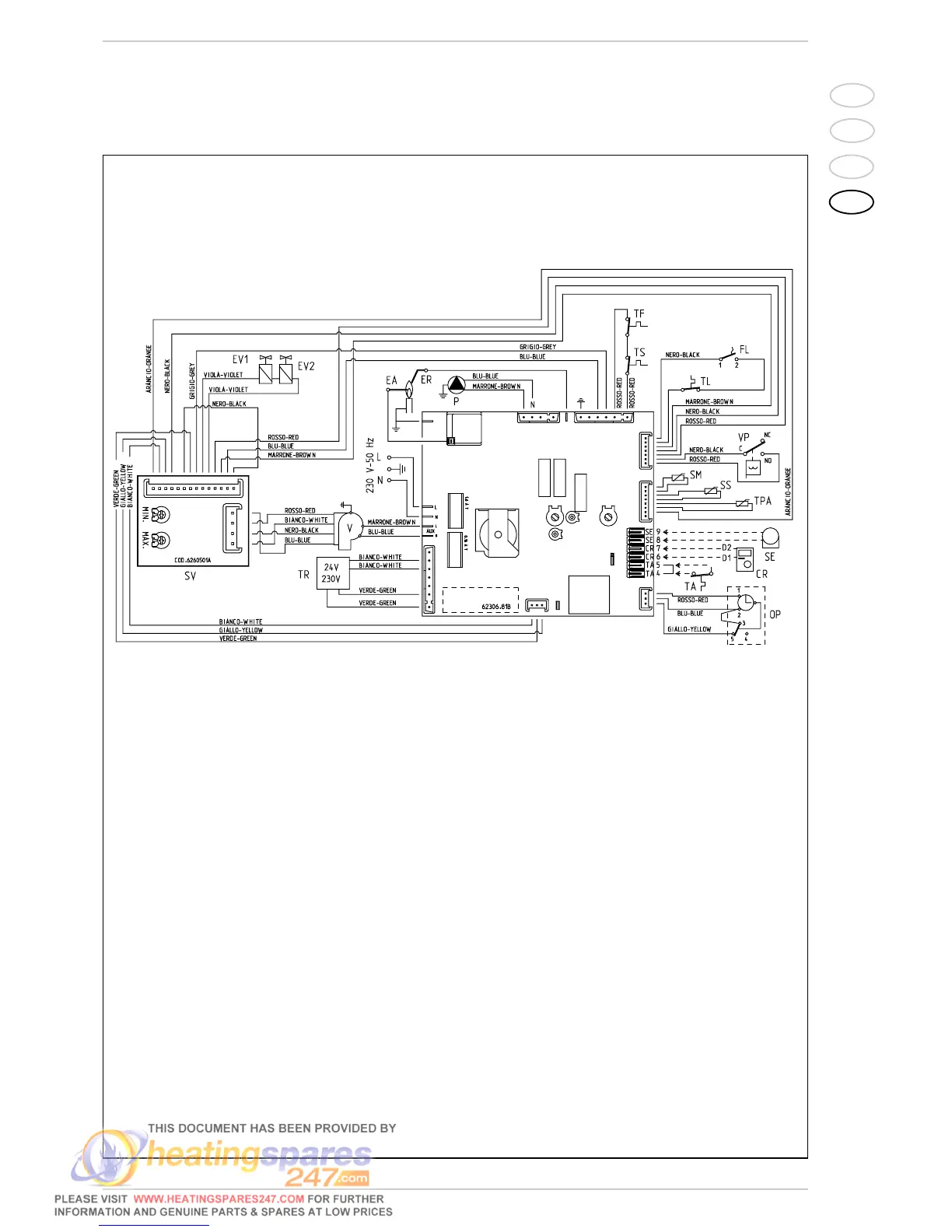

2.9.5 Wiring diagram “PLANET DEWY 25 BF - 30 BF”
KEY
EV1 Gas valve coil
EV2 Gas valve coil
EA Ignition electrode
ER Sensing electrode
TS 100°C safety stat
VFan
TPA Water pressure transducer
P Pump
VP Divertor valve
SE External sensor (optional)
TA Room stat
SM C.H. sensor (blue)
TL Limit stat
TR Transformer 230 - 24V
FL Flowmeter
SS D.H.W. sensor (red)
CR Logica Remote Control (optional)
SV Ventilator board
OP Time programmer
TF Smoke stat
Note: The room stat (TA) must be
connected to the terminals 4-5
CONNECTOR SPARE PART CODES:
J2 code 6260971
J3 code 6260993
J4 code 6260997
J5 code 6260994
J6 code 6278601
Fig. 16
