Sime FORMAT.zip 5 25 BF TS - Wiring diagram

77
IT
ES
PT
GB
CN6
CN2
CN7
KEY
F Fuse (1.6 AT)
PI C.H. pump
EV1-2 Gas valve coil
VFan
PF Smoke pressure switch
VP Divertor valve
M Modulator
SM C.H. sensor
TA Room stat
EAR Ignition/detection electrode
TRA Ignition transformer
TS 100°C safety stat
FL Flowmeter
OP Time programmer
Nota: The room stat or the chro-
nothermostat must be connected to
terminals 15-16 of the “TA” connector
after having removed the bridge.

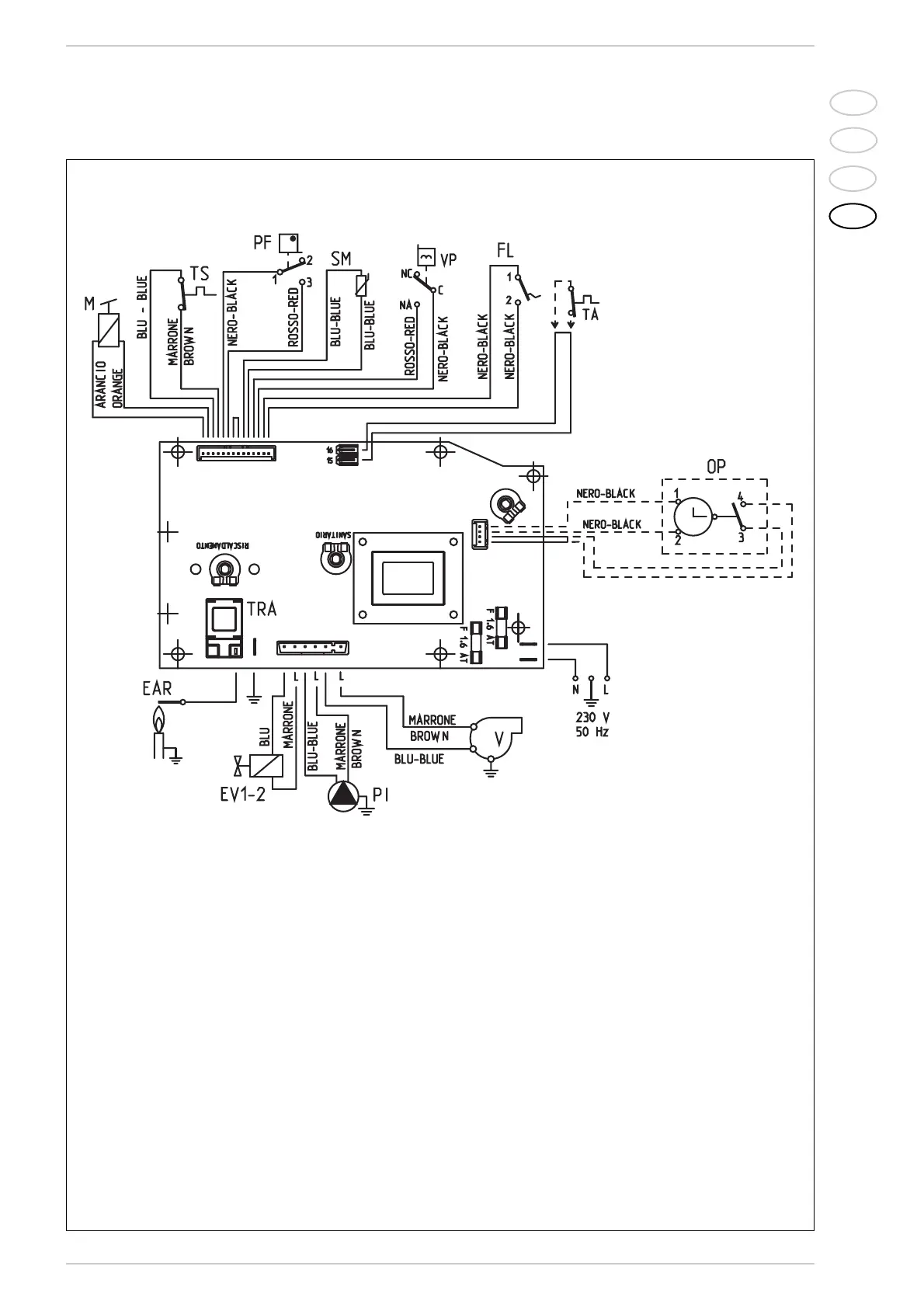

Fig. 13
2.11.3 Wiring diagram
CONNECTOR SPARE PART CODES:
CN2 code 6299909
CN6 code 6299906
CN7 code 6299907
